Lucy Zodion Triple Door Feeder Pillars – THM0241328

Lucy Zodion THM0241328 ➡ Contact Us For A Quote

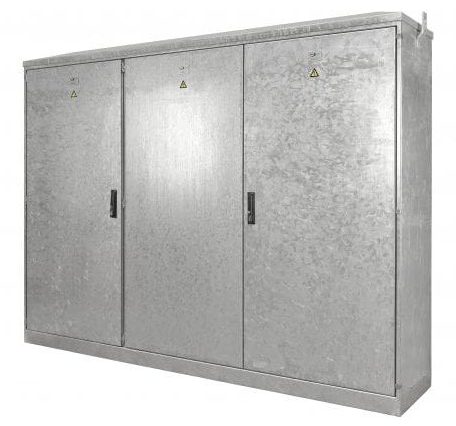

Lucy Zodion large triple door feeder pillars are manufactured from hot dipped galvanised steel (with optional painted versions) for many larger LV power applications including EV charging connections, EV super hubs and renewables.

The THM0241328 Lucy Zodion feeder pillar is available from the Fortress range.

The range of triple door feeder pillars are ideal for projects that require more space along with versatile, safe and durable housing for low voltage power distrbution. The triple door range of steel pillars are available in a range of sizes, materials and have many features to meet a number application types. The feeder pillar range has been designed with with a three door configuration and accessibility in mind, offering more space to suit your switchgear needs.

The large triple door feeder pillars feature new options to accommodate larger cables and metering options. The range now has a larger depth of 600mm and an increased height of 2 – 2.2 metres, along with a detachable roof section to aid on site installation.

➡ See The Full Range | Single Door Feeder Pillars | Double Door Feeder Pillars

LUCY ZODION THM0241328

Manufacturer: Lucy Zodion

Range: Fortress

Feeder Pillar Stock Code (3mm Galv) – Lucy Zodion Fortress Feeder Pillars THM0241328
Lucy Zodion Triple Door Feeder Pillar Size Code – 52
Root Section (R) – 380mm
Width (W) – 2850mm
Depth (D) – 600mm
Height (H) – 2200mm
Shell Thickness (mm) – 3mm
Backboard – 18mm Treated Exterior Grade Plywood

The Lucy THM0241328 pillar is supplied as standard in mild steel with hot dip galvanised material – this feeder pillar is also available painted grey, other colours available on request.

Applications

The ideal solution for many larger, low voltage applications including:

EV Charging connections
EV Super Hubs
Renewables
District Heating
Industrial

FEEDER PILLAR SPECIFICATION

Long life solid stainless steel hinge blocks on all versions
Three-point barlock fitted as standard (padlockable)
Backboard made from 18mm treated exterior grade plywood
Detachable roof with lifting hooks on pillar body
‘Danger’ warning label fitted in door recess
Detachable root section finished in bitumen enriched paint
Earth lead between pillar body and door
Door seal to IP65

Customer Service & Support | should you require technical support or guidance on the standards for installation of feeder pillars including cable access, sealing ducts, concrete foundation details, backfill procedure, cable pulling and wiring drawings – contact Thorne & Derrick.
