3M Separable Connectors

Separable Connectors

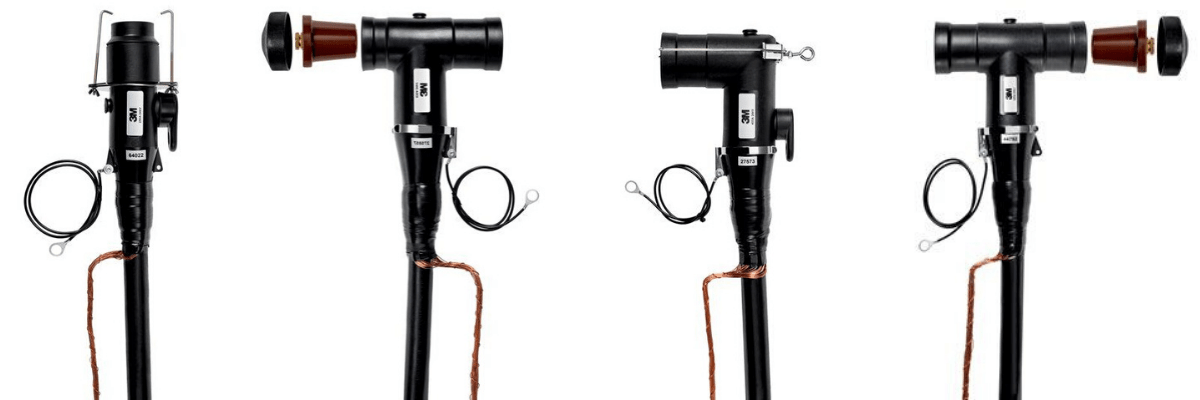

3M Electrical plug-in separable connectors are moulded using high quality EPDM rubber and meet the requirements of EN 50180 and EN 50181 for the termination of medium/high voltage cables – the cable connectors are manufactured in a range of design types including straight, elbow and T-Plug configurations.

3M Asymmetrical T-Plug Separable Connectors Connectors are sold in packs of 3 and include silicone stress control elements, earthing set, mechanical cable lugs for main conductor, mechanical cable lug for wire screen, plus all assembly materials and assembly instructions for the cable jointer.

All 3M Electrical separable connector kits are fully type tested to Cenelec HD 629.1 (DIN VDE 0278) and are available for voltage classes 6.6/11(12)kV, 20/22(24)kV, and 19/33(36)kV.

3M separable connectors are suitable to terminate polymeric insulated cables (XLPE EPR) single core, copper wire screened and unarmoured cables, in a wide range of sizes, for outer cone bushings.

MV separable connectors

product specification table

3M Order Code	Separable Connector Configuration	Amperage	Voltage	Cross Section Area mm²
92-EE890-2 35-50	Straight	250A	12kV	35 – 50
93-EE890-2 25-95			24kV	25 – 95
93-EE890-2 70-150			24kV	70 – 150
92-EE895-2 35-50	Elbow	250A	12kV	35 – 50
93-EE895-2 25-95			24kV	25 – 95
93-EE895-2 70-150			24kV	70 – 150
93-EE895-4 25-70		400A	24kV	25 – 70
92-EE895-4 95-120			12kV	95 – 120
93-EE895-4 95-240			24kV	95 – 240
94-EE895-4 35-95			36kV	35 – 95
94-EE895-4 95-120			36kV	95 – 120
94-EE895-4 150-240			36kV	150 – 240
93-EE995-6 25-70	T-Plug Asymmetrical	630A	24kV	25 – 70
92-EE995-6 95-150			12kV	95 – 120
93-EE995-6 95-240			24kV	95 – 240
93-EE995-6 240-400			24kV	240 – 400
93-EE995-6 400-630		1250A	24kV	400 – 630
94-EE995-6 35-95		630A	36kV	35 – 95
94-EE995-6 95-150			36kV	95 – 150
94-EE995-6 150-240			36kV	150 – 240
94-EE995-6 240-400			36kV	240 – 400
94-EE995-6 400-630		1250A	36kV	400 – 630
93-EE998-6 25-70	T-Plug Symmetrical	630A	24kV	25 – 70
92-EE998-6 95-150			12kV	95 – 150
93-EE998-6 95-240			24kV	95 – 240
