Nexans Q900AR-1/Q900AR-2
Interface F Equipment Bushing 52kV MV HV

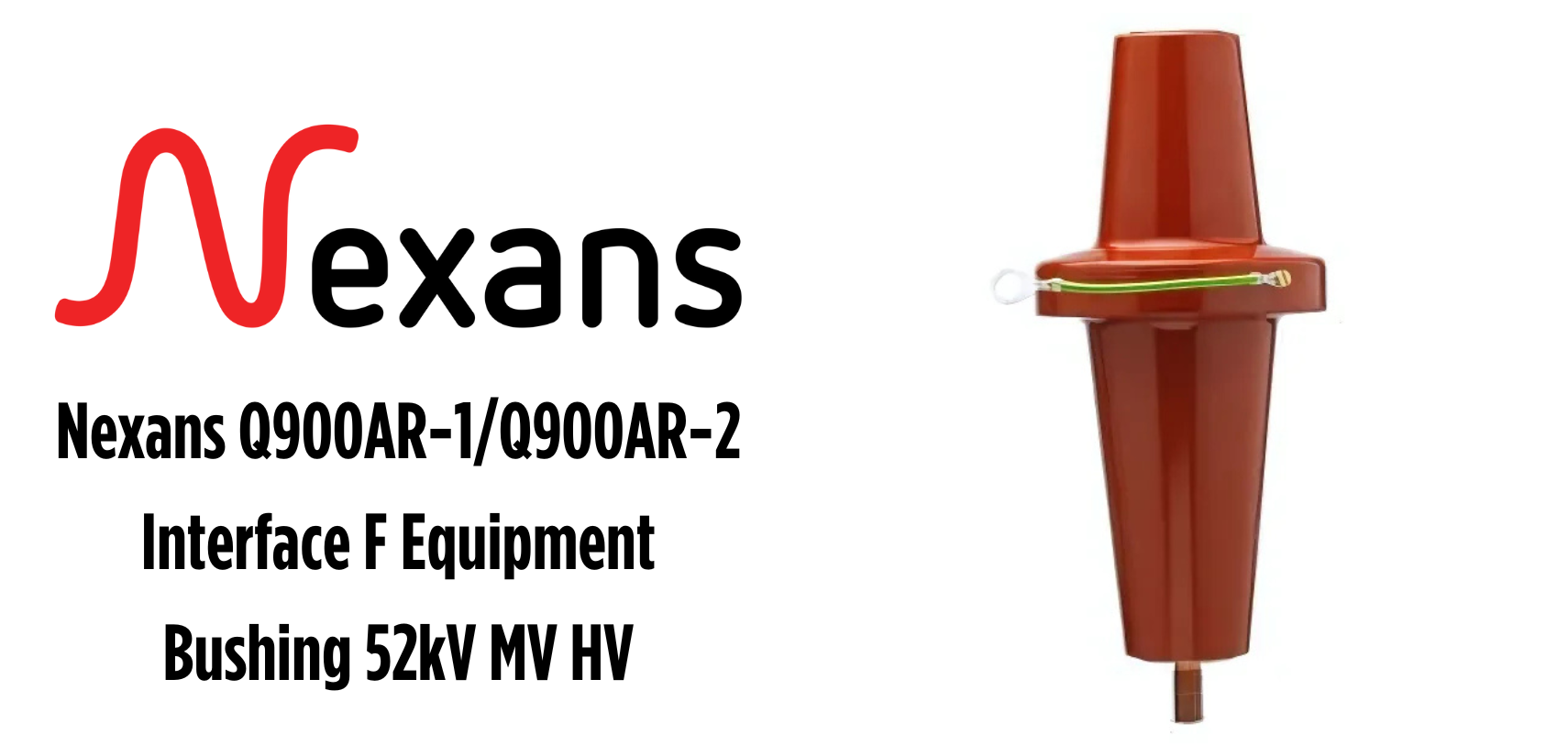

The Nexans Q900AR-1/Q900AR-2 Interface F Equipment Bushing is a moulded epoxy insulated bushing designed for use in electrical equipment such as transformers, switchgear, and capacitors. Forming part of the Euromold 52kV Cable Accessories the tee connector can also be used to connect cables to each other when the appropriate mating parts are used. Each Euromold bushing undergoes testing for AC withstand and partial discharge before leaving the factory.
- 26/45 (52) kV
- 1250 A
Thorne & Derrick hold large stocks of HV Cable Joints, Terminations & Connectors suitable for XLPE, PILC and EPR cables, in both heat shrink and cold shrink technologies, to service the medium/high voltage power cable accessory requirements of UK and international customers.
Interface F Equipment Bushing Design
SPECIFICATIONS & STANDARDS for High Voltage Bushings
The bolted type equipment bushings Euromold Q900AR-X are moulded epoxy insulated parts with type F interface. They are type tested according IEC 60137 and IEC 60840 for 52 kV Um.
| Nexans Type Equipment Bushing | Partial Discharge Extinction | AC Voltage |
| QM900AR-X | 5 pC @ 52 kV | 1′ @ 97 kV |
| QH900AR-X | 5 pC @ 52 kV | 1′ @ 115 kV + 30′ @ 90 kV |
ORDERING INSTRUCTIONS for High Voltage Bushings
To order the equipment Euromold bushing, specify the type. The bushing is supplied with an earth jumper (/J). Order QM or QH depending on the routine test required (see table below). E.g.
QM900AR-2/J.
| Nexans Equipment Bushing Type |
Interface Type |
Max. operating voltage Um (kV) |
Current Ir (A) |
Dimensions (mm) | ||

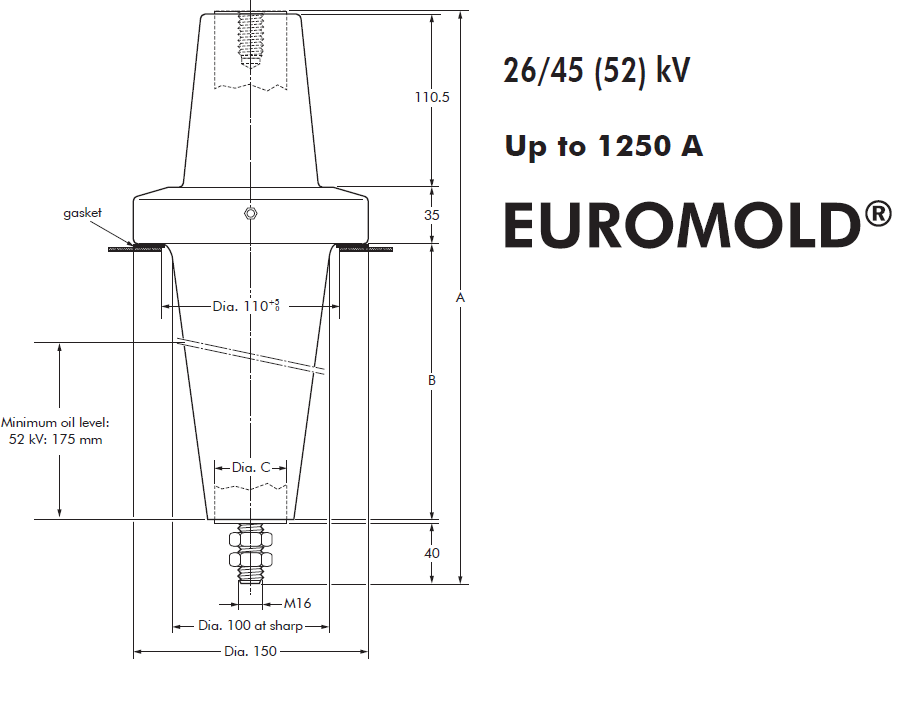

| A | B | Dia. C | ||||
| Q(M)(H)900AR-1 | F3 | 52 | 1250 | 364 | 175 | 32 |
| Q(M)(H)900AR-2 | F2 | 52 | 630 | 364 | 175 | 25 |
