Pfisterer 827 134 004 Protection Cap Size 0 for CONNEX Connectors

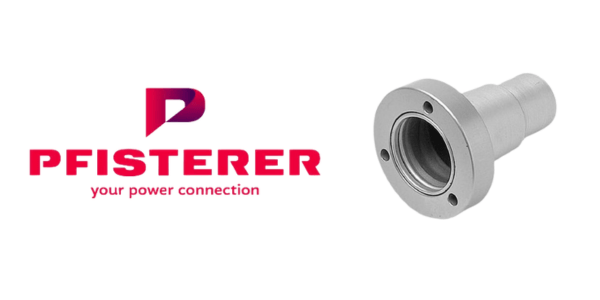

Pfisterer CONNEX Protection Cap Size 0 Bushings
Pfisterer 827 134 004
827 134 004 is a Pfisterer Protection Cap used to protect assembled CONNEX cable connectors with Size 0 electrical equipment socket bushings. The CONNEX protective caps are used for protecting  the unplugged CONNEX separable connectors against damage and dirt.
Made from metal, the protection cap manufactured by Pfisterer applicable to the European Standards EN 50180-1 and EN 50181.
BS EN 50180-1:2015
Bushings above 1kV up to 52kV and from 250 A to 3,15 kA for liquid filled transformers – General requirements for bushings.
BS EN 50181:2010
Plug-in type bushings above 1 kV up to 52 kV and from 250 A to 2,50 kA for equipment other than liquid filled transformers.
Pfisterer Protection Cap Size 0
Technical Specification
- CONNEX Part Reference – Pfisterer 827 134 004
- Protection Cap Size – 0Â Bushings Sockets
- Applicable Standards – EN 50180-1 and EN 50181
- Medium Voltage Accessories MV | Bushings | Surge Arresters

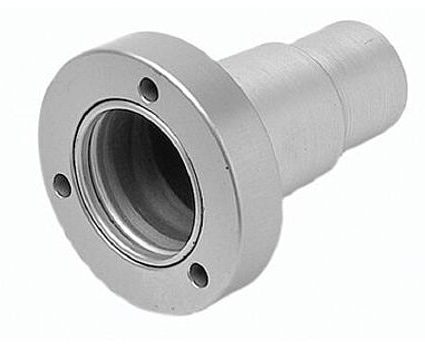

Size 0 Protection Cap | Pfisterer CONNEX

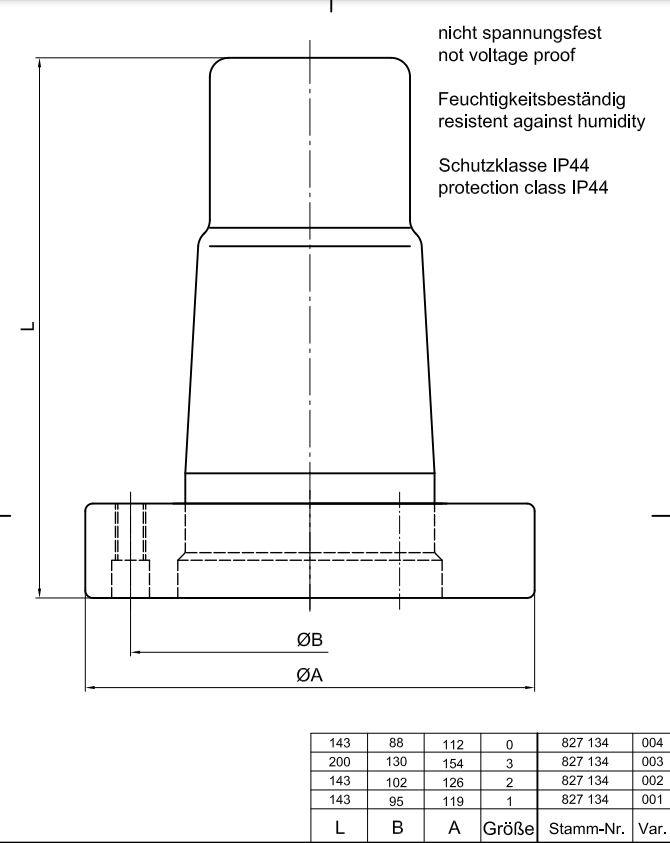

Pfisterer 827 134 004 Dimensions
Tools for Use with Pfisterer Connex
Thorne & Derrick stock and are Approved Distributors for the range of Pfisterer Tools used to install CONNEX Connectors (Inner Cone) when terminating medium/high voltage (MV HV) cables into switchgear and equipment bushings distributing electricity at the following voltages: 33kV, 66kV, 132kV.
HV Joints | Terminations | Connectors | 11kV 33kV
Pfisterer 827 134 004 – Data SheetDownload
