Pfisterer 827 708 013 Protection Cap Size 6 / 6-S for CONNEX Connectors

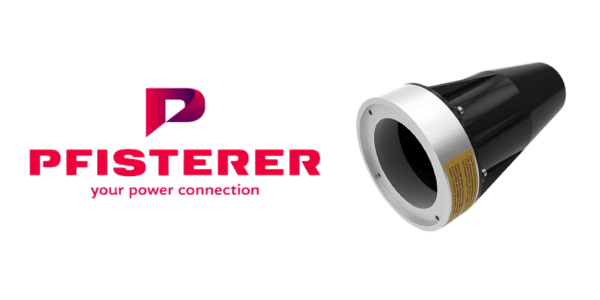

Pfisterer CONNEX Protection Cap Size 6 6S Bushings

Pfisterer 827 708 013

827 708 013 is a Pfisterer Protection Cap used to protect assembled CONNEX cable connectors with Size 6/6S electrical equipment socket bushings. The CONNEX protective caps for high voltage power systems and termination connections are designed for both indoor and outdoor working environments and are manufactured from plastic.

Protection caps, manufactured by Pfisterer, are capable of withstanding a wide range of temperatures, from -45°C to 50°C. The protection class for these caps is IPX7, ensuring they are highly resistant to water ingress. However, they are not voltage-proof, as indicated by the highest voltage (Um) and nominal voltage (Un) ratings, which are not specified for voltage-proof applications.

Pfisterer Protection Cap Size 6/6-S

CONNEX Part Reference – Pfisterer 827 708 012
Protection Cap Size – 6 Bushings Sockets
Working Place – Indoor & Outdoor
Environment Temperature – -45°C up to 50°C
Protection Class – IPX7
Highest Voltage – U_m (kV) not voltage proof
Nominal Voltage – U_m (kV) not voltage proof
Rated Design Voltages To Ground – U_m (kV) not voltage proof
Cap Diameter – 280mm
Cap Height – 494mm
High Voltage Accessories HV | Bushings | Surge Arresters

Size 6 6-S Protection Cap | Pfisterer CONNEX

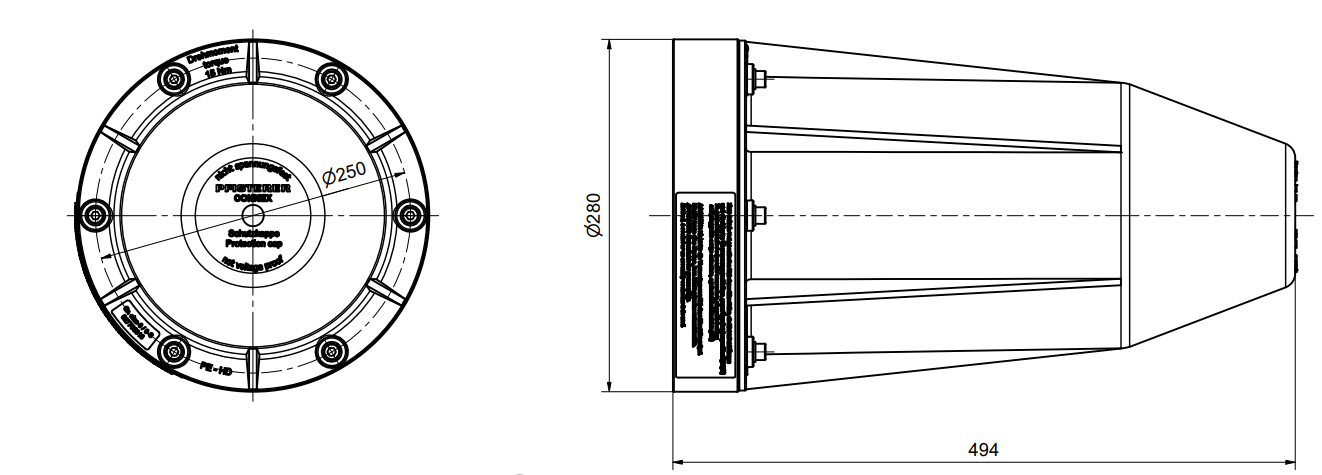

Pfisterer 827 708 013 Dimensions

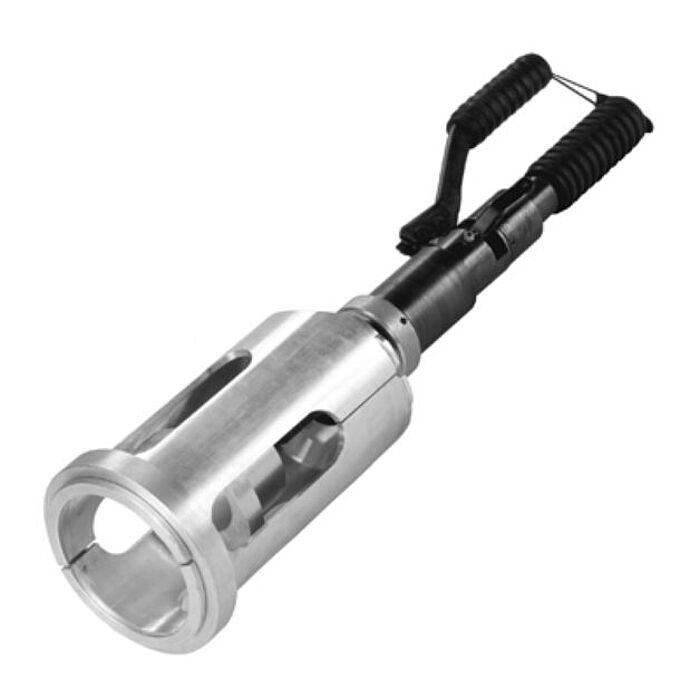

Tools for Use with Pfisterer Connex

Thorne & Derrick stock and are Approved Distributors for the range of Pfisterer Tools used to install CONNEX Connectors (Inner Cone) when terminating medium/high voltage (MV HV) cables into switchgear and equipment bushings distributing electricity at the following voltages: 33kV, 66kV, 132kV.
