Prysmian TT2352-1 | TT2352-2 | Screen Scoring Tools

Screen Scoring Tools

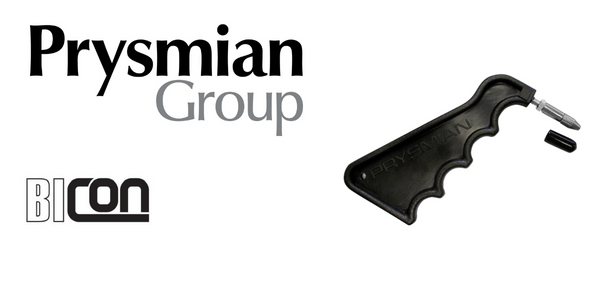

Prysmian TT2352-1 | TT2352-2

Prysmian Cable Preparation Tools | Fixed Blade Scoring Tools

Prysmian TT2352-1 and TT2352-2 is a Bicon semi-con scoring tool that strips medium (MV) and high voltage (HV) cables with minimal effort by the jointer. The Prysmian BICON range of screen scoring tools are available in three versions to handle all semi-conductor screen thickness depths: 0.4 mm, 0.6 mm and 1.5 mm. The lightweight and portable cable jointers tools enable the peeling off the outer layer of semi-con screen on MV-HV cables.

Prysmian BICON offers a variety of tooling technologies to cover almost any cable preparation or crimping need – their cable preparation range includes precision engineered tools to strip and score peelable semi-conducting screens on medium/high voltage power cables, typically distributing electrical power at 11kV/33kV.

---

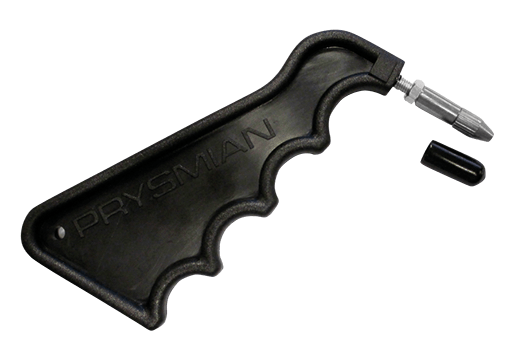

Fixed Blade Scoring Tool

Tool Application

Screen scoring tools for strippable screen cables.

Technical Data

Three tool sizes available:

• CGBUTT23521 – BICON TT2352-1 Screen Scoring Tool 0.4 mm
• CGBUTT23522 – BICON TT2352-2 Screen Scoring Tool 0.6 mm
• CGBUTT23523 – BICON TT2352-3 Screen Scoring Tool 1.5 mm

Tool Weigh: 60 g
Tool Size: 125 mm x 125 mm x 12 mm

Features & Benefits of Fixed Blade Screen Scorers

• Fixed depth screen scoring blades: 0.4 mm. 0.6 mm and 1.5 mm
• Vertical orientation of tool blade to handle
• Lightweight plastic design of the cable scoring tool
• Supplied with moulded cap to protect blade edge

---

Thorne & Derrick | Stockists & Distributors for the Prysmian Bicon Range of Cable Jointing & Preparation Tools

Data Sheets

• Prysmian TT2352-1 Bicon Screen Scoring Tools – Data Sheet
  Download
