Adjustable Semi-Con Scoring Tool

Ripley SCS

Ripley SCS is a general purpose semi-con scoring tool for most medium voltage cable constructions and is equipped with a standard cable guide. The adjustable semi-con scoring tool removes easy strip type semi-con screens from high voltage power cables, this includes 11kV and 33kV HV power cables.

SCS cable jointers tools, manufactured by Ripley, accommodate 8 – 45mm cable diameters and is perfect for high voltage power cable preparation prior to jointing and terminating and easily mounts on the cable.

➡ See the full range of Cable Jointing Tools distributed by T&D, including Cable Tools For Underground Primary Distribution Cables and High Voltage Cable Jointing Tools

The SCS cable preparation tool has capability for longitudinal and spiral cable cuts and for calibrated square cuts. Ripley SCS V2 is designed to provide better control on highly bowed or curved cable. It is equipped with a narrowed cable guide that accommodates sheathed & jacketed 3 phase assemblies.

Ripley SCS Cable Scoring Tool

Features

  • Compact & user-friendly scoring tool scores semi-con on all medium voltage 5 to 35kV cables without damaging the insulation
  • Accommodates cable diameters from 0.31″ to 2.0″ (8 to 51 mm)
  • Capable of performing longitudinal, spiral & calibrated square cuts to medium voltage cables
  • Precise blade depth adjustment provides accurate semi-con scoring by the cable splicers or jointers – 0′′ to 0.16′′ (0 to 4 mm) in increments of 0.002′′ (0.05 mm)
  • Cable tool operates in a 2″ (51 mm) envelope on larger cables
  • Easy cable cutting blade replacement

SCS   SCS V2
General purpose semi-con scoring tool for most medium voltage cable constructions & equipped with a standard cable guide. Designed to provide better control on highly bowed or curved cable & equipped with a narrowed cable guide that accommodates sheathed & jacketed 3 phase assemblies.

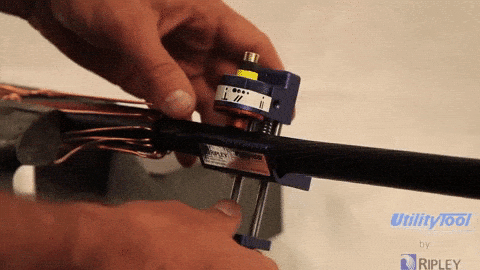

SCS ADJUSTABLE SEMI-CON SCORING TOOL



RIPLEY SCS CABLE INSULATION END STRIPPER

Specifications

Scoring Tool Model Order Code Scale Units Scale Increments Cable Size Ø Adjustable Blade Depth Replacement Blade
SCS 43630 Customary 0.002″ 0.31″ to 2.0″ (8 to 51 mm) Up to 0.16″
(Up to 4 mm)
43645
43625 Metric 0.05 mm
SCS V2 43651 Customary 0.002″
43650 Metric 0.05 mm
Ripley SCS Operation Instructions

Ripley SCS Operation Instructions

Tool Adjustments and Upkeep

Blade Replacement Instruction

tool adjustments

  1. Turn the black blade adjusting knob counter-clockwise until it stops. The dial should read 0.

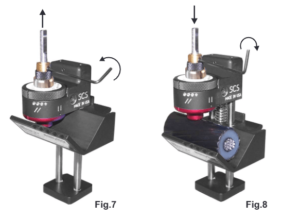

  2. Loosen the blade retaining screw with a 1/16 hex wrench and remove blade from the collar. (Fig.7)
  3. Insert a section of cable into the tool with the base of the scoring head resting on the cable OD. (Fig.8)
  4. Insert a new blade assembly through the collar with the flat of the shaft facing the screw. Drop the blade so it is resting on the cable OD. Re-tighten the blade holding screw against the flat portion of the blade shaft. (Fig.8)
  5. Re-adjust the blade to the desired depth setting.

Tool UpkeepSCS tool upkeep

  1. Keep the tool clean and dry.
  2. Occasionally apply a few drops of 3-in-1 or WD-40 oil under blade position knob in this corner shown to maintain smooth blade indexing.

Blade Alignment

The SCS tool is factory assembled for proper bladeSCS blade alignment registration and tracking. If blade replacement is necessary, the ring cut can be checked and adjusted for proper alignment. The SCS is designed with a blade alignment feature to ensure the ring cut will track squarely. If misalignment is determined, turn the blade alignment adjusting screw with a 1/8” hex wrench in the correct direction to bring the tool back to a properly tracking ring cut.
