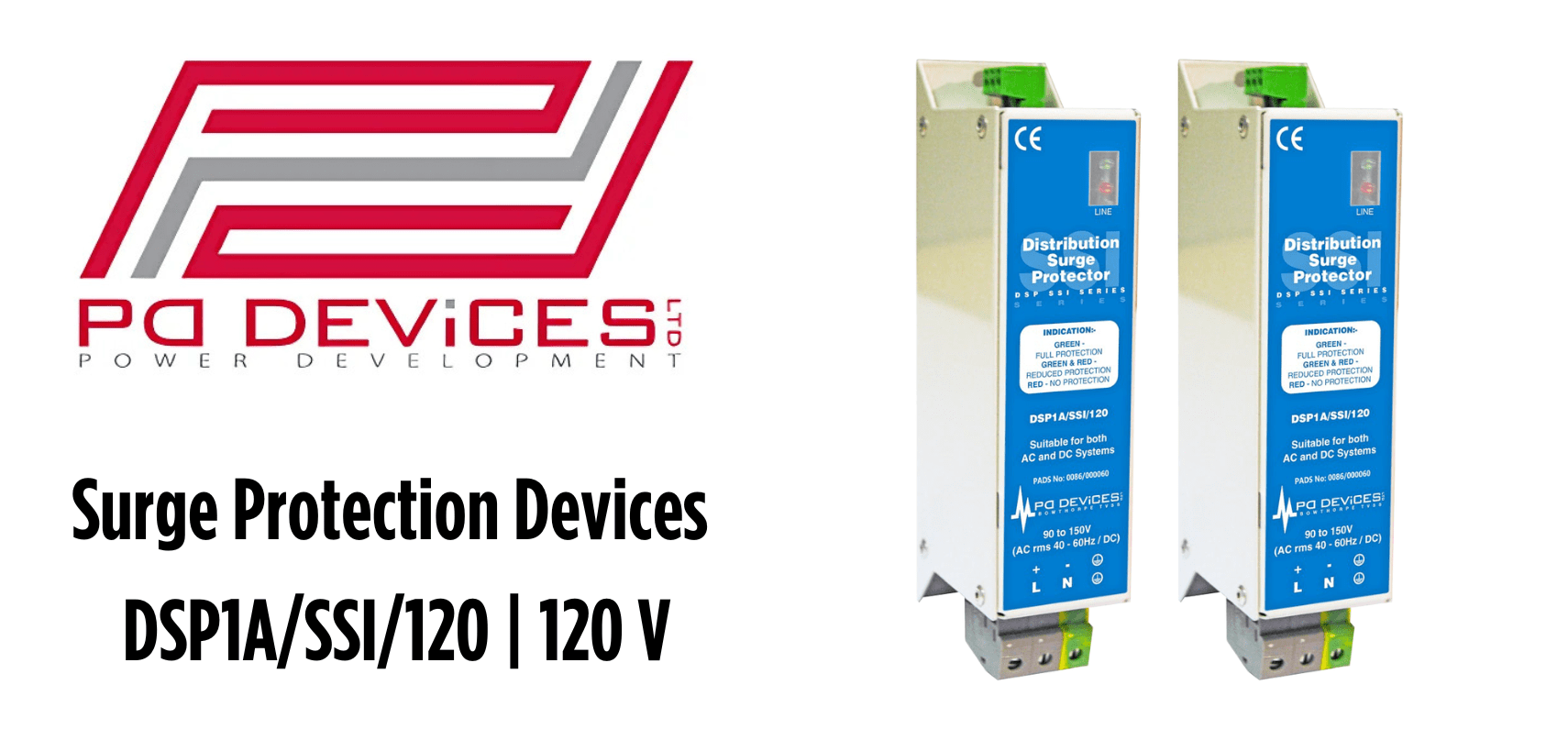

The DSP1A/SSI/120 manufactured by PD Devices Ltd is based on the successful DSP range of surge arresters and uses technology that has been proven in locations with some of the highest Keraunic levels worldwide.

It offers protection for signals, points, level crossings, and other systems. Additionally, the device features protection status indication and remote signalling capabilities. It helps reduce the failure rate of TFMs, prolongs the service life of equipment, and meets the requirements of Network Rail specification (PAD’s No: 0086/000060).

Surge Protection Devices Specification

Operating Voltage Range (AC or DC)	90 to 150V rms or DC
Nominal Voltage (AC or DC)	120V rms or DC
Frequency Range (For AC installation)	40 to 60 Hz
Maximum Surge Current, Imax (8/20μs)	30kA
Voltage protection level, Up (6kV/3kA CWG)	400V
Response Time	<10ns
Power Consumption (Nominal)	18mA
Earth Leakage Current	200μA
Screw Terminals	16sqmm max – Line, Neutral, Earth 2.5sqmm max – Remote Signalling
Status Indication	Green – Full Protection Red & Green – Reduced Protection Red – No Protection
Operating Temperature*	-40 °C to +70 °C
Case	Steel, Epoxy Coated
Dimensions (mm)	186mm (length), 47mm (width), 72mm (height)

*Unit can be operated at a higher temperature if de-rated, please ask for details.

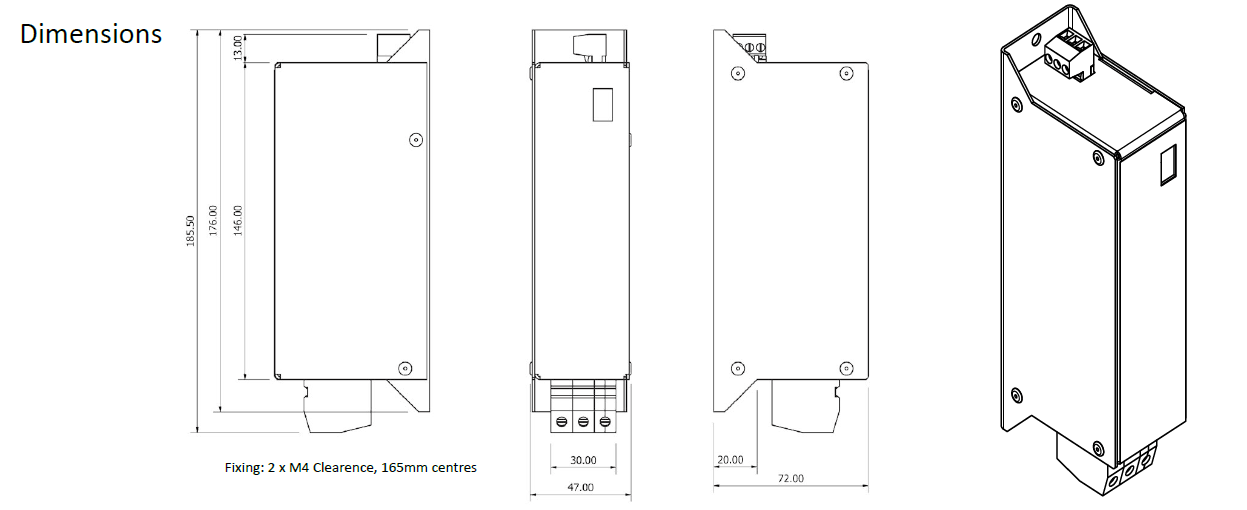

DSP1A/SSI/120 Dimensions
