Cable Support Requirement

A customer required a cable cleat solution to fit existing brackets in a vertical access tunnel to a mine shaft. A range of cables were required to be held; the brackets were already installed in the shaft so the solution was required to interface with them.


Bespoke Cable Support

Ellis Patents Solution

Ellis Patents received samples of cables and brackets and experimented with a number of retention solutions in their in-house test facility. Upon completion of the development work, new designs were created and manufacturing drawings produced. The material selection and size were backed up with hand and FEA calculations. One of the solutions was based around an existing design and the other required a completely new solution. Drawings were supplied to the customer including the supply of the part number to be filed in the project documentation pack.

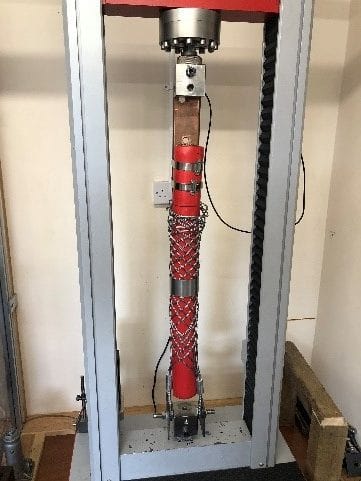

Testing concept designs with customers cable in Ellis on site test facility

Testing concept designs with customers cable in Ellis on site test facility

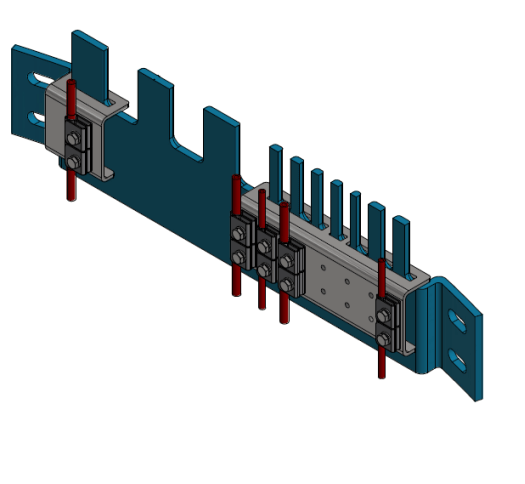

3D Model of customers bracket in blue with adaptor bracket and Ellis Phoenix cleats

3D Model of customers bracket in blue with adaptor bracket and Ellis Phoenix cleats

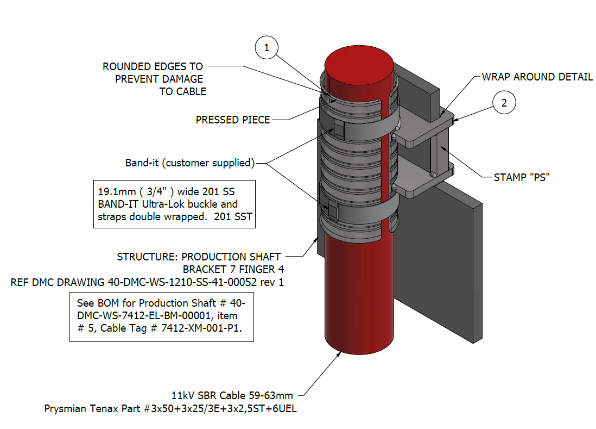

3D Model bracket and cable

3D Model bracket and cable

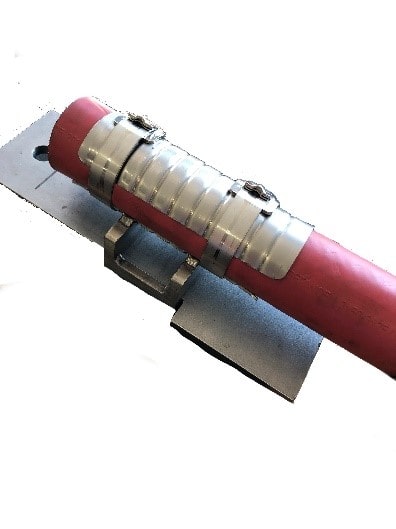

Completed part installed on customer supplied bracket

Completed part installed on customer supplied bracket
