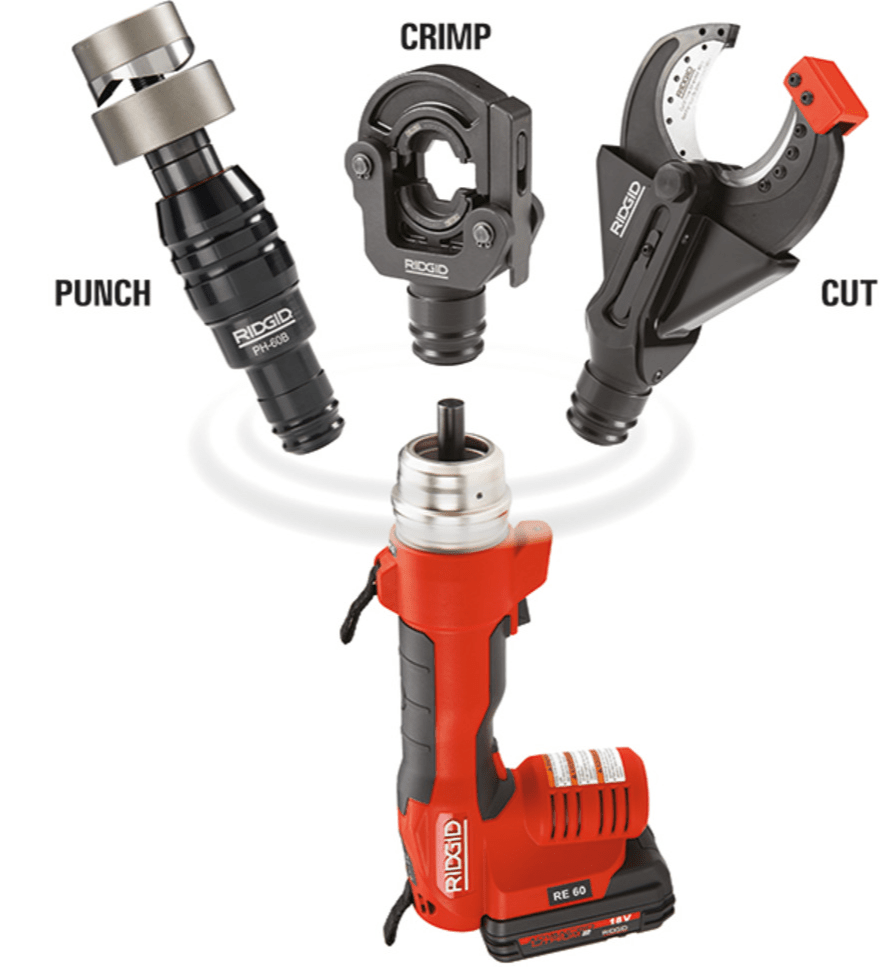

Now there’s a more efficient way to cut, crimp, and punch on the jobsite. The new line of RIDGID electrical tools, the RE 60, features the unique QuickChange System, allowing you to quickly and easily switch between interchangeable heads for cutting, crimping and punching. Now your important tasks can be accomplished with one innovative tool.
Whether you are cutting wire, crimping lugs or punching boxes, the RE 60 helps you to maximize productivity and efficiency on the jobsite. Your most critical electrical tasks are brought together in one convenient tool.
RIDGID RE 60 features a 6-ton (60 kN) hydraulic force output to cut armoured cable up to 50 mm O.D., crimp Cu/Alu cable lugs up to 300 mm² and punch round holes up to 63,5 mm. During cutting and crimping, the ram will automatically retract once the cycle is completed. Punching applications require use of the release trigger.
The built-in sensors and LED indicators ensure tool performance, allow the tool to operate in extreme temperatures (-10° -50°C), monitor cycle time, generated pressure, battery life and indicate when the tool requires service.
RIDGID RE 60 TOOL
Features
60 kN force output for crimping lugs up to 300 mm², cutting cables up to 50 mm diameter and punching holes up to 3 mm mild steel.
Automatic ram retraction when cutting and crimping
Longest service interval in the industry (32.000 cycles)
360° head rotation
Bright white LED for illuminating the workspace
Rubber over-molded grip for superior comfort and control
Nylon straps for greater tool security
Heavy-duty, blow-molded case for easy transport and storage
On/Off button for disabling tool when changing dies or heads
Powered by the RIDGID 18V Advanced Lithium battery platform

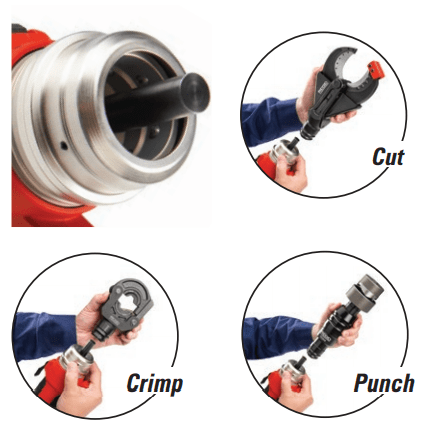

RIDGID RE 60 Featuring the RIDGID QuickChange System
RIDGID RE 60 TOOL
Specifications
Order Code
RIDGID RE 60
Manufacturer
RIDGID Tools
Description
RE 60 Electrical Tool Kit w/SC-60B Scissor Cutter, LR-60B Latching Round Crimp Head and PH-60B Punch Head
Approximate Cycle Time
5 seconds
Service Interval
32,000 cycles
Weight
3.2 kgs w/battery
RIDGID RE 60 3-in-1 Electrical Tool
