PBwel Earthing Leads For Temporary Earthing Of Transmission Line Conductors 132kV, 275kV, 400kV
Published 11 Jan 2021

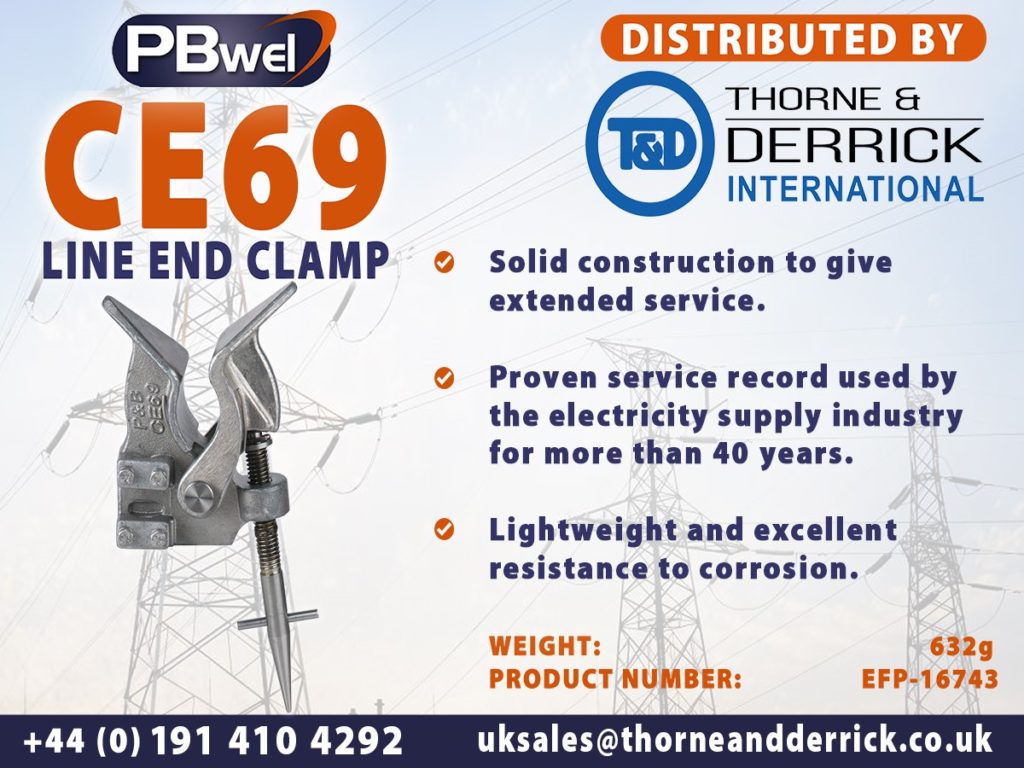

PBwel CE69 Line End Clamp
PBwel CE69 Line End Clamp
PBwel Earthing Leads
The PBwel range of Earthing Leads and equipment for the Electricity Transmission & Distribution sector are renowned within the industry and are suitable for temporary earthing of transmission line conductors within the range 132kV, 275kV and 400kV.
The PBwel CE69 Line End Clamp is suitable for application to conductors ranging from 13mm to 46mm.
The CE69 earth clamp is to be applied in either an upward or downward direction utilising an OL1 operating socket attached to an insulated operating pole. The spring-loaded jaws enable the clamp to be slipped easily over the line conductor and retain the clamp in position whilst the operating screw is being tightened or loosened.
A full range of Transmission Line Earthing Equipment are available for use with transmission line end earthing clamps
PBwel CE69 Line End Clamp
Technical Specification
- Clamping Diameter: 13- 46mm
- Short Circuit Rating: 20kA/ 1s
- Cont. Current Rating: 300A
- Weight: 0.632kg
- Part Number: EFP-16743
PB WEIR – DISTRIBUTORS, STOCKISTS & SUPPLIERS
PB Weir Substation Earthing and Transmission Line Earthing Equipment include line end clamps, earth end clamps, portable earthing leads and operating poles for high voltage substations, overhead power line and transmission line applications – voltages include 11kV, 33kV, 66kV, 132kV up to 400kV.
Thorne & Derrick provide competitive prices and fast delivery from stock for the complete range of PB Weir substation earthing and transmission line earthing equipment.
In 2018 In 2018 PB Weir joined the Novarc group and re-branded as PBwel and now, through the ESP group of companies, we are able to supply, support and maintain a comprehensive range of Electrical Safety Equipment which includes: Earthing, Insulated Tools, Arc Flash Protection, Personal Voltage Detection Helmets, Insulating Gloves, Voltage Detection, Operating Poles & Lock-Out Tag-out.
