PB Weir transmission line end earthing clamps are suitable for the temporary earthing of transmission line conductors and overhead power lines within the range 132kV, 275kV and 400kV.

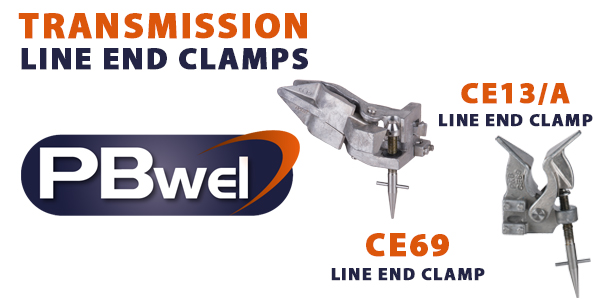

PB Weir CE13/A transmission line end earthing clamps are suitable for conductors ranging from 19mm to 42mm and are applied using an operating socket attached to an OL1 insulated operating pole. They are designed to be applied in a near horizontal position, from the tower cross arm over tension set insulators to the line conductor.

The PB Weir CE69 transmission line end earthing clamp are suitable for conductors ranging from 13mm to 46mm and are applied in either an upward or downward direction and only by means of an OL1 operating socket attached to an insulated operating pole.

The spring loaded jaws enable the clamp to be slipped easily over the line conductor and retains the clamps position whilst the operating screw is being tightened or loosened.

Transmission Line End Earthing Clamps 132kV 275kV 400kV Benefits

  • Solid construction to give extended service
  • Proven service record used by ESI for over 40 years
  • Lightweight and good corrosion resistant earthing clamps
Transmission Line End Earthing Clamps 132kV 275kV 400kV

A full range of Transmission Line Earthing Equipment are available for use with transmission line end earthing clamps
