PBwel Transmission Line Earthing Leads 132kV, 275kV, 400kV
Published 12 Jan 2021
Earthing Leads By PBwel
Transmission Line Earthing Leads
Multi-stranded, Commercially pure aluminium. Available in any length required.
The PBwel range of Earthing Leads and equipment for the Electricity Transmission & Distribution sector are renowned within the industry and are suitable for temporary earthing of transmission line conductors within the range 132kV, 275kV and 400kV.
PBwel range of Aluflex cables and leads are suitable for temporary earthing of transmission line conductors within the range 132kV, 275kV and 400kV. PBwel Aluflex earthing leads are produced from multi-stranded, commercially pure aluminium wrapped with a layer of P.T.P. tape and covered with an extruded transparent PVC sheath.
Flexible clear PVC stress-relieving sleeves are fitted to prevent excessive wear around the compression joints. The earth end to line end clamp interconnecting lead has a 50sqmm nominal section area, terminated by PB50F type ferrule terminations.
Earth bonds are of a 120sqmm nominal section area terminated by PB120F palm type terminations. Flexible clear PVC stress-relieving sleeves are fitted to prevent excessive wear around the compression joints.
Transmission Line Earthing Leads
Customer Benefits
- Aluminium is less expensive than copper
- Light and flexible earth leads
- Aluminium is less vulnerable to theft than copper
- Custom portable earth leads are available in any lengths on request
transmission line Earthing leads
Full range
 |
 |
 |

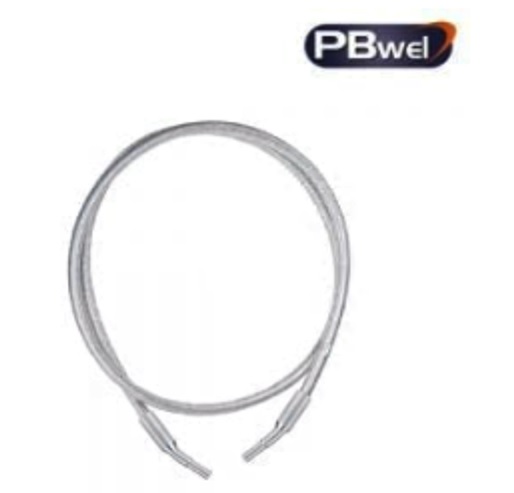

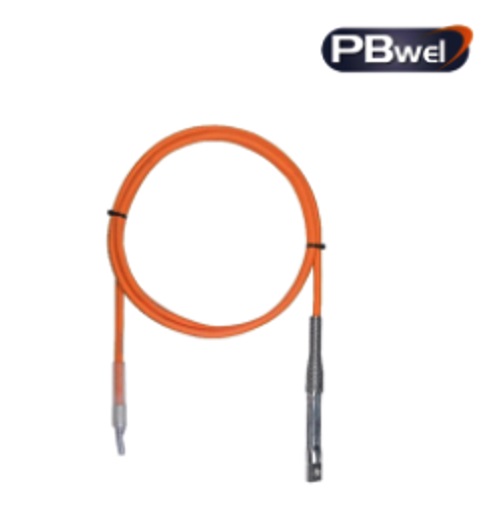

| 120 sqmm Clear Aluflex | 50 sqmm Clear Aluflex | 50 sqmm Arctic Orange Field Drain Earth |
Transmission leads terminations and equipments
Full Range
 |
 |
 |
 |

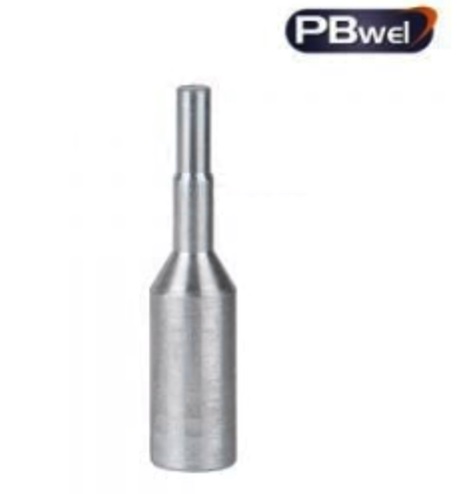

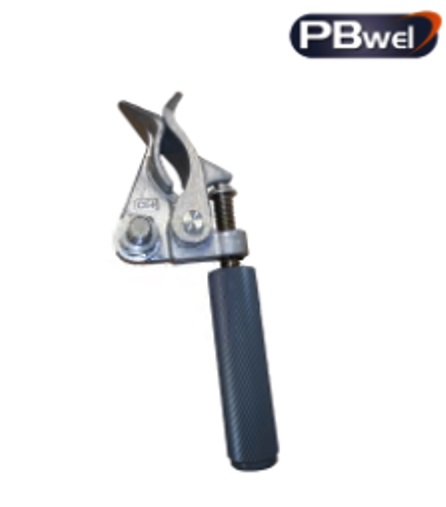

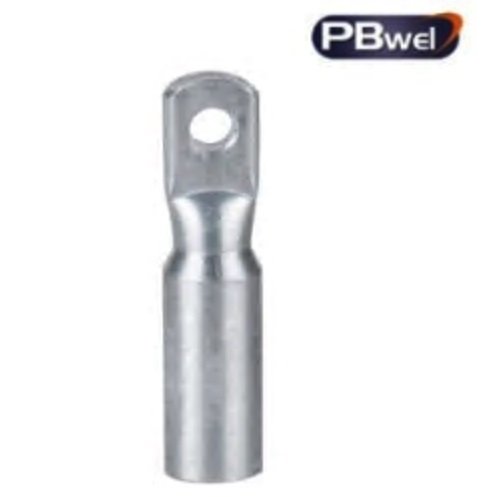

| PB120F Ferrule Termination | PB50F Ferrule Termination | PB50 ALU Termination 13 Dia Hole | CE4 Scaffold Clamp |
PB WEIR – DISTRIBUTORS, STOCKISTS & SUPPLIERS
PB Weir Substation Earthing and Transmission Line Earthing Equipment include line end clamps, earth end clamps, portable earthing leads and operating poles for high voltage substations, overhead power line and transmission line applications – voltages include 11kV, 33kV, 66kV, 132kV up to 400kV.
Thorne & Derrick provide competitive prices and fast delivery from stock for the complete range of PB Weir substation earthing and transmission line earthing equipment.
In 2018 In 2018 PB Weir joined the Novarc group and re-branded as PBwel and now, through the ESP group of companies, we are able to supply, support and maintain a comprehensive range of Electrical Safety Equipment which includes: Earthing, Insulated Tools, Arc Flash Protection, Personal Voltage Detection Helmets, Insulating Gloves, Voltage Detection, Operating Poles & Lock-Out Tag-out.
ALADIN | Improved electrical safety levels for workers operating near live equipment
âž¡ Read More Here: ALADIN Individual Voltage Alarm With Headlamp For MV Overhead Lines 10-69kV
Product Spotlight | see Live Line Indicators designed for use upon overhead a.c. rail electrification systems operating at 25kV nominal voltage to indicate the presence of extra high voltages to aid safe working practices.
