Emtelle PVC Conductive Cable Duct range of products are designed, manufactured and supplied within an Integrated Management System, incorporating internationally recognised Standards including ISO9001, ISO14001 and ISO18001 – designed to comply with ENATS 12-24 Industry Standard.

The Con-Duct system is a new addition to Emtelle Powerprotect+ range of products which enables rapid traceability of cable sheath faults within a ducted network.Traditionally, if a fault was detected on a length of cable, engineers would typically have to dig down to the cable at the halfway mark and use a tester to determine which half was defective. The process was repeated until a short enough section of cable was reached to repair the fault.

Con-duct connectors are short PVC cable duct spigot and socket sections which are encapsulated with a specifically developed “electro conductive” coating. Powerprotect+ solid wall PVC duct with conductive coating allows the connectors to act as an earthing point from the fault to ground, as the current is conducted from inside to outside of the duct via the Con-Duct connector.

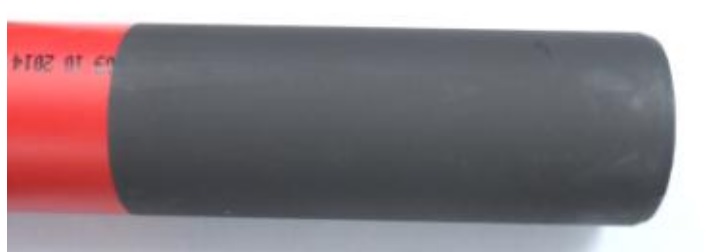

In addition to individual connectors, the same fault-finding ability can be achieved by coating the spigot end of any PVC Duct with the same “electro conductive” coating.
The coating enables the location of the cable sheath fault through use of industry standard cable tracing / fault detection equipment.

Conductive Cable Duct

Product Types & Sizes

Interference Fit Coupler Interference Ring Seal Coupler Coated Duct
Interference Fit Coupler Interference Ring Seal Coupler Coated Duct

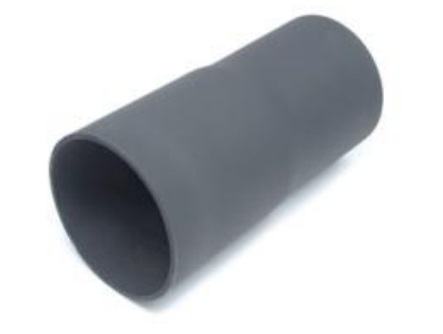

  • Interference Fit Coupler providing an IP4X rated socket joint once connected
  • Available in standard sizes from Ø38mm up to and including Ø250mm. Class 1 only
  • For information on the full range of standard sizes available see specification EF450-014
  • Interference Ring Seal (IRS) Coupler providing an IP-57 rated socket joint once connected
  • Available in the following sizes; Ø110mm, Ø160mm, Ø200mm & Ø250mm. Class 1 only
  • For additional information on Emtelle’ innovative Interference Ring Seal (IRS) see specification EF450-019
  • Power duct sizes range from Ø38mm up to and including Ø250mm (Class 1 & 2), all can be supplied with a coated spigot
  • For information on the full range of standard sizes available see specification EF450-014
  • Power cable duct with an Interference Ring Seal (IRS) socket is only available in Ø110mm, Ø160mm, Ø200mm & Ø250mm

LV MV HV Cable Duct

11kV 33kV 66kV 132kV

Thorne & Derrick distribute a complete range of cable ducts for the protection of Low (LV), Medium (MV) and High (HV) cables.

ENATS12-24 Power Cable Duct From Emtelle - UK DNO Approved

ENATS12-24 Power Cable Duct From Emtelle – UK DNO Approved

The conductive cable duct forms part of Emtelle’s Powerprotect+ duct systems that are now specified for all major DNO’s within UK and Ireland including UK Power Networks, Electricity North West, Northern Powergrid, Western Power Distribution, Scottish Power Electricity Networks, Scottish & Southern Electricity, Electricity Northern Ireland and Electricity Supply Board Ireland.

Emtelle cable duct provides underground cable protection to LV-HV cables, including UK DNO approved conductive cable duct for 33kV high voltage power cable protection.

ENATS12-24 Power Cable Duct From Emtelle - UK DNO Approved

ENATS12-24 Power Cable Duct From Emtelle – UK DNO Approved | LV 11kV 33kV 66kV 132kV Duct
