Solar Cable Ducts KOPOFLEX
The KOPOS KOPOFLEX range of UV Resistant Solar Cable Ducts are halogen-free, are purposed to protect Low Voltage, Medium Voltage & High Voltage Cables 11kV 33kV 66kV from risk of environmental damage, designed to withstand harsh weather conditions (such as UV rays protection), making the Solar Cable Ducts the ideal solution for underground and surface LV MV HV power cable protection. The KOPOFLEX UV Resistant Solar Cable Ducts are part of the Solar PV Cable Ducts & Wiring Pipes KOPOFLEX, KOPODUR, KOPOHALF & KOPOKAN family.
The KOPOS KOPOFLEX UV Resistant Solar Cable Ducts is equipped with a pull-through string or wire that ensures easy power cable insertion and a coupling on the end. The protection class for the sealing ring is IP 67 up to Ø 160mm.
Thorne & Derrick are approved suppliers for the KOPOS KOPOFLEX range, designed for mechanical and data wiring protection of all kinds, working in conjunction with our extensive range of 11kV 33kV 66kV power cables and cable accessories, such as LV MV HV Cable Joints, Terminations & Connectors.
UV Resistant Ducting Technical Specifications

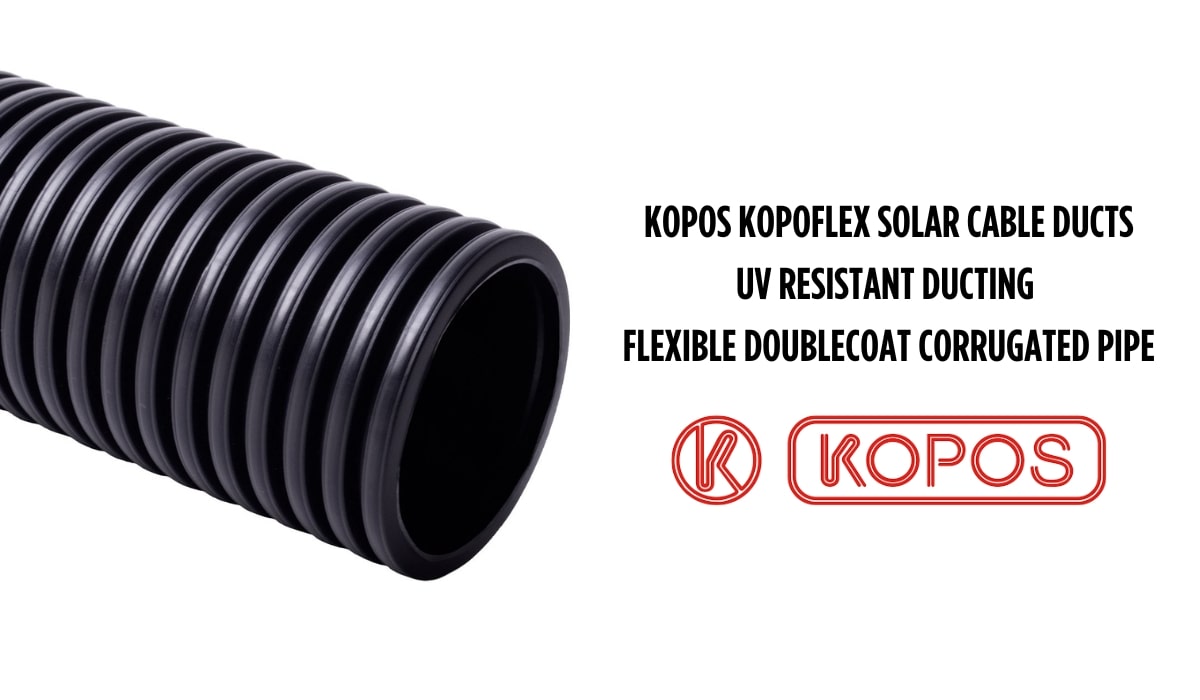

KOPOFLEX UV Resistant Flexible Double Coat Corrugated Duct
- Weight: 0.1060kg/m
- Colour: Black
- Material: HDPE
- Halogen Free Material: Yes
- UV Stable/UV Resistant Material: Yes
- Installation Temperature: -25°C – 90°C
- Operating Temperature: -55°C – 90°C
- Mechanical Resistance: 450N/20cm
- Outside Diameter: 40mm
- Inner Diameter: 32mm
- Allowance: Length ± 0.5m
- Minimum Bending Radius: 230mm
- Fire Reaction Class of Underlying Material: A1
- Protection Types: IP 40, if IP 67 sealing ring is used
- Standards: ČSN EN 61386-24
KOPOS KOLIN recommendations include the installation of the KOPOFLEX Solar Cable Ducts being temperatures above 0°C.
KOPOS KOPOFLEX Solar Cable Ducts Accessories
- Couplings
- Sealing Rings
- Closing Plugs
- Distance Spacers
KOPOFLEX UV Resistant Ducting Chemical Resistance
YES: Aceton, Amoniak 25%, Distilled Water, Ethanol 50%, Sodium Hydroxide 60%, Hydrofluoric Acid 40%, Acetic Acid 5%, Sulfuric Acid 96%, Medicinal Oil, Methanol, Olive Oil, Petroleum, Hydrogen Peroxide 20%, Transformer Oil, Sodium Carbonate.
NO: Anilin, Chlorinated Hydrocarbons, Tetrachlorocarbon.
KOPOFLEX Solar Cable Ducts Selection Guide
The following table provides a complete insight on the KOPOS KOPOFLEX Solar Cable Ducts UV Resistant range, further aiding selection of the ideal product:
| KOPOS KOPOFLEX Solar Cable Ducts UV Resistant | ||||||||

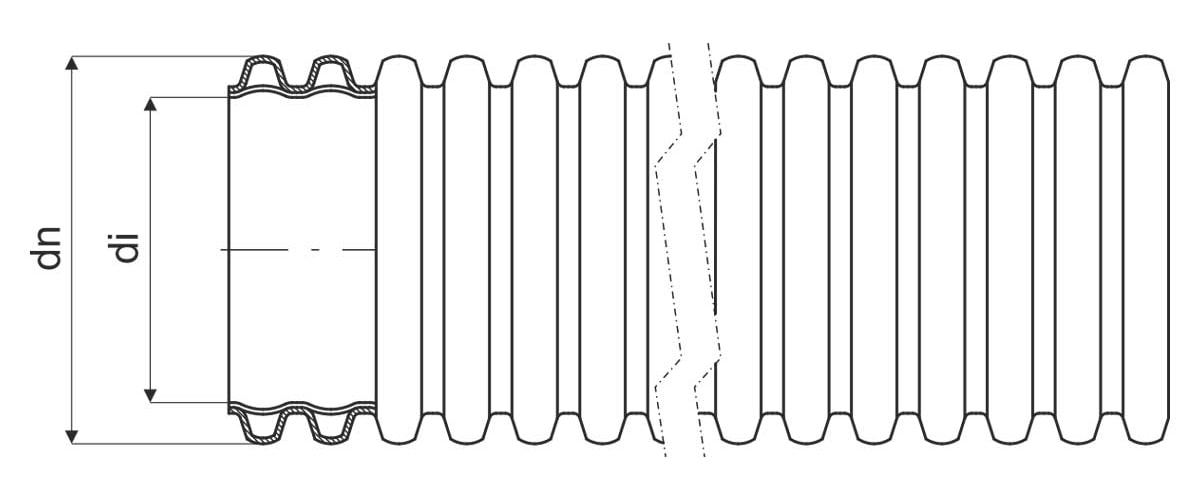

| product code | dn outer Ø (mm) | di min. inner Ø (mm) | min. bending radius (mm) | length = package (m) | package dimension (cm) | weight (kg/package) | pallet package (m) | colour |
| KOPOFLEX KF 09040_UVFA | 40 | 32 | 230 | 50 | 64×31 | 5.5 | 3000 | black |
| KOPOFLEX KF 09050_UVFA | 50 | 41 | 350 | 50 | 77×33 | 8.0 | 1800 | black |
| KOPOFLEX KF 09063_UVFA | 63 | 52 | 350 | 50 | 80×46 | 11.0 | 1500 | black |
| KOPOFLEX KF 09075_UVFA | 75 | 61 | 350 | 50 | 94×50 | 15.6 | black | |
| KOPOFLEX KF 09090_UVFA | 90 | 75 | 400 | 50 | 113×50 | 20.0 | black | |
| KOPOFLEX KF 09110_UVFA | 110 | 94 | 400 | 50 | 124×60 | 26.0 | black | |
| KOPOFLEX KF 09125_UVFA | 125 | 108 | 500 | 50 | 135×62 | 30.0 | black | |
| KOPOFLEX KF 09160_UVFA | 160 | 136 | 650 | 50 | 194×58 | 45.0 | black | |
| KOPOFLEX KF 09200_UVFB | 200 | 176 | 850 | 25 | 160×60 | 30.5 | black | |
KOPOS KOPOFLEX
KOPOS KOLIN have been the biggest producer of wiring material in Czech Republic for over 90 years, producing over 5,000 products, from wiring boxes, trunkings, parapet trunkings, cable ducts, double wall protector conduits, divided cable duct, and cable management systems, as well as producing environmentally-friendly products.

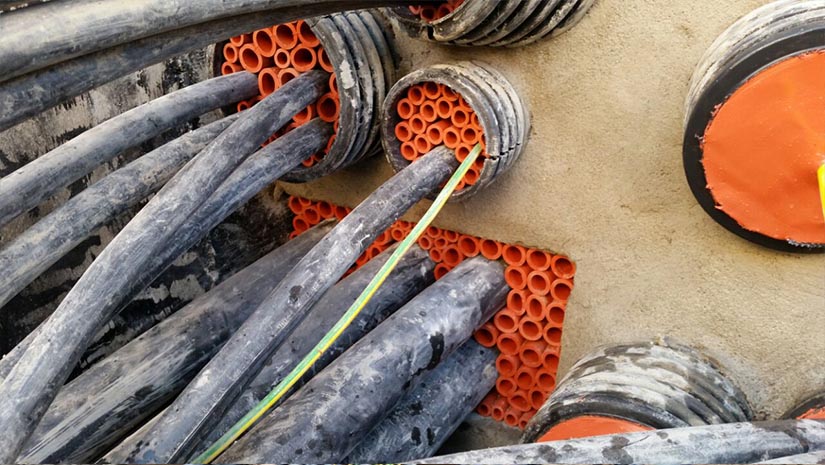

Duct Seals & Cable Sealing Systems
Thorne & Derrick stock an extensive range of Duct Seals & Cable Sealing Systems, working with market-leading manufacturers, such as Filoform, CSD & Roxtec. Paired with the KOPOFLEX Solar Cable Ducts, our selection of Duct Seals products will correctly and effectively seal and protect electrical cabling in distribution networks, substations and power supply against harsh environments, preventing any infliction of minor or major damage. The Duct Sealing Systems provide a watertight seal and defence against flood damage to low, medium and high voltage cable ducts with additional protection against harmful flammable gas migration and fire spread.
Cable Sealing Systems | Filoform Filoseal+HD | Filoform Filoseal+HD Fire | CSD Rise Duct Seals | CSD NOFIRNO Duct Seals
KOPOS KOPOFLEX Solar Cable Ducts UV Resistant – Technical DatasheetDownload
