Cembre MG4 – Thermal Printer For Cable Labelling

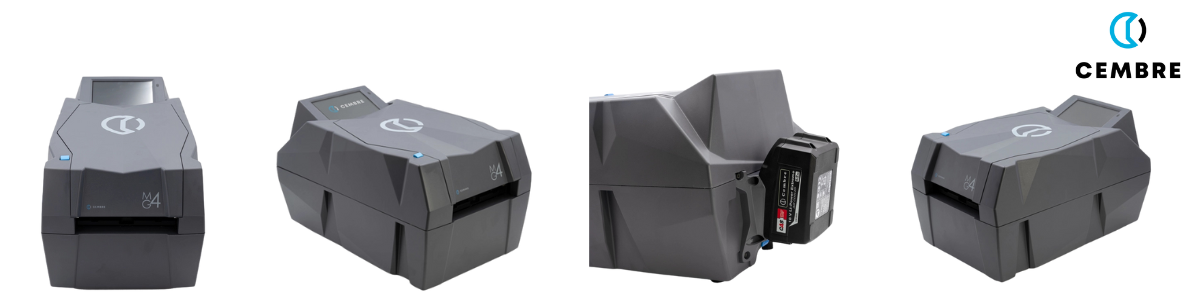

Cembre MG4 Thermal Printer
The New Generation of Thermal Transfer Printing with the Cembre MG4

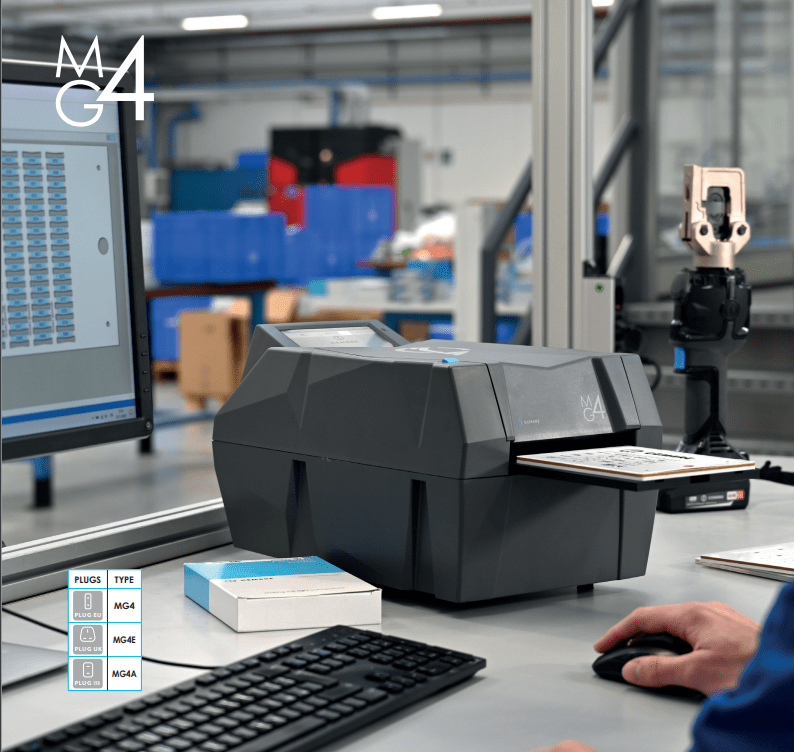

The Cembre MG4 Thermal Printer represents the next generation in thermal transfer printing technology, designed to enhance the efficiency and quality of cable cutting, crimping and labelling tools. Leveraging decades of industrial marking expertise, the MG4 is a versatile and portable solution that excels in a wide range of applications.
Equipped with a ribbon save system, the Cembre MG4 is a useful tool that improves the quality of work of its users by exploiting the technology and experience in industrial marking gained from working in the business sector. The large on-board touch screen enables quick and easy management of print projects, which can be used with both a mains power supply and with the Cembre CAS Alliance rechargeable batteries.
The Cembre MG4 Thermal KitÂ

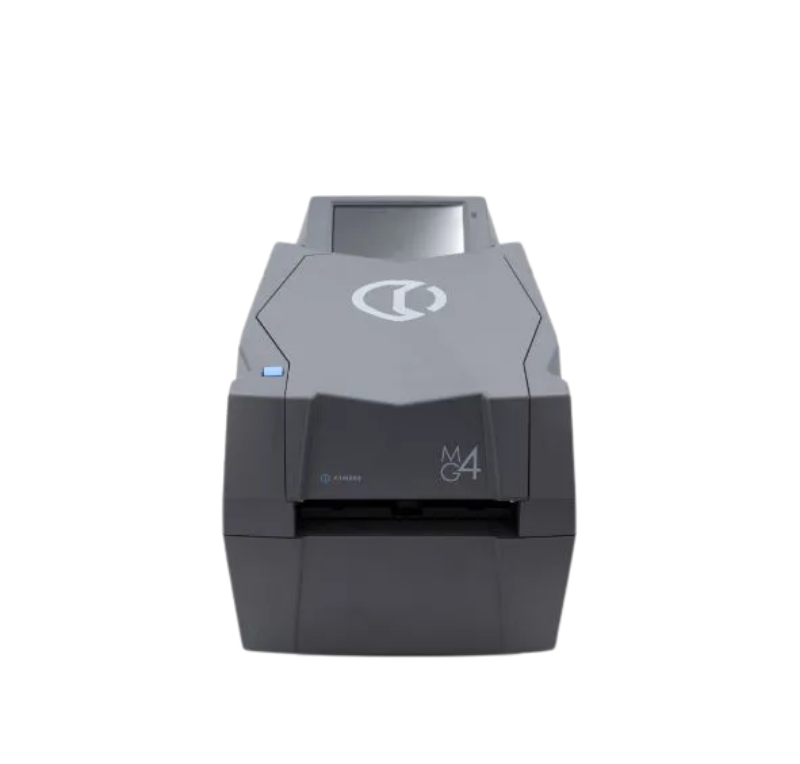

- MG4 Printer
- MiniRolly Printer
- M2-32-25-WH1 (Thermo Roll)
- M2-48-25-WH1 (Thermo Roll)
- M2-64-25-WH1 (Thermo Roll)
- TRR-055 842121 (Premium Ribbon)
cembre mg4
FEATURES
- Advanced Ribbon-Saving Technology: The Cembre MG4 is equipped with an innovative ribbon-saving system that optimizes ribbon usage for cost efficiency while delivering high-quality prints. This feature is ideal for businesses looking to reduce waste and enhance sustainability.

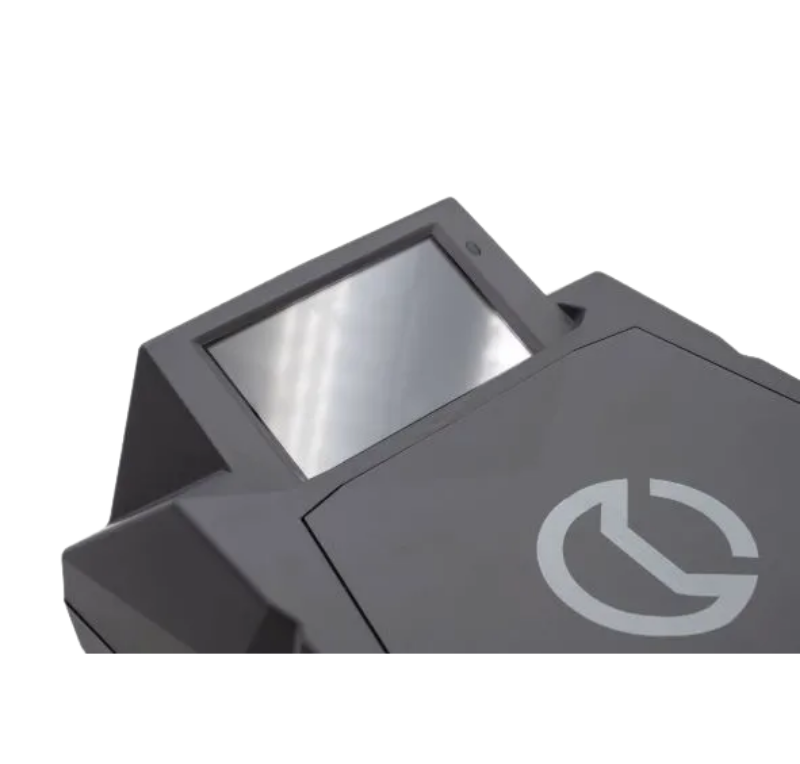

- Intuitive User Interface: The printer includes a large 5-inch touchscreen display, enabling effortless management of printing projects. This user-friendly interface ensures quick setup and seamless operation, whether in an office, production environment, or directly on-site.

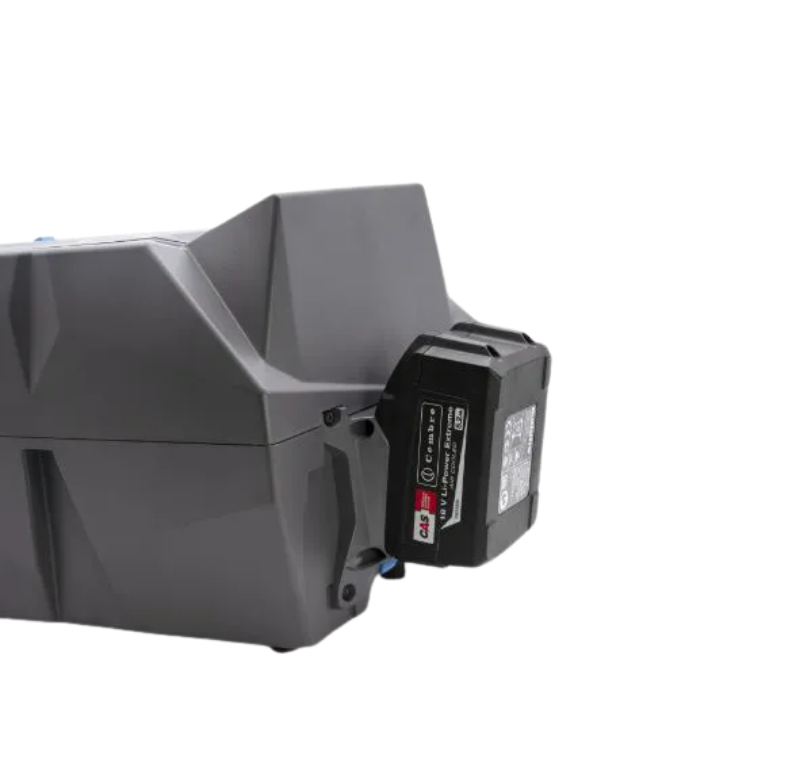

- Versatile Power Options: The Cembre MG4 can operate using either a mains power supply or CAS Alliance rechargeable batteries—a system compatible with all Cembre 18V tools. This makes the printer fully portable and highly adaptable to various job sites.

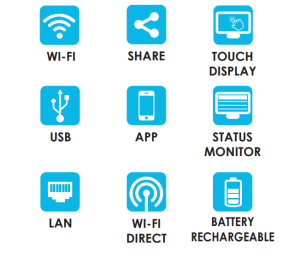

- Comprehensive Connectivity: The Cembre MG4 supports multiple connectivity options, including USB, LAN, Wi-Fi, and Wi-Fi Direct. Users can print directly from their PCs, smartphones, or tablets, ensuring flexibility in managing and executing projects.
CEMBRE MG4 PRINTER | Cable Labelling
Technical Specification
The Cembre MG4 can be connected to the network via USB, LAN, and Wi-Fi networks and can connect devices through Wi-Fi Direct. Using this solution, a project can be printed in the office and sent directly to your smartphone or other communicative messaging methods.
Additionally the Cembre MG4 can reproduce:
- Clipart Images
- Drawings
- Barcodes
- Bitmap Images (even small images!)
| Cembre MG4 Product Details | MG4 | MG4AÂ | MG4E |
| Printer: | Thermal Transfer | ||
| Supply Voltage | 24V | ||
| Current | 3.75A | ||
| Gross Weight | 10540,000 g | ||
| Printing Speed (One Sheet) | 9 Sek | ||
| Maximum Resolution | 300 x 600 DPI | ||
| Maximum Printable Surface | 140 x 110 mm | ||
| Operating Temperature | +59 to +95 | ||
| Relative Humidity (without condensation) | from 30 to 80 | ||
| Dimensions: | 409 x 236 x 240 | ||
| Weight | 6,1 (13.4) kg (lbs) | ||
| Acoustic Noise (UNI EN ISO 11202) | L(pa) < 70 dBÂ L(pCPeak) < 130 dB | ||
| Minimum system requirements to use the “GENIUSPRO” software | PC with Intel CoreTM i3 processor, equivalent or higher
4 Gb of RAM memory 2 Gb of available hard disk space, monitor resolution 1280 x 1024Â operating system : Windows 7, Windows 8, Windows 10 32/64 bit |
||
| Interfaces (connectivity) | Ethernet 10 / 100 Base – T
WI-FI WLAN 802.11b/g/n 2.4 GHz USB 2.0 Hi-Speed |
||
| Interface Templates | MG2-PLT 991002
MG2-QTB 991011 MG2-PWC 991000 |
MG2-PLT 991002
MG2-QTB 991011 MG2-PTM 991010 |
MG2-PLT 991002
MG2-QTB 991011 MG2-PTD 991007 |
| Print Ribbon | 28 x 53 x 120 | ||
CEMBRE MG4 PRINTER | Cable Labelling
Applications
The Cembre MG4 is perfect for diverse cable marking tasks, including:
- Text Printing: For clear and precise identification.
- Logos and Clipart: Adding branding or visual elements.
- Electrical Symbols: Essential for compliance and clarity.
- QR Codes and Barcodes: Simplifying asset tracking and inventory management.
Cembre MG4
Why Choose the Cembre MG4?
High-Speed Printing
- Capable of printing 112 cable tags in under 20 seconds, the MG4 delivers time-efficient production for high-demand environments.
Exceptional Print Quality
- The MG4 provides crisp and durable prints, suitable for text, logos, electrical symbols, QR codes, and vector images. It also supports various file formats, including clipart, drawings, barcodes, and bitmap images.
Durable Design
- Engineered for robustness, the MG4’s rugged construction ensures reliability in challenging work conditions. It is built to withstand frequent use while maintaining superior performance.

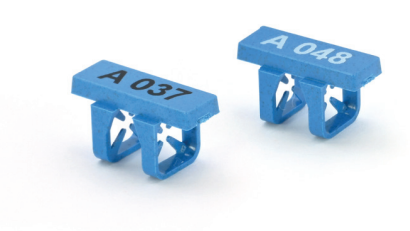

MG4 MARKING tAGS FOR INDUSTRIAL APPLICATIONS
The MG4 system offers metal-detectable tags and holders, produced with a unique additive that allows detection via metal detectors and X-rays. These tags ensure:
- High resistance to oxidation
- Easy identification in production processes
- Compatibility with third-party terminal blocks or direct application with cable ties
This feature is particularly valuable for industries requiring strict contamination control.
Cembre is a leading European manufacturer of electrical connectors, crimping tools, cutting tools, and a variety of accessories for LV (low voltage), MV (medium voltage), and HV (high voltage) power systems. Designed for switchgear and control panels, Cembre tools are ideal for installing low and medium voltage connectors.
CEMBRE MG4 Thermal Printer -DATASHEETDownload
