Steel Bellmouths for Cable Ducts

BM Steel Cable Bellmouths

BM steel bellmouths are able to guide LV-HV cables through the cable duct to avoid damage to both the cable and the duct due to separable hinged halves. The bell mouth is located at the opening of the cable duct pipe to prevent damage to the cable sheath jacket during the pulling of cables.

Range of Steel Bellmouths

  • BM60 Bellmouth Ducts 60-69mm
  • BM80 Bellmouth Ducts 76-89mm
  • BM90 Bellmouth Ducts 90-97mm
  • BM100 Bellmouth Ducts 99-106mm
  • BM125 Bellmouth Ducts 124-130mm
  • BM150 Bellmouth Ducts 148-155mm
  • BM160 Bellmouth Ducts 152-176mm
  • BM175 Bellmouth Ducts 170-180mm
  • BM200 Bellmouth Ducts 194-212mm
  • BM230 Bellmouth Ducts 220-239mm
  • BM250 Bellmouth Ducts 246-266mm

➡ Instead of brushing Cable Lubricant onto the LV MV HV cable as it enters the cable duct, why not let the steel bell mouth do both jobs and that enables the cable pulling operator to be standing outside the cable trenching area operating the hand-pump on-top? Available on all types and sizes of bell mouths. Contact us for further information.

Duct Bell Mouths | Lubricated for Cable Pulling & Laying Into Trench


BM Steel Bellmouths

BM Steel Bellmouths

BMR Steel Cable Bellmouth With Guide Roller

BM steel bellmouth with guide rollers are able to guide LV-HV cables through the cable duct to avoid damage to both the cable and the duct due to separable hinged halves. BMR bellmouths are fitted with a guide roller for additional rope guidance and protection – zinc plated.

Range of Steel Bellmouths with Guide Rollers for Ducts

  • BMR60 Bellmouth with Roller for Ducts 60-69mm
  • BMR80 Bellmouth with Roller for Ducts 76-89mm
  • BMR90 Bellmouth with Roller for Ducts 90-97mm
  • BMR100 Bellmouth with Roller for Ducts 99-106mm
  • BMR125 Bellmouth with Roller for Ducts 124-130mm
  • BMR150 Bellmouth with Roller for Ducts 148-155mm
  • BMR160 Bellmouth with Roller for Ducts 152-176mm
  • BMR175 Bellmouth with Roller for Ducts 170-180mm
  • BMR200 Bellmouth with Roller for Ducts 194-212mm
  • BMR230 Bellmouth with Roller for Ducts 220-239mm
  • BMR250 Bellmouth with Roller for Ducts 246-266mm
BMR Steel Bellmouth with Guide Roller

BMR Steel Bellmouth with Guide Roller

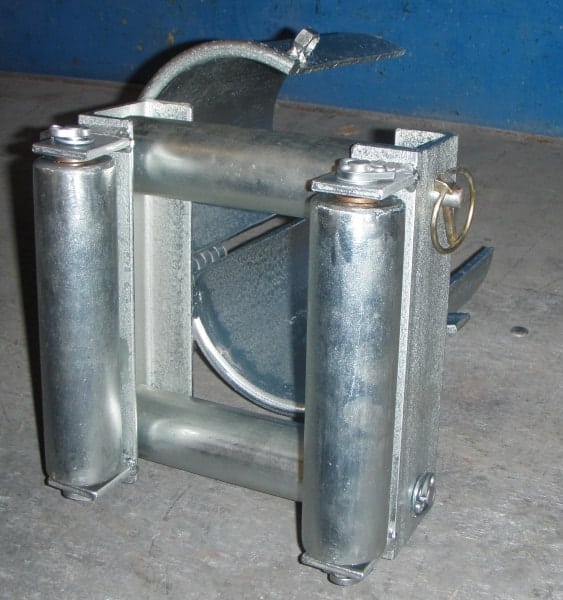

BM4R Four Rollered Cable Bellmouths

BM4R four rollered bellmouths are designed to be placed into the end of the cable ducts to allow easy passage of LV-HV cables into the duct – fitted with 4 steel cable rollers to ensure the cable does not rub on the duct edge from any angle and are fitted with an adjusting bolt to secure them inside the duct.

Range of Steel Bellmouths with Guide Rollers for Ducts

  • BM4R100 Bellmouth with Roller for Ducts 99-106mm
  • BM4R125 Bellmouth with Roller for Ducts 124-130mm
  • BM4R150 Bellmouth with Roller for Ducts 148-155mm
  • BM4R160 Bellmouth with Roller for Ducts 152-176mm
  • BM4R175 Bellmouth with Roller for Ducts 170-180mm
  • BM4R200 Bellmouth with Roller for Ducts 194-212mm
  • BM4R230 Bellmouth with Roller for Ducts 220-239mm
  • BM4R250 Bellmouth with Roller for Ducts 246-266mm
BM4R Four Rollered Bellmouths

BM4R Four Rollered Bellmouths

Also available in Plastic and Brass Bellmouths. Special Sizes can be manufactured on request.
