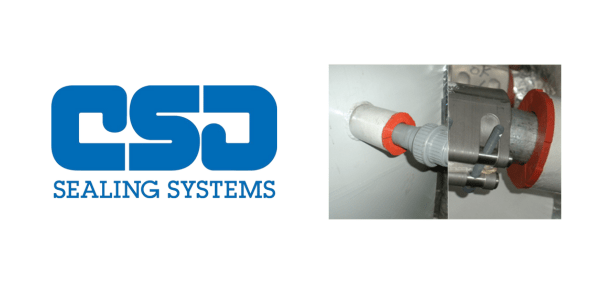

CSD DYNATITE Sealing Plug System

The CSD DYNATITE is dynamic sealing system has been specifically engineered for applications where an exceptionally high level of instantaneous sealing performance is required, and where this performance needs to be maintained over the long term. Drawing on the principles of LEAXEAL®, NOFIRNO®, and SLIPSIL® technologies, the system combines the best aspects of these proven solutions to create a pipe and cable transit sealing system that is not only easy to install but also more robust than any comparable alternatives.

Designed with long-term reliability in mind, the DYNATITE system is less vulnerable to wear and tear, offering a level of durability that ensures it remains effective throughout its service life. Unlike many other sealing systems, it requires minimal maintenance and shows no signs of degradation over time.

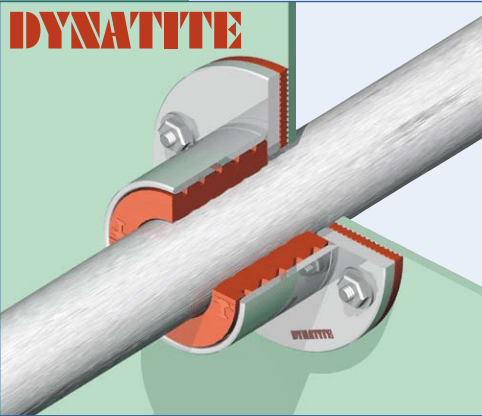

The DYNATITE technology achieves dynamic tightness through the use of advanced rubber designs in the sealing plugs, alongside high-tech conduit sleeves, making it a standout choice for demanding pipe and cable duct sealing applications.

The DYNATITE plugs can easily withstand shock pressure loads up to 15 bar (217 psi), and will return to their original shape after shock pressure subsides.

In collaboration with CSD Sealing Systems, Thorne & Derrick offers an extensive range of cable duct sealing systems designed to deliver gas-tight, watertight, fire-resistant and rodent protection sealing for cable duct entries and pipe penetrations in industrial and hazardous area Zones in both onshore and offshore solutions.

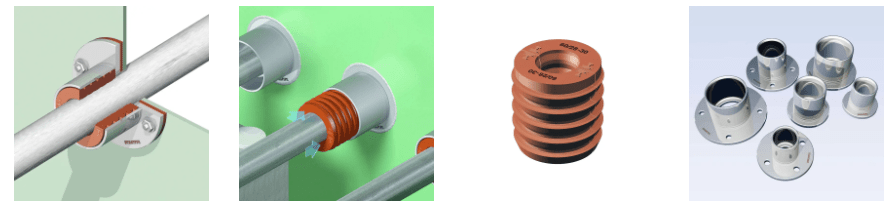

CSD DYNATITE Plugs & Collar


Sealing Plug System Benefits

The CSD DYNATITE sealing plug offers several notable benefits:

  • Minimal Conduit Length for Fire Rated Penetrations: It allows for the shortest possible conduit length, ensuring efficient fire-rated penetrations
  • Versatility: Compatible with both metallic and plastic pipes, making it suitable for a wide range of applications
  • Quick Installation: Can be installed in just a few minutes, saving time and labour
  • No Boiling or Mechanical Fixing: Unlike some other solutions, it doesn’t require any complex methods such as boiling or additional mechanical fixes, simplifying the process
  • Low Maintenance: Once installed, it requires minimal upkeep, which is ideal for long-term use
  • High Pressure Resistance: It can handle high pressure loads immediately after installation, ensuring its reliability even in demanding conditions
  • Tested Under Extreme Conditions: The plug has been tested to endure severe conditions, making it suitable for a broad range of industries and harsh environments
  • Hazardous Areas: Ideal solution for pipe and cable transits in subsea and explosion proof installations

Enhanced Survivability

  • A60 Boundary Certification: It is certified for use in A60 fire boundaries, and has been tested and approved without any insulation for A0 applications, ensuring it meets stringent fire safety standards
  • Marine Equipment Directive (MED) Type Approval: The plug is Type Approved under the MED, confirming its compliance with the highest standards for marine applications
  • Lloyd’s Register Witnessed Testing: It has undergone a 2.5 bar pressure test witnessed by Lloyd’s Register, further validating its reliability under pressure
  • TNO Laboratory Age Testing: The sealing plug has been subjected to rigorous age testing, with a proven lifespan of up to 50 years, demonstrating its long-term durability
  • Low Smoke and Toxicity Compliance: It meets DEF STAN 02-711 and DEF STAN 02-713 standards, ensuring low smoke emissions and minimal toxicity, which is vital for safety in the event of a fire

CSD DYNATITE


Typical Areas of Application

  • Columns of offshore oil rigs
  • Ballistic bulkheads in Navy vessels
  • Partitions between hazardous and non-hazardous areas
  • Blast walls
  • Explosion-proof areas (cable duct entries and pipe penetrations in industrial and hazardous area Zones in both onshore and offshore solutions)
