Filoform FiloSeal+ Re-enterable Duct Seals & Sealing System

Sealing Cable Ducts

Filoform FiloSeal+ | Sealing Cables & Pipes in Ducts or Bore Holes

Filoform FiloSeal + is a duct sealing system that is a universal solution for sealing cables and pipes in ducts or bore holes and is suitable for sealing several cables or pipes contained in one duct and also allows re-entry of the seal to add or remove cables or pipes as required.

FiloSeal + uses MD + sealant which is easily applied from a 310ml tube using a skeleton gun and is based on a silicon compound that cures with air (humidity). The unique design of the tri-flexible foam makes positioning and separation of the cables very simple while also providing cable separation and a backing for the MD+ sealant to be applied on.

After application and full curing the thixotropic MD+ forms a plastic elastomer mass with special qualities effectively sealing and bonding, while providing a high level of durability.

When installing the duct sealing system FiloSeal+, you will protect valuables from damage which is caused by gas and water leaks as the system is gas and watertight up to 1.0 bar.

FiloSeal+ is very easy to apply regardless of the type of cable scenario in the cable ducts as it uses a uniquely shaped foam piece which positions neatly around the cables or pipes in the duct.

RE-ENTERABLE CABLE DUCT SEALS & SEALING SYSTEM

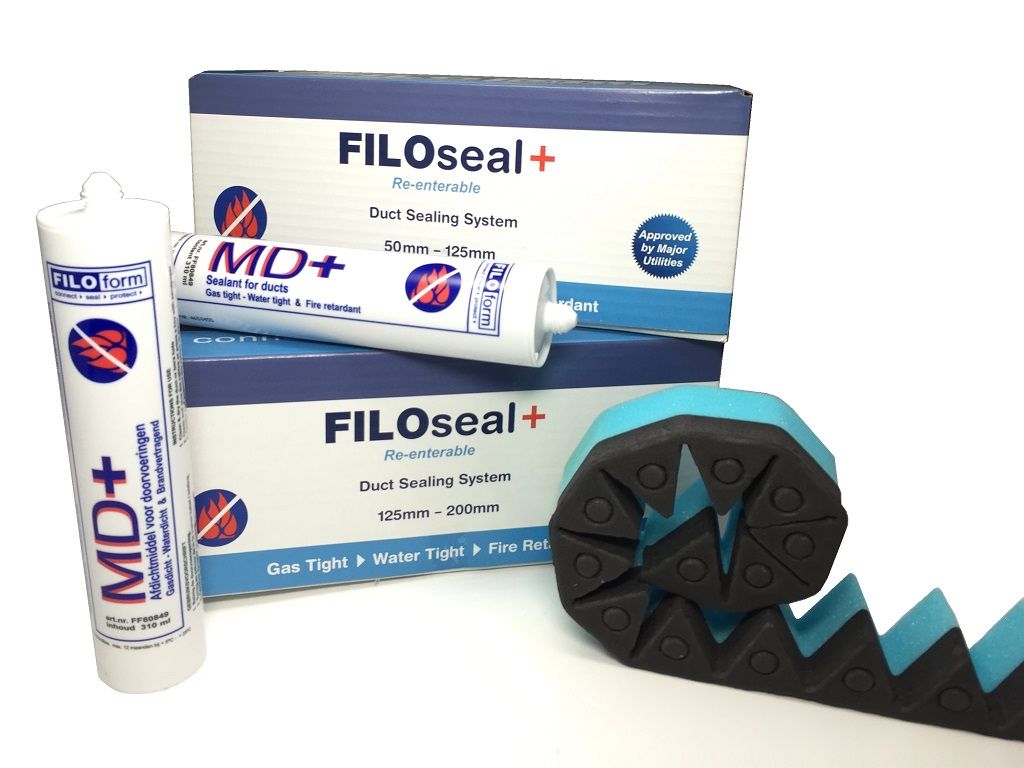

Filoform Filoseal + Uses MD + Sealant

FEATURES & BENEFITS

Flexible, one component, adhesive and sealing compound in a cartridge – (310ml)
High levels of Gas and Water tightness
Excellent adhesion
Shows Fire resistance properties
Resistant against Water, Alkaline, Chemical agents
Resistant to, Petrol, Diesel, Ethanol, ASTM oil, LPG & Many more.
Suitable for sealing underground cable ducts set out within the APEA ‘Blue Book’
Resistant to Hydrogen Sulphide / Methane and many other Gases (NedLab)
Non corrosive cable duct sealing
Solvent free
Shock absorbing seals for pipes and cable ducts
Non toxic, neutral and almost odourless
Also suitable for limiting the EX-zones during transitions (observe chemical resistance)
WIMES Compliant, (3.02 clause 7.4.3.2, d & e)
Suitable for any shaped duct / bore hole / opening
Quick and easy installation sealing system for cables
A complete kit for one duct
Seals all know materials, PVC & PE sheathed cables, PILC, (HD) PE pipes
Suitable for renovations, can be installed retrospectively
Over 25 years of operational experience for cable sealing

Sealing System Approvals

Complies with 2011 NEC Articles 225.27, 230.8, 300.5(G), 300.7 (A) on Raceway Seals, and 501.15 (B)(2)
WIMES Compliant, (3.02 2013 clause 6.3.2 d
Seals all know materials, PVC & PE sheathed cables, PILC, (HD) PE pipes
Thames Water Approved
Welsh Water Approved
Severn Trent Water Approved
Southern Water Approved
Anglian Water Approved
South East Water Approved
Yorkshire Water Approved
Bournemouth Water Approved
Scottish Water Approved

Filoform FiloSeal+ Cable Duct Seals

FILOFORM FILOSEAL+ Cable Duct Seals

TECHNICAL SPECIFICATION

Density	1.2 gr/cm³
Flow	< 2mm
Colour	red-brown
Skin over time (23C/55%RH)	± 15 minutes
Curing	3 mm / 24 hours
Hardness	30 shore A
Elongation	100%
Tensile strength	0.8 N/mm²
Operating temperature	+5°C tot +40°C
Temperature resistance	-40°C tot +120°C

FiloSeal+ – Product Specification

Filoform Part Ref	Cable Duct Seal Description	Order Unit
282580	FiloSeal + (50mm – 125mm)	per piece
282590	FiloSeal + (150mm – 200mm)	per piece
