Cable Duct Seal Kits

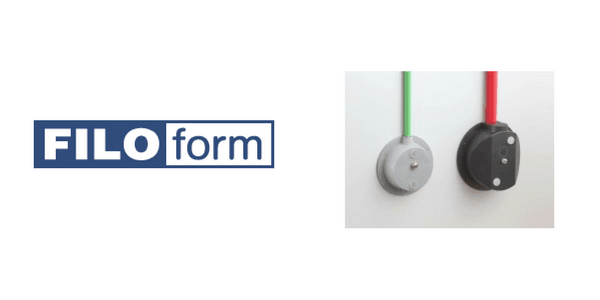

Filoform MDI Water & Gas Duct Seals

Filoform MDI is a watertight and gastight duct seals are developed for sealing ducts containing pliable cables such as coax and rubberised cables which can be easily bent to a right angle.

The MDI duct seal system allows these cables to be sealed anywhere along a wall where the cable enters a building and is suitable for ducts with a diameter of 16mm up to 60mm and cables or pipes with a diameter up to 25mm.

This water and gas cable duct seal kit is specified and used by major Electrical, Gas, & Water Utility companies in the UK and Benelux countries.

Filoform MDI Water & Gas Cable Duct Sealing Kits

Filoform MDI Water & Gas Cable Duct Sealing Kits


Cable Duct Seal Kits

Features & Benefits

  • High levels of gas and water tightness seals
  • Resistant to Hydrogen Sulphide / Methane and many other gases
  • Duct seal complies with ATEX hazardous area regulations
  • WIMES Compliant, (3.02 Clause 7.4.3.2, d,e)
  • Suitable for sealing cable ducts / bore holes
  • Quick and easy installation
  • A complete kit for one pipe or cable duct
  • Seals XLPE PVC & PE sheathed cables, PILC, (HD) PE pipes
  • Excellent mechanical strength, after curing resistant to movements, shocks and vibrations
  • Suitable for renovations, can be installed retrospectively
  • Over 25 years of operational experience

For the sealing of cable ducts providing protection to underground LV MV HV power cables please see the Filoseal range of products.

Filoform MDI Water & Gas Cable Duct Sealing System

Filoform MDI Water & Gas Cable Duct Sealing System


Duct Seals – Filoform MDI Water & Gas Cable Duct Kits

Technical Specification

Duct Seal System Properties Unit Value
Start time expansion seconds > 95
End time expansion minutes 15
Compressive strength N / cm² > 100
Density 0,5bar 30 days no leakage
Density 5m water column 30 days no leakage
Volume consistency cube 10 x 10cm no change
Temperature Cycles, -20°C tot +40°C 10 consecutive cycles no leakage
Vibration test 10 Hz/amplitude 3mm 240 hours no leakage
Axial tensile force diameter x 10 N no leakage
Resistance to bending cables 45° in 2 directions >250mm no leakage
Expansion polyurethane foam in pipe cm < 40
Chemical resistance
0,1N Na₂SO₄ 30 days no degradation
0,1N NaCl 30 days no degradation
0,1N H₂SO₄ 30 days no degradation
0,1N NaOH 30 days no degradation
Diesel 30 days no degradation
Gasoline 30 days no degradation
Resistance
Moulds good
Rodents good
Shelf life months minimal 30

Filoform MDI – Product Specification

Filoform Part Ref Cable Duct Seal Description Maximum Duct Diameter (mm) Maximum Cable Diameter In The Duct (mm) Order Unit
280220 MDI-1 25mm Duct Seal Kit Ø 16 – 32 max. Ø 12.5 per piece
280223P MDI-2 50mm Duct Seal Kit Ø 32 – 60 Ø 25 max. per piece

Cable Duct Seals

Ask About Filoform MD1-FttH multi duct designed and specified for gas and watertight sealing of FttH home entries with a maximum of 4 subducts and cables.
