LV Substation Electrical Safety Kits

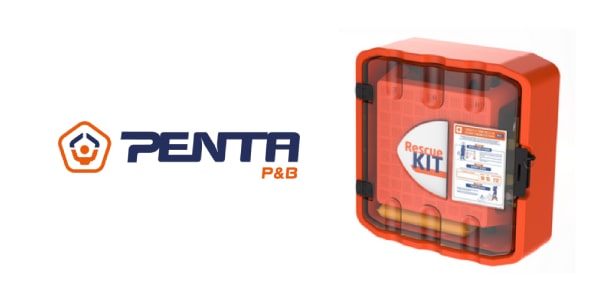

The PENTA quick access wall-mounted LV Substation Electrical Safety Kits, designed to provide life saving rescue and intervention in the event of an electrical incident on or near low voltage electrical installation/substation (also available as MV HV Substation Rescue & Intervention Electrical Safety Kits 25kV 36kV variants, which can be used for electrical car & vehicle safety).

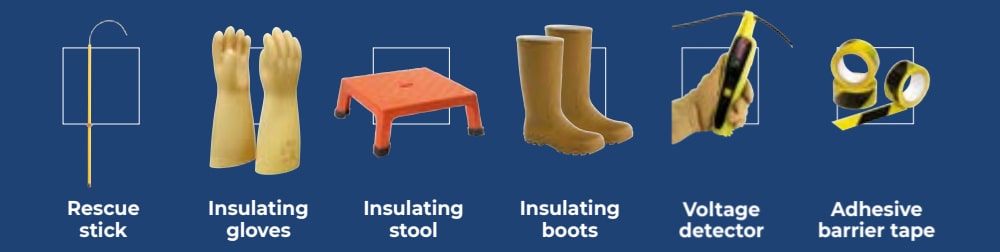

LV Substation Rescue & Intervention Safety Kits is compact with a range of life saving electrical safety equipment, such as non-contact voltage detectors for insulated or bare LV conductors, telescopic insulating sticks, rescue hooks, insulating mats and more. Useable for indoor and outdoor scenarios.
The electrical safety kit storage unit can be sold empty, with or without the tray to form a shelf, without components to accommodate other products and protect them from external aggressions. An optional add-on unit is also available to increase the safety kit storage space, which can be modulated due to the optional removable trays. The optional add-on unit is ideal for storing MV fuses horizontally or two helmets.
penta RESCUE & INTERVENTION electrical Safety Kits Specifications

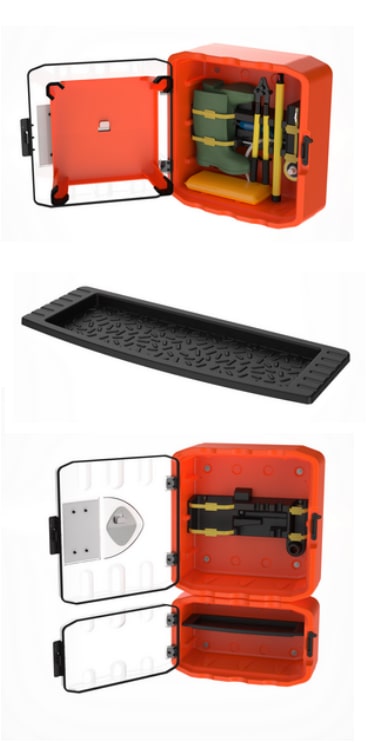

LV Substation Rescue & Intervention Electrical Safety Kits – Variants
General Safety Kit Specifications
- Weatherproof plastic case, resistant to weather, dust, splashed and marine spray (IP54)
- UV-resistant transparent door with locking handle that can accommodate a seal or padlock (max. Ø 4.8 mm shackle)
- Equipment mounting insert optimized for efficient storage and quick response
- Wall mounting kit included
Large box: 790 x 790 x 291 mm
Small box: 790 x 400 x 291 mm (optional)
Contents of the Complete PS2-BT LV Substation Electrical Safety Kits
- 1 pair of latex insulating gloves class 0 size 10 (GLB0-36-10)
- 1 protective bag for insulating gloves (TS10)
- 1 bottle of talcum powder (TS10T)
- 1 non-contact voltage detector 50V up to 1000V (UNITAGUFE)
- 1 telescopic insulating stick (PPOLF2/011APV)
- 1 rescue hook for insulating pole (CSVES)
- 1 insulating mat size 0,6×1 m (TTCL0 0,6X1M)
- 1 boundary tape (S174JN)
- 1 set of 2 adhesive posters on the door : identification of the model and instructions in case of facing
electrical accident
Safety Kit Accessories
- Small adaptable storage unit, allowing in particular to store a set of MV fuses horizontally
- Removable trays for organizing storage space
WALL-MOUNTED RESCUE Kits Benefits

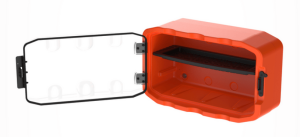

LV Substation Rescue & Intervention Electrical Safety Kits – Empty
- Rapid response to a victim facing an electrical accident.
- Transparent, UV-resistant door makes it easy to see all components from the outside.
- Storage and protection of components from dust, sea spray and splashes for outdoor use,
weatherproof (IP54). - Lockable case to prevent the borrowing of material.
- Great modularity, and possibility of adaptation according to needs (optional additional unit and possibility to organize the storage space with removable trays)
PS2-BT LV SUBSTATION ELECTRICAL SAFETY KITS SELECTION GUIDE
The following table includes further insight on the Rescue & Intervention Safety Kit nationality variants for the LV Substation Electrical Safety Kits product:
LV Substation Electrical Safety Kits Product Reference | Description |
PS2-BT-FR | Complete BT large wall-mounted rescue & intervention kit with equipment and PPE for low voltage use – French version |
PS2-BT-GB | Complete BT large wall-mounted rescue & intervention kit with equipment and PPE for low voltage use – English version |
PS2-25KV-FR | Complete BT large wall-mounted rescue & intervention kit with equipment for use up to 25kV with insulating stool – French version |
PS2-25KV-GB | Complete BT large wall-mounted rescue & intervention kit with equipment for use up to 25kV with insulating stool – English version |
PS2-36KV-FR | Complete BT large wall-mounted rescue & intervention kit with equipment for use up to 36kV with insulating stool – French version |
PS2-36KV-GB | Complete BT large wall-mounted rescue & intervention kit with equipment for use up to 36kV with insulating stool – English version |
PS2-PM | Small empty module, supplied with no components, no posters and no shelf (two shelves possible) |
PS2-GM | Large empty module, supplied with no components, no posters and no shelf (three shelves possible) |
PS2-CLAY | Single Shelf Only |
