3M Cold Shrink Indoor Terminations 12/20(24)kV
Contact us for 3M Termination Kits MV HV | Large Stocks | Competitive Prices | 3M Distributors
24kV Cable TerminationS
3M 93-EP Series | 3M Electrical | Cold Shrink Cable Connections
3M Electrical QTIII type cable terminations utilise Cold Shrink technology to terminate and connect MV HV cables – 3M 93-EP is a medium voltage cold shrink cable termination suitable for connecting single core polymeric (XLPE EPR) insulated cables up to 12/20(24)kV with copper wire screen (CWS – Unarmoured) or copper tape screen (CTS) and aluminium wire armour (AWA).
The 3M 93-EP Series Termination kits suit medium voltage (MV) power cables (up to 24kV) with a conductor cross section application range of 25sqmm-630sqmm (Copper & Aluminium).
3M QTIII Series Terminations including 3M 93-EP Series kits are not subject to the European WEEE and RoHS Directives but meet their requirements.
3M QTIII from the 93-EP Termination Series are designed for use with 12/20(24)kV single core polymeric MV power cable systems according to HD 620 (IEC 60502).

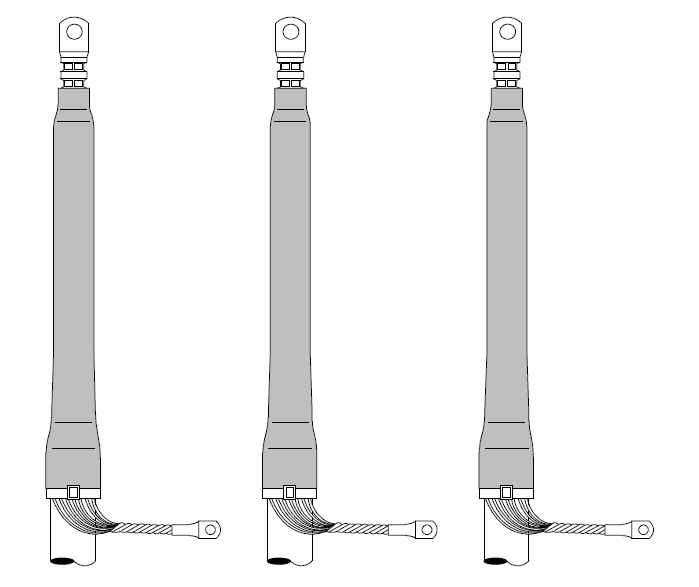

3M 93-EP Series Terminations include the Cold Shrink QTIII Silicone Termination Body with integrated stress control tube, stress control mastic, silicone elastomeric insulation and built in moisture sealing mastic layer – the version for copper tape screen cable termination variant includes additional screen connection components and is also suitable for armoured cables (AWA) when used in conjunction with a cable gland kit.

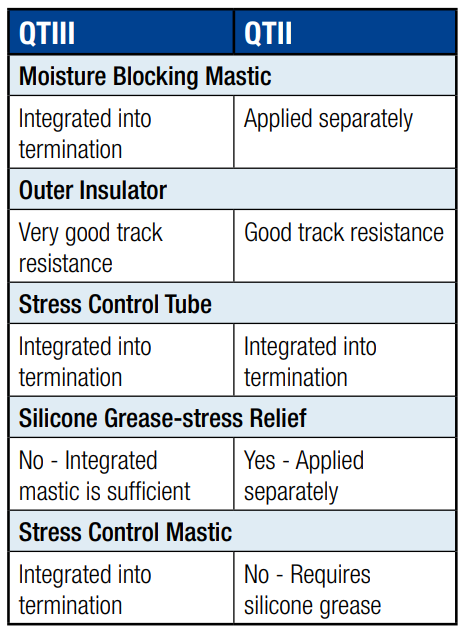

QTIII Cold Shrink | Technology Benefits for the Installer & Cable JointerÂ
- Compact Cable Terminations – suitable for confined space working in compact switchgear (Termination Length 230mm + cable lug)
- Tight Cable Sealing – termination retains resiliency and pressure even after prolonged aging and pollution exposure
- Flexible Cold Shrink – accommodates all power cable manufacturers bend radius tolerances and recommendations
- Reliability – high dry and wet insulation resistance
- Versatile – Cold Shrink cable terminations install quickly and accommodates a wide range of cable sizes
- Dependable – proven long-term reliability and safe operation at overload temperature on MV HV power system networks
- Time Efficient – reduced installation time for the Jointer compared to heat shrink, electrical taping or resins
3M QTIII Series Terminations |Â Features
- Versatile design of the prefabricated one-piece cold shrink termination body allows installation on a wide range of cable sizes and types and a fast and easy installation at temperatures ranging from – 20°C to + 50°C
- No heat or naked flame is needed during installation – no hot working required
- Solderless earth connection using Constant Force springs (where applicable for Copper Tape Screen CTS)
- No specialist cable jointing tools needed during installation – standard cable preparation tools are required
- Extras | Brass Mechanical Screen Wire Lugs for use with Copper Wire Screened Cables | Mechanical Shearbolt or Compression Cable Lugs
3M 93-EP Series Termination Selection
| 3M 24kV Cable Termination Part Number | 24kV Cable Type | Application Range Guide (sqmm) | Diameter over primary insulation (mm) | Max. Lug diameter (mm) |
| 93-EP610-1 | Copper Wire Screen | 25 – 120 | 16.3 – 27.4 | 27 |
| 93-EP620-1 | Copper Wire Screen | 95 – 240 | 20.5 – 38.9 | 39 |
| 93-EP630-1 | Copper Wire Screen | 185 – 400 | 26.7 – 45.7 | 46 |
| 93-EP640-1 | Copper Wire Screen | 500 – 630 | 38.9 – 58.9 | 59 |
| 93-EP611-1 | Copper Tape or Braided Screen | 25 – 120 | 16.3 – 27.4 | 27 |
| 93-EP621-1 | Copper Tape or Braided Screen | 95 – 240 | 20.5 – 38.9 | 39 |
| 93-EP631-1 | Copper Tape or Braided Screen | 185 – 400 | 26.7 – 45.7 | 46 |
| 93-EP641-1 | Copper Tape or Braided Screen | 500 – 630 | 38.9 – 58.9 | 59 |
| 93-EP612-1 | Copper Wire Screen / Alu Laminate | 25 – 120 | 16.3 – 27.4 | 27 |
| 93-EP622-1 | Copper Wire Screen / Alu Laminate | 95 – 240 | 20.5 – 38.9 | 39 |
| 93-EP632-1 | Copper Wire Screen / Alu Laminate | 185 – 400 | 26.7 – 45.7 | 46 |
| 93-EP642-1 | Copper Wire Screen / Alu Laminate | 500 – 630 | 38.9 – 58.9 | 59 |
Contact T&D Sales for further selection guidance on 3M Termination Kits
N2XS(F)2Y Cable Terminations 12/20 22kV 24kV

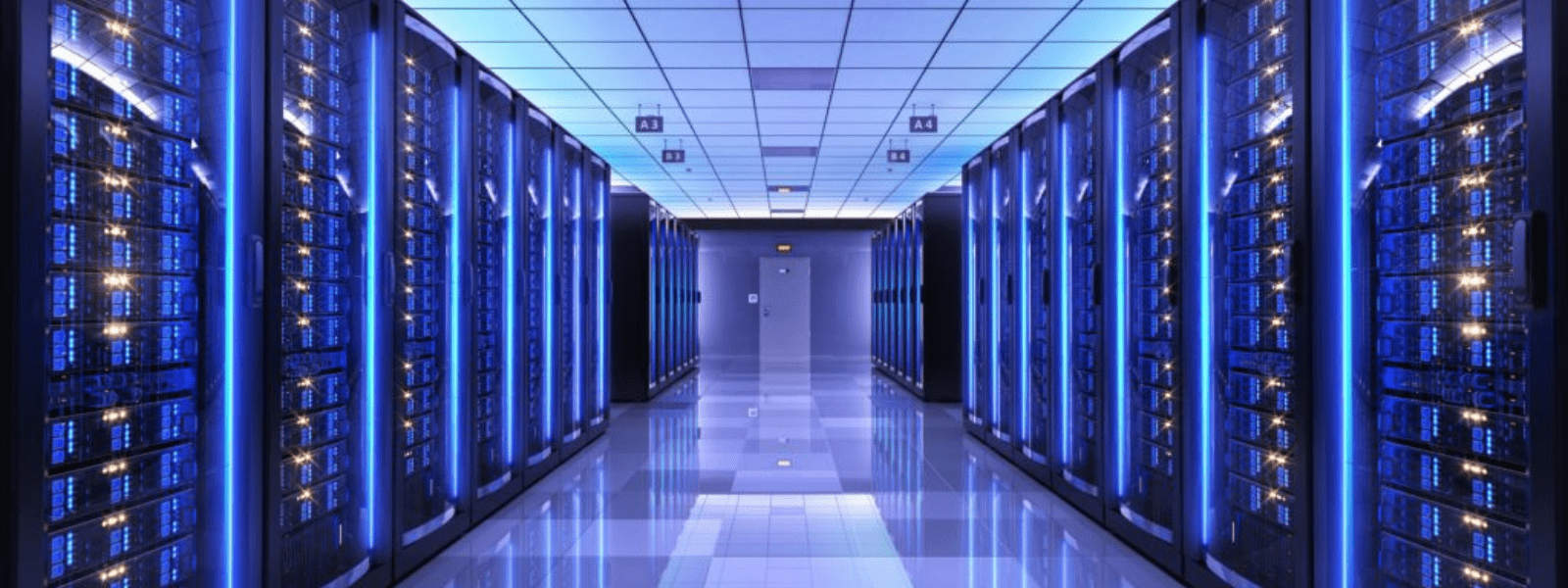

Energising Data Centres | The QTIII range of MV Terminations are approved and in widespread service throughout the data centre sector for 12/20 (24)kV connection of N2XS(F)2YÂ Medium Voltage Cables with XLPE Insulation, Copper Wire Screen and Stranded Copper Conductor to BS EN 60228 into electrical switchgear equipment.
- Part Number – 3M 93-EP Series Kit
- 20kV 22kV 24kV Cable Termination (MV Medium Voltage)
- 12/20(24)kV Cables
- Termination Type – Cold Shrink (Silicone)
- Manufacturer & Range – 3M QTIII
- Termination Indoor (Substation, Switchgear, Transformer, Motor 24kV)
- Number Of Cores – Single Core
- Application Range – 25-630sqmm
- Diameter Over Primary Insulation – 16.3 – 58.9mm
- Max. Lug Diameter Accepted (mm) – between 27-59mm
- Includes integrated stress control device, silicone elastomeric insulation & silicone tape for moisture sealing
- Armour continuity components included
- Shelf Life – 3 years when stored between -40ºC to +50ºC
- Meets & exceeds European Standard CENELEC HD 629.1 and IEC 60502-4
- 3 Core Option Available
- Also:Â 3M Cold Shrink Cable Joints MV HVÂ Â
Cable Termination Installation

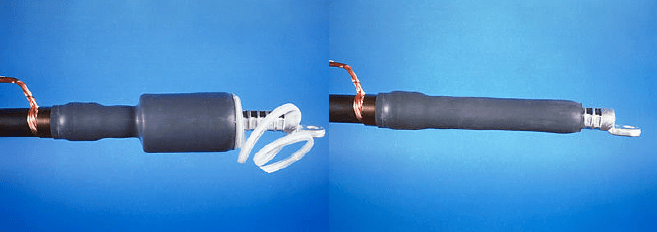

3M Cold Shrink technology ensures quick, easy and safe installation of the QTIII Termination Body by pulling and unwinding the plastic support core in counter clockwise direction. Use of special tools is not necessary. Detailed instructions for installing the 3M QTIII Series Terminations are included in each kit.
Product Identification
3M QTIII Series Termination Kits are marked with supplier name, cable cross section ranges (sqmm), voltage class and cable type, storage conditions and 3M Electrical manufacturing codes for product traceability.
Cable Termination Performance Tests
3MÂ QTIII 93-EP Series manufactured using Cold Shrink technology, meet and exceed the requirements of the European standard CENELEC HD 629.1 as well as IEC 60502-4.
Storage of Terminations
The shelf life of 3M QTIII Series Terminations is specified as 3 years. Temperature: – 40°C to +50°C.
For further specification information please click here – 93-EP Single Core Indoor 22kV.docx Â
