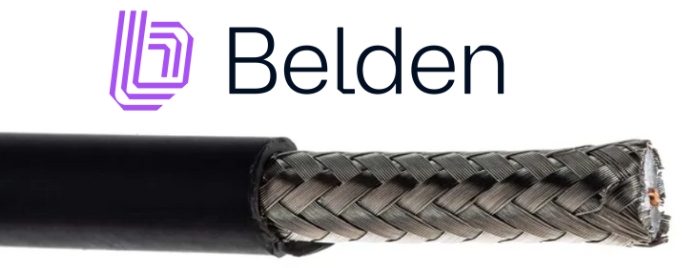

Belden 1694A Coaxial Video Cable | Digital Coax Low Loss Serial Cable
The Belden 1694A Coaxial Video Cable is a high-performance 75 Ohm RG-6 SDI cable designed for serial digital video signal transmission in marine and offshore environments. It features an 18 AWG solid bare copper conductor, foam polyethylene insulation, and a foil plus 95% tinned copper braid shield for low signal loss, high return loss strong EMI protection, and excellent performance up to 6 GHz.
The marine offshore cable, built for fixed installations both indoors and outdoors, the 1694A includes a PVC jacket, UL CMR fire rating, and UV-resistant options for open-deck and aerial use. With 82% velocity of propagation and tight impedance control, it ensures reliable video transmission for systems like UHDTV, HD-SDI 1080p, and other high-frequency applications.
Tested to UL1666 and compliant with global safety cable standards including CE, UKCA, RoHS, and REACH, the 1694A is trusted for shipbuilding, offshore platforms, and marine video and communications systems where low loss and signal integrity are critical.

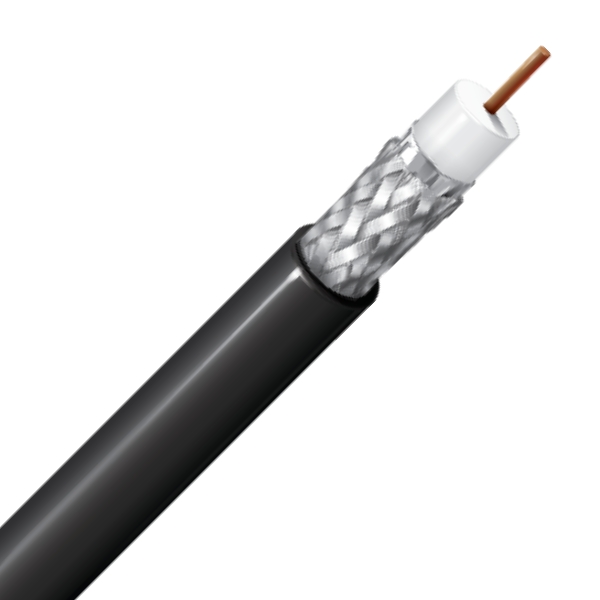

Belden 1694A Coaxial Video Cable
Thorne & Derrick International are a trusted UK stockist, supplier and distributor of certified power products worldwide. Contact our offshore marine cable experts – offering engineered solutions and technical advice, free tailored quotations and fast delivery for both UK & Exports. Ready to place an order? Check in-stock availability and delivery times with our team.
Belden 1694A Coaxial Video Cable – Technical Specifications & Performance
The table below outlines the core technical details, materials, and electrical characteristics of the Belden 1694A coaxial video cable. Trusted for high-speed digital video signal transmission in marine and offshore environments, this 75 Ohm low loss RG-6 coaxial cable features high shielding performance, mechanical durability, and broad application compliance.
Belden 1694A Coaxial Video Cable Technical Specifications |
|
|---|---|
| Specification | Cable Details |
| Impedance | 75 Ohm (Digital Coax) |
| Conductor | 18 AWG solid bare copper (0.040 in) |
| Insulation | Foamed polyethylene (PE), 0.180 in (white) |
| Shielding | 100% Duofoil® + 95% tinned copper braid |
| Outer Jacket | PVC (black), 0.274 in overall diameter |
| Electrical | Capacitance: 16.2 pF/ft Velocity of Propagation: 82% DCR: 6.4 Ω/1000ft (conductor), 3.8 Ω/1000ft (shield) |
| Performance | HD-SDI 1080p / 6 Gb/s UHDTV Return Loss: 23 dB (5–1600 MHz), 21 dB (up to 4500 MHz) Low attenuation from 1 MHz to 6000 MHz |
| Environment | Indoor/Outdoor rated (Black jacket only) UV resistant, marine offshore compliant Temperature: -30°C to +75°C (Operating) |
Belden 1694A Cable Selection Guide – Colour, Putup Types & Length
The following table includes a complete catalogue overview in a scrollable view for the extensive range of Belden 1694A cable variants. Containing all of the technical data for each individual part number variant, including colour options, putup types, measurements UPC/EAN codes and more, further aiding the ideal 1694A cable selection for your project/operations.
| Item # | Color | Putup Type | Length | UPC/EAN | Footnote |
|---|---|---|---|---|---|
| 1694A.00152 | Black | Reel | 152 m | 8719605003317 | |
| 1694A.00305 | Black | Reel | 305 m | 8719605003324 | |
| 1694A 010500 | Black | Reel | 500 ft | 612825358169 | C |
| 1694A 010Z500 | Black | ReelTuff Box | 500 ft | 612825434726 | |
| 1694A.00500 | Black | Reel | 500 m | 8719605003331 | |
| 1694A 0101000 | Black | Reel | 1,000 ft | 612825358190 | C |
| 1694A.00152 | Black | Reel | 152 m | 8719605003317 | |
| 1694A.00305 | Black | Reel | 305 m | 8719605003324 | |
| 1694A 010500 | Black | Reel | 500 ft | 612825358169 | C |
| 1694A 010Z500 | Black | ReelTuff Box | 500 ft | 612825434726 | |
| 1694A.00500 | Black | Reel | 500 m | 8719605003331 | |
| 1694A 0101000 | Black | Reel | 1,000 ft | 612825358190 | C |
| 1694A.010N1000 | Black | Reel w/ Small Barrel | 1,000 ft | ||
| 1694A.010Z1000 | Black | ReelTuff Box | 1,000 ft | 612825434702 | |
| 1694A.001000 | Black | Reel | 1,000 m | 8719605003294 | |
| 1694A.001372 | Black | Reel | 1,372 m | 8719605003300 | |
| 1694A 0105000 | Black | Reel | 5,000 ft | 612825358183 | C N |
| 1694A.01010000 | Black | Reel | 10,000 ft | 612825435631 | |
| 1694A.006Z1000 | Blue, Light | ReelTuff Box | 1,000 ft | 612825434597 | |
| 1694A.0065000 | Blue, Light | Reel | 5,000 ft | 612825356189 | C N |
| 1694A.00610000 | Blue, Light | Reel | 10,000 ft | 612825440352 | |
| 1694A.0011000 | Brown | Reel | 1,000 ft | 612825358268 | C |
| 1694A.0015000 | Brown | Reel | 5,000 ft | 612825356240 | C N |
| 1694A.00110000 | Brown | Reel | 10,000 ft | 612825440369 | |
| 1694A.09500 | Cream | Reel | 500 m | 8719605003546 | |
| 1694A.0081000 | Gray | Reel | 1,000 ft | 612825356165 | C |
| 1694A.0085000 | Gray | Reel | 5,000 ft | 612825356158 | C N |
| 1694A.00810000 | Gray | Reel | 10,000 ft | 612825435617 | |
| 1694A.08305 | Gray, Slate | Reel | 305 m | 8719605003539 | |
| 1694A.081372 | Gray, Slate | Reel | 1,372 m | 8719605003522 | |
| 1694A.06152 | Green | Reel | 152 m | 8719605003478 | |
| 1694A.06305 | Green | Reel | 305 m | 8719605003485 | |
| 1694A.061219 | Green | Reel | 1,219 m | 8719605003454 | |
| 1694A.061372 | Green | Reel | 1,372 m | 8719605003461 | |
| 1694A.064000 | Green | Reel | 4,000 m | 8719605003492 | |
| 1694A N3U1000 | Green, Mil | Reel | 1,000 ft | 612825358275 | C |
| 1694A N3UN1000 | Green, Mil | Reel w/ Small Barrel | 1,000 ft | ||
| 1694A N3U5000 | Green, Mil | Reel | 5,000 ft | 612825356257 | C N |
| 1694A N3U10000 | Green, Mil | Reel | 10,000 ft | 612825435648 | |
| 1694A.03305 | Orange | Reel | 305 m | 8719605003409 | |
| 1694A.0031000 | Orange | Reel | 1,000 ft | 612825358251 | C |
| 1694A.003Z1000 | Orange | ReelTuff Box | 1,000 ft | 612825434535 | |
| 1694A.031372 | Orange | Reel | 1,372 m | 8719605003393 | |
| 1694A.00310000 | Orange | Reel | 10,000 ft | 612825435655 | |
| 1694A.01305 | Red | Reel | 305 m | 8719605003355 | |
| 1694A.0021000 | Red | Reel | 1,000 ft | 612825358244 | C |
| 1694A.002Z1000 | Red | ReelTuff Box | 1,000 ft | 612825434443 | |
| 1694A.011372 | Red | Reel | 1,372 m | 8719605003348 | |
| 1694A.0025000 | Red | Reel | 5,000 ft | 612825356264 | C N |
| 1694A.00210000 | Red | Reel | 10,000 ft | 612825440376 | |
| 1694A.02305 | Violet | Reel | 305 m | 8719605003386 | |
| 1694A.0071000 | Violet | Reel | 1,000 ft | 612825358213 | C |
| 1694A.007N1000 | Violet | Reel w/ Small Barrel | 1,000 ft | 612825366966 | |
| 1694A.007Z1000 | Violet | ReelTuff Box | 1,000 ft | 612825434665 | |
| 1694A.021000 | Violet | Reel | 1,000 m | 8719605003362 | |
| 1694A.021372 | Violet | Reel | 1,372 m | 8719605003379 | |
| 1694A.0075000 | Violet | Reel | 5,000 ft | 612825356172 | C N |
| 1694A.00710000 | Violet | Reel | 10,000 ft | 612825435303 | |
| 1694A.07305 | White | Reel | 305 m | 8719605003515 | |
| 1694A.0091000 | White | Reel | 1,000 ft | 612825358206 | C |
| 1694A.009N1000 | White | Reel w/ Small Barrel | 1,000 ft | ||
| 1694A.009Z1000 | White | ReelTuff Box | 1,000 ft | 612825434672 | |
| 1694A.071372 | White | Reel | 1,372 m | 8719605003508 | |
| 1694A.00910000 | White | Reel | 10,000 ft | 612825435624 | |
| 1694A.04305 | Yellow | Reel | 305 m | 8719605003423 | |
| 1694A.0041000 | Yellow | Reel | 1,000 ft | 612825358237 | C |
| 1694A.004N1000 | Yellow | Reel w/ Small Barrel | 1,000 ft | ||
| 1694A.004Z1000 | Yellow | ReelTuff Box | 1,000 ft | 612825434542 | |
| 1694A.041372 | Yellow | Reel | 1,372 m | 8719605003416 | |
| 1694A.00410000 | Yellow | Reel | 10,000 ft | 612825440383 |
Belden 1694A Cable – Applications & Compliances
Belden 1694A Cable Applications
The Belden 1694A coaxial video cable is designed for precision signal transmission in marine, offshore, and industrial environments where reliability, shielding, and bandwidth are critical. This low-loss 75 Ohm RG-6 cable supports HD-SDI, UHDTV (6 Gb/s), and digital video signal delivery, while its foil + braid shielding and rugged construction ensure optimal performance under harsh conditions.
- Digital Video Broadcast Systems: Ideal for marine and offshore video transmission including HD-SDI and UHDTV signals.
- Surveillance and Security: Used in camera systems on ships, rigs, and coastal facilities for reliable video feed transmission.
- Control Room Video Distribution: Ensures low-loss video performance in AV installations across offshore platforms and marine control centres.
- Shipboard Entertainment Systems: Used in coaxial video distribution for TV and media applications in cabins and common areas.
- Outdoor and Aerial Installations: UV-resistant and suitable for suspended cable runs (black jacket versions only) when supported by messenger wire.
- Industrial Marine Instrumentation: Transmits video and data from sensors and cameras in marine engineering environments.
Coaxial Video Cable Standards & Compliances |
|
|---|---|
| Standard / Compliance | Details |
| Environmental Suitability | Indoor/Outdoor, Outdoor (black only), UV Resistant, Aerial (black only, supported by messenger wire) |
| Sustainability | CA Prop 65 Compliant |
| Flammability / Reaction to Fire | UL1666 Vertical Shaft |
| CPR Compliance | CPR Euroclass: Eca; CPR UKCA Class: Eca |
| NEC / UL Compliance | CMR |
| CEC / C(UL) Compliance | CMG |
| European Directive Compliance | EU CE Mark, RoHS 2 (2011/65/EU), REACH, WEEE Directive |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Plenum Number | 1695A |
About Belden Cables
Thorne & Derrick are proud stockists, suppliers and distributors of Belden Cables is a global leader in high-performance cabling solutions for demanding environments, including marine, offshore, industrial, and broadcast sectors. Their portfolio includes coaxial video cables, data cables, and signal transmission solutions designed for reliability and compliance.
Products like the Belden 1694A coaxial video cable offer low-loss performance and superior shielding for digital video signals, HD-SDI, and UHD applications. Belden cables meet international standards including UL, CMR, RoHS, REACH, and CPR—making them a trusted choice for marine and offshore cable installations worldwide.
Contact our team of experts – offering 40+ years of industry experience, we distribute the most extensive range of 11kV 33kV 66kV MV HV Medium & High Voltage Cable Joints, Terminations & Connectors from manufacturers including Südkabel, 3M, Prysmian, Nexans Euromold, Elastimold, Pfisterer CONNEX & SEANEX and Shrink Polymer Systems.
Belden 1694A Coaxial Video Cable Technical DatasheetDownload
