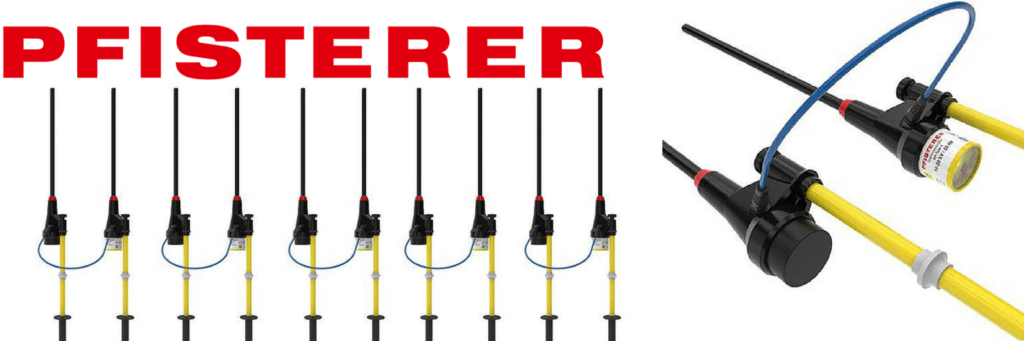

Pfisterer Deltameter 5 is a 11kV phase comparator suitable for indicating the voltage difference between two phases.
When inter-connecting different medium voltage systems, protective devices may be actuated as a result of incorrect phase and voltage levels. This can occur even though phase relationship tests with IEC 61481 phase comparators have indicated ‘phase coincidence’. In these instances the Deltameter 5 can be used to supplement the phase relationship tests with phase comparators.
The 11kV phase comparator indicates the quantitative voltage difference between two phases on a four-digit segment display with a resolution of 10 V. The Deltameter 5 thus provides a highly precise decision-making tool for imminent switching operations.
11kV Phase Comparator – Technical Specification
- Double pole type with two insulating poles and two convenient handles
- For use on 3-phase systems with a nominal frequency of 50 Hz and nominal voltage between 1 and 13 kV
- Can be used in rain or snow
- 7-segment 4-digit LED display, digit height 14 mm
- 10 V resolution
- ±5 % accuracy on a measured value of +30 V
- Connecting cable length 1000 mm
- Artificial leather case included
| Pfisterer Part Number | 930 450 001 |
|---|---|
| Nominal voltage Un (kV) | 1 – 13 |
| Nominal frequency fN (Hz) | 50 |
| Voltage type | AC |
| Application | Switchgear / Overhead Line |
| Type of device | complete |
| Language | de |
| Total length LG (mm) | 1190 |
| Penetration depth Ai (mm) | 520 |
