2 Core 185sqmm XLPE SWA Armoured BS6724 Cables LV

2 Core BS6724 Cables

185 sqmm

Prysmian Afumex armoured power cables manufactured to British Standard Approval BS6724 with LSZH Low Smoke Zero Halogen bedding compound and cable sheath – BS6724 2 core cable is constructed using plain annealed copper stranded (Class 2) conductors with cross sectional area of 185sqmm.

2 Core 185 sqmm XLPE SWA

Features

• Nominal cross sectional area: 185sqmm
• Cable type: BS6724
• Cable Voltage: 600/1000 Volts
• Sheath: Low Smoke & Zero Halogen (LSZH)
• Approx. overall diameter: 42.4mm
• Approx. Dia. Under Armour mm: 33.5mm
• Nominal diameter of armour wires mm: 2.5mm
• Approx. cable weight: 5600kg
• Maximum conductor resistance at 20°C: 0.00991ohms/km
• DC or single phase AC clipped direct Amps: 515
• DC or single phase AC free air Amps: 539
• Volt drop DC mV/A/m: 0.25
• Volt drop single phase AC touching mV/A/m: 0.29
• Low Smoke Zero Halogen Cables

Cable Accessories

The following table enables the correct selection of Cable Accessories to suit 2 core 185sqmm, XLPE with steel wire armour (SWA) and low smoke zero halogen (LSZH) outer cable sheath manufactured in accordance with BS6724.

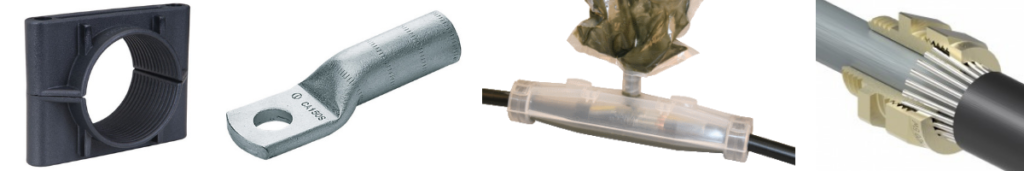

Cable Cleats | Cable Lugs | Cable Joints | Cable Glands | LV MV HV Cables

➡ See Prysmian for a complete range of LSZH Low Smoke Zero Halogen cable accessories including joints, glands, cleats and cable terminations for use with Afumex cables.

Data Sheets

• BS6724 Cable – Low Smoke Zero Halogen Prysmian Afumex Cable
