Duct Seal Kit | Filoform MDI-1 (25mm)
25mm Duct Seal Kit | Filoform MDI-1
Duct Seal Kit
Filoform MDI-1 | Pipe & Sealing Systems for Cable Ducts & Bore Holes

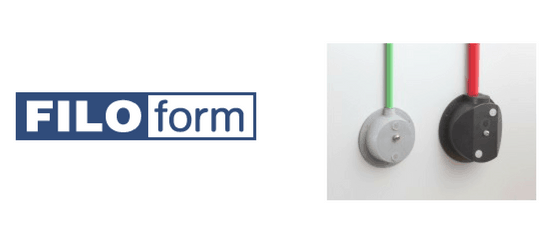

Filoform MDI-1 is a watertight and gastight cable duct seal kit developed for sealing ducts containing pliable cables such as coax and rubberised cables which can be easily bent to a right angle.
The MDI-1 duct seal system allows these cables to be sealed at locations along a wall where the cable enters a building and is suitable for ducts with a diameter of 16mm up to 32mm and cables or pipes with a diameter up to 12.5mm.
Filoform MDI-1 kit is specified and used by major Electrical, Gas, & Water Utility companies in the UK and Benelux countries for cable sealing applications.
Filoform MDI-1 Water & Gas Cable Duct Sealing System
Filoform MDI Duct Seal Kit
Product Specification
| Filoform Part Ref | Cable Duct Seal Description | Maximum Duct Diameter (mm) | Maximum Cable Diameter In The Duct (mm) | Order Unit |
|---|---|---|---|---|
| 280220 | MDI-1 25mm Kit | Ø 16 – 32 | max. Ø 12.5 | per piece |
| 280223P | MDI-2 50mm Kit | Ø 32 – 60 | Ø 25 max. | per piece |
Filoform manufacture and supply quality products and solutions to connect, seal and protect low, medium and high voltage underground cable networks.
Filoform MDI Water & Gas Cable Duct Sealing KitsDownload
