Cable Termination
3M 92-EB-61-3 | 3M Electrical | Cold Shrink

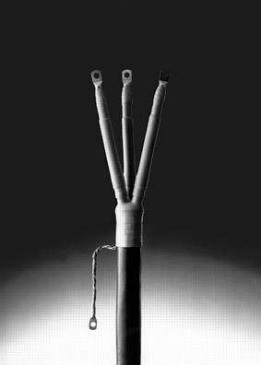

These 3M Electrical QTII type cable terminations utilise Cold Shrink technology to terminate and connect MV HV cables – 3M 92-EB61-3 is a medium voltage cold shrink cable termination suitable for connecting 3 core polymeric (XLPE EPR) insulated cables up to 11kV with copper wire screened.
The kit suits 11kV cables with 35sqmm, 50sqmm, 70sqmm 3 core conductors.
Contact us for price, delivery and technical support about 3M 92-EB-61-3 Indoor Termination Kit.
3M 92-EB61-3
➡ 3M 92-EB-61-3 QTII Indoor Cable Termination
| Voltage | Insulation | Type | Cores | Conductors | Dia Primary Insulation |
| 6.6/11 (12)kV | Polymeric XLPE EPR |
Copper Tape Screen / Armour | 3 core | 35-70sqmm | 14.2 – 22.1mm |
Order Code – 3M 92-EB61-3
Contact T&D Sales for further selection guidance on 3M Termination Kits:
- Part Number – 3M 92-EB61-3
- 11kV Cable Termination (MV Medium Voltage)
- 6.6/11(12) kV Cables
- Termination Type – Cold Shrink (Silicone)
- Manufacturer & Range – 3M QTII Termination
- Termination Indoor (Substation, Switchgear, Transformer, Motor 11kV)
- Number Of Cores – 3 Core
- Conductors – 35-70sqmm
- Diameter Over Primary Insulation – 14.2 – 22.1mm
- Max. Lug Diameter Accepted (mm) – 22mm
- Includes integrated stress control device, silicone elastomeric insulation & silicone tape for moisture sealing
- Includes armour continuity components, re-jacketing tubes and three core cold shrink breakout boots
- Shelf Life – 3 years when stored between -40ºC to +50ºC
- Meets & exceeds European Standard CENELEC HD 629.1 and IEC 60502-4
- Single Core & Outdoor Pole-Mounted Terminations Available
- Also: 3M Cold Shrink Cable Joints MV HV
3M termination kits include sufficient components to terminate a 3 core cable, including breakout. Bushing boots optional.
Product Identification
3M QTII Series Cold Shrink Termination kits are marked with supplier name, cable cross section ranges (sqmm), voltage class and cable type, storage conditions and 3M manufacturing codes for product traceability.
Termination Performance Tests
3M™ QTII 92-EB Series Cable Terminations, manufactured using Cold Shrink technology, meet and exceed the requirements of the European standard CENELEC HD 629.1 as well as IEC 60502-4.
Cold Shrink Storage
The shelf life of 3M 92-EB61-3 cold shrink terminations is specified as 3 years. Temperature: – 40°C to +50°C.
| 3M 11kV Cable Termination Part Number | 11kV Cable Type | Application Range Guide (sqmm) | Diameter Over Primary Insulation (mm) | Maximum Lug Diameter Accepted (mm) |
| Standard Cable Termination Tail Length | ||||
| 3M 92-EB61-3 | Copper Tape Screen / Armour | 35-70sqmm | 14.2–22.1mm | 22mm |
| 3M 92-EB62-3 | Copper Tape Screen / Armour | 70–95sqmm | 16.5–22.1mm | 22mm |
| 3M 92-EB63-3 | Copper Tape Screen / Armour | 120-150sqmm | 19.8–33.0 mm | 33mm |
| 3M 92-EB64-3 | Copper Tape Screen / Armour | 185-300sqmm | 22.0–33.0mm | 33mm |
| Short Cable Termination Tail Length | ||||
| 3M 92-EB614-3 | Copper Tape Screen / Armour | 35–95sqmm | 15.9-30.0mm | 30mm |
| 3M 92-EB624-3 | Copper Tape Screen / Armour | 120–185sqmm | 22.6–41.4mm | 41mm |
| 3M 92-EB634-3 | Copper Tape Screen / Armour | 240–300sqmm | 27.3–49.3mm | 49mm |
Watch Video ➡ 3M Cold Shrink Terminations – QTII Standard Terminations
3M QTII Cold Shrink Cable Terminations | MV HV | 3.3/6.6(7.2)kV 11kV 33kV 26/45(52)kV
3M termination kit supplied as set of 3 single phases – compatible with Cembre hexagonal crimp high voltage cable lugs or Pfisterer Sicon mechanical shearbolt cable lugs.
