11kV Cable Termination Cold Shrink – 3M 92-EP629-1

Single Core Indoor Cable Termination

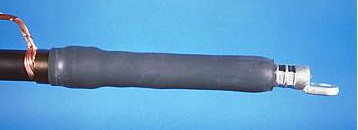

These 3M QTIII type cable terminations utilise Cold Shrink technology to terminate and connect MV HV cables – 3M 92-EP629-1 is a high voltage cold shrink cable termination suitable for connecting single core polymeric (XLPE EPR) insulated cables up to 11kV with copper tape screen / armour.

Cable termination suits 11kV cables with 50sqmm, 70sqmm, 95sqmm single core conductors and is suitable for installation within indoor/enclosed environments such as medium/high voltage air insulated cable boxes up to 11kV.

92-EP629-1 cable terminations include copper tape screen earthing kit – the 11kV cable conductors can be terminated using either crimp cable lugs or shearbolt lugs.

3M QTIII Series Terminations are not subject of the European WEEE and RoHS Directives but meet their requirements – complete range of Cold Shrink joints are available for the repair and connection of medium/high voltage power cable networks at 11kV/33kV.

Order Code – 3M 92-EP629-1

Contact T&D Sales for further selection guidance on 3M Cold Shrink Terminations:

Manufacturer – 3M Electrical
Part Number – 3M 92-EP629-1
11kV Cable Termination (HV High Voltage)
Cable Termination Type – Cold Shrink (Silicone)
Manufacturer & Range – 3M QTIII Termination
Termination – Indoor (Substation, Switchgear, Transformer, Motor 11kV)
Number Of Cores – Single Core
Conductors – 50-95sqmm
Diameter Over Primary Insulation – 16.3 – 27.4mm
Max. Lug Diameter Accepted (mm) – 30mm
Includes integrated stress control device, silicone elastomeric insulation & silicone tape for moisture sealing
Armour continuity components included
Shelf Life – 3 years when stored between -40ºC to +50ºC
Meets & exceeds European Standard CENELEC HD 629.1 and IEC 60502-4
3 Core & Outdoor Pole-Mounted Terminations Available
Also: 3M Cold Shrink Cable Joints MV HV

3M 92-EP629-1 Termination

Installation

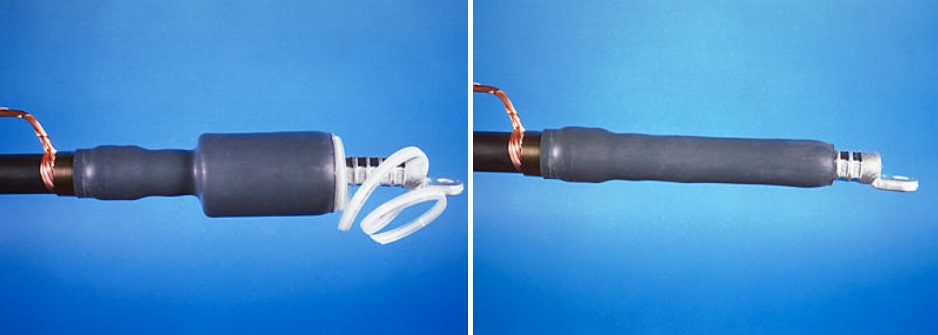

3M cold shrink technology ensures quick, easy and safe installation of the QTIII Termination Body by pulling and unwinding the plastic support core in counter clockwise direction. Use of special tools is not necessary. Detailed instructions for installing the 3M QTIII Series Terminations are included in each kit.

3M Product Identification

3M QTIII Series Cold Shrink Termination kits are marked with supplier name, cable cross section ranges (sqmm), voltage class and cable type, storage conditions and 3M manufacturing codes for product traceability.

Termination Performance Tests

3M QTIII 92-EP Series Terminations meet and exceed the requirements of the European standard CENELEC HD 629.1 as well as IEC 60502-4.
See Independent Test Report No. I0419-0E

Cold Shrink Storage

The shelf life of 3M 92-EP629-1 Cold Shrink terminations is specified as 3 years.
Temperature: – 40°C to +50°C.

3M 11kV Cable Termination Part Number	11kV Cable Type	Application Range Guide (sqmm)	Diameter Over Primary Insulation (mm)	Maximum Lug Diameter Accepted (mm)
3M 92-EP621-1	Copper Wire Screen	50-95sqmm	16.3-27.4mm	30mm
3M 92-EP631-1	Copper Wire Screen	120-400sqmm	20.5-38.9mm	39mm
3M 92-EP641-1	Copper Wire Screen	500-630sqmm	26.7-45.7mm	45mm
3M 92-EP656-1	Copper Wire Screen	800-1000sqmm	38.9-58.9mm	59mm
3M 92-EP629-1	Copper Tape Screen / Armour	50-95sqmm	16.3-27.4mm	30mm
3M 92-EP639-1	Copper Tape Screen / Armour	120-300sqmm	20.5-38.9mm	39mm
3M 92-EP649-1	Copper Tape Screen / Armour	400-630sqmm	26.7-45.7mm	45mm
3M 92-EP623-1	Copper Tape Screen / Armour and/or Lead Sheath	50-95sqmm	16.3-27.4mm	30mm
3M 92-EP633-1	Copper Tape Screen / Armour and/or Lead Sheath	120-150sqmm	20.5-38.9mm	39mm
3M 92-EP643-1	Copper Tape Screen / Armour and/or Lead Sheath	185-400sqmm	20.5-38.9mm	39mm
3M 92-EP653-1	Copper Tape Screen / Armour and/or Lead Sheath	500-630sqmm	26.7-45.7mm	45mm

3M termination kit supplied as set of 3 single phases – compatible with Cembre hexagonal crimp high voltage cable lugs or Pfisterer Sicon mechanical shearbolt cable lugs.
