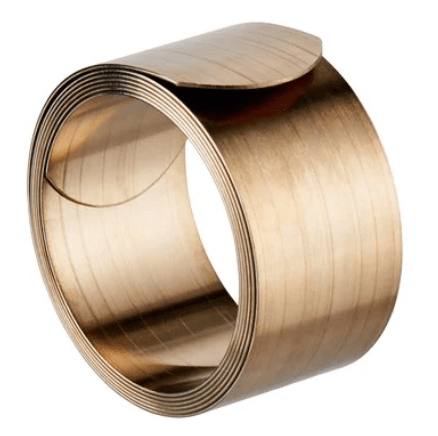

3M P65 Constant Force Springs
3M P65 Constant Force Springs
3M P65
- Inner Diameter | 32.0mm
- Spring Width | 20.0mm
- Spring Tape Length | 710mm
- Cable Diameter Minimum | 44.0mm
- Cable Diameter Maximum | 70.0mm
- Order Code 3M P65
A complete range of constant force springs manufactured by 3M Electrical for the connection, repair and bonding of LV MV HV cables.
3M Constant Force Springs
Product Range
| Part Number | Product Dimensions as Supplied | Application Range | |||
| Inner Diameter (mm) | Spring Width (mm) | Spring Tape Length (mm) | Minimum Diameter (mm) | Maximum Diameter (mm) | |
| 3M P59 | 3.5 | 6.0 | 80 | 4.0 | 10.0 |
| 3M P60 | 7.5 | 10.0 | 175 | 9.0 | 15.0 |
| 3M P61 | 11.0 | 16.0 | 225 | 14.0 | 22.0 |
| 3M P62 | 14.5 | 16.0 | 295 | 18.5 | 29.0 |
| 3M P63 | 18.5 | 16.0 | 375 | 23.5 | 37.0 |
| 3M P64 | 25.0 | 16.0 | 505 | 31.0 | 50.0 |
| 3M P65 | 32.0 | 20.0 | 710 | 44.0 | 70.0 |
| 3M P66 | 44.0 | 20.0 | 935 | 58.0 | 94.0 |
| 3M P67 | 57.0 | 20.0 | 1250 | 70.0 | 110.0 |

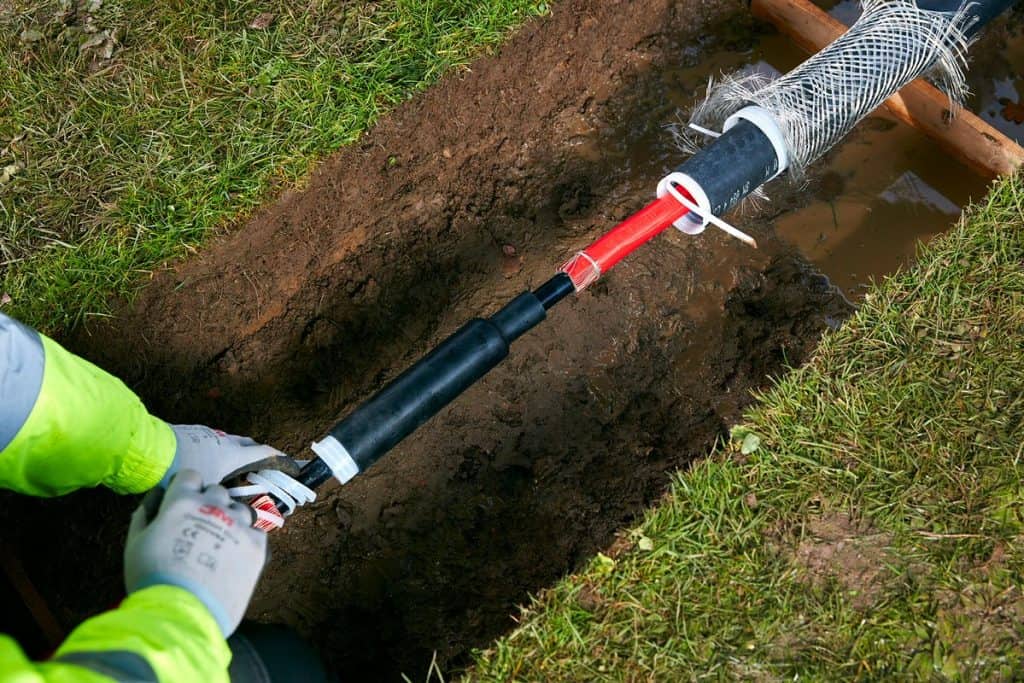

Jointing & Connection of LV MV HV Cables
Should you require assistance with the supply or selection of ancillary components to enable to Jointing of power, control or instrumentation for LV MV HV electrical systems please do not hesitate to contact us.
Cleaning Wipes | Sheath Repair | Lubricant | Tools | Tapes | Cold Shrink | Joints | Lugs | Cleats
Download
