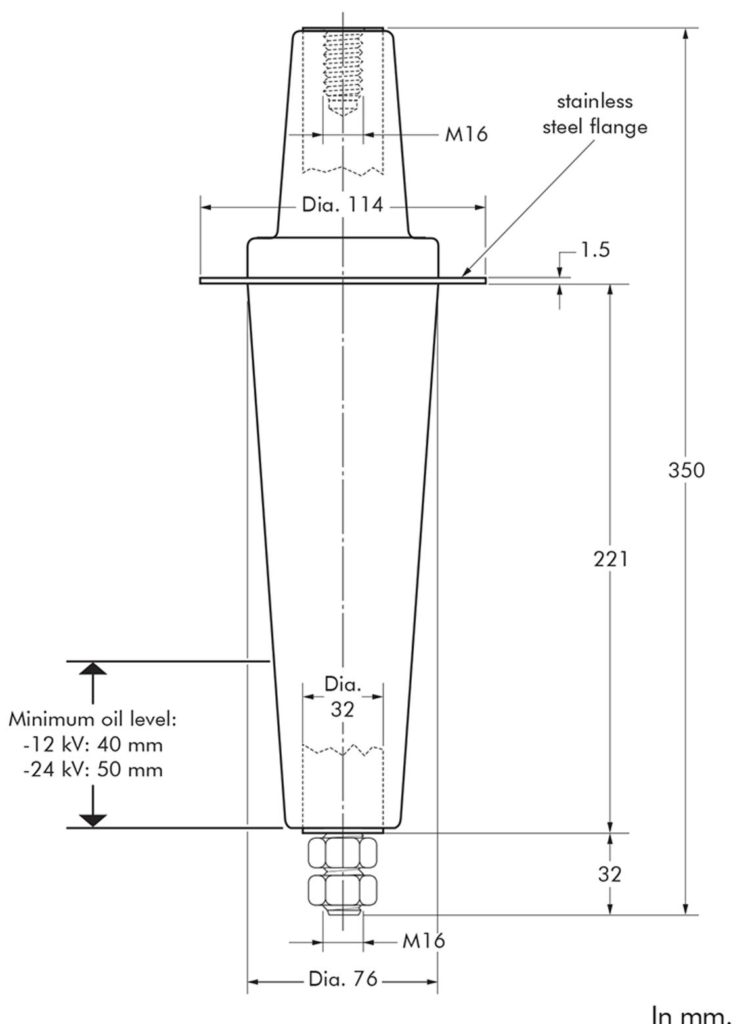

672T1 Nexans Euromold – Interface D – Equipment Bushing
- Interface D Connector
- Up to 24kV 1250A
- Euromold Equipment Bushing
International Standards – CENELEC EN 50180; CENELEC HD 629.1; IEC 60137
Equipment bushing for use in equipment insulated with oil fluid, typically for transformers, switchgear, capacitors.
For complete technical and specification on this Interface D product please see Nexans Euromold 672T1
- Maximal partial discharge at 2Uo 10pC
- Rated Voltage Uo/U (Um) – 12.7 / 22 (24) kV
- Impulse Voltage – 125kV
