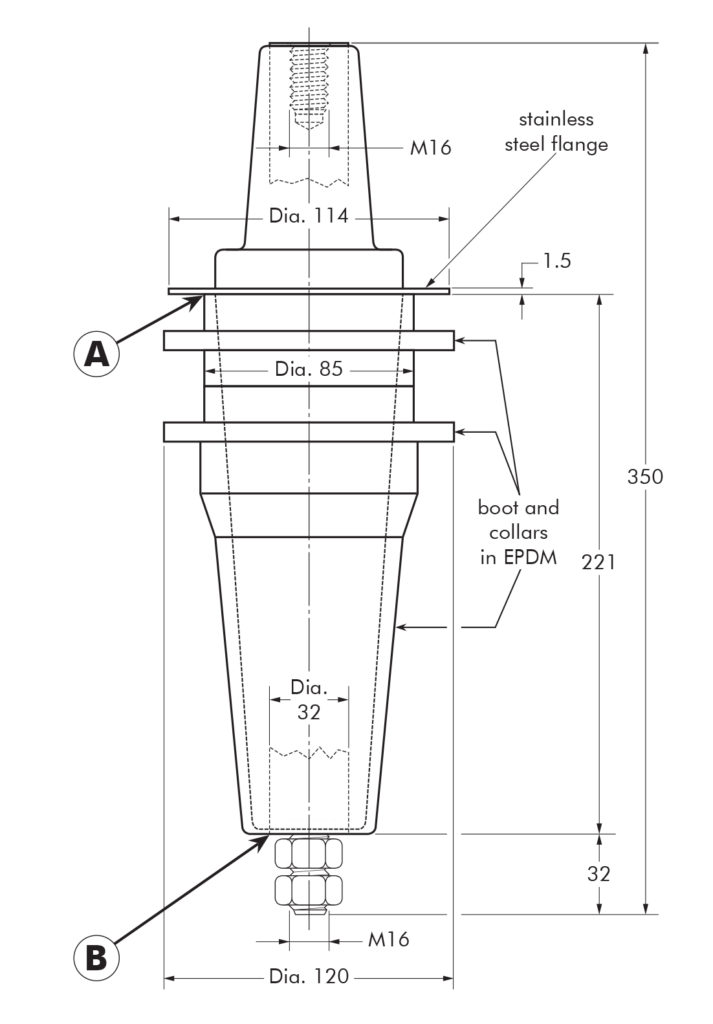

672TBC Nexans Euromold – Interface D – Equipment Bushing

672TBC

Description

International Standards – CENELEC EN 50180; CENELEC HD 629.1; IEC 60137

Application

Equipment bushing for use in equipment insulated with oil fluid, typically for transformers, switchgear, capacitors.

For complete technical and specification on this Interface D product please see Nexans Euromold 672TBC

Characteristics

  • Maximal partial discharge at 2Uo 10pC
  • Rated Voltage Uo/U (Um) – 12.7 / 22 (24) kV
  • Impulse Voltage – 125kV



152SR

152SR

High Voltage Substation Cable Accessories

Thorne & Derrick distribute LV, MV & HV Jointing, Earthing & Electrical Eqpt to enable the construction and maintenance of HV Substations – this includes cable cleats for short circuit retention and clamping of power cables and water/gas tight and fire resistant cable transits and duct seals for sealing power, control and instrumentation cables.

Complete range of Cold Shrink terminations and cable joints for indoor substation and overhead line connection of MV HV EHV cables at 11kV, 33kV, 66kV, 132kV and up to 400kV – for the jointing and termination of 33kV cables into gas insulated switchgear (GIS) the Pfisterer CONNEX range of HV plug-in cable connectors are specified for inner cone cable termination.

Substation earthing components comprising copper earth tapes, earth rods, earth bars and associated ancillaries – portable earthing kits provide protection to utility workers against electrocution from inadvertent energisation of power cables or overhead line conductors.

MV HV Joints Terminations Connectors
