750LR & 775LR Nexans Euromold – Interface E – Tee Connector

750LR & 775LR

Connector Description

International Standards – CENELEC EN 50180; CENELEC HD 629.1; IEC 60137

Medium Voltage Application

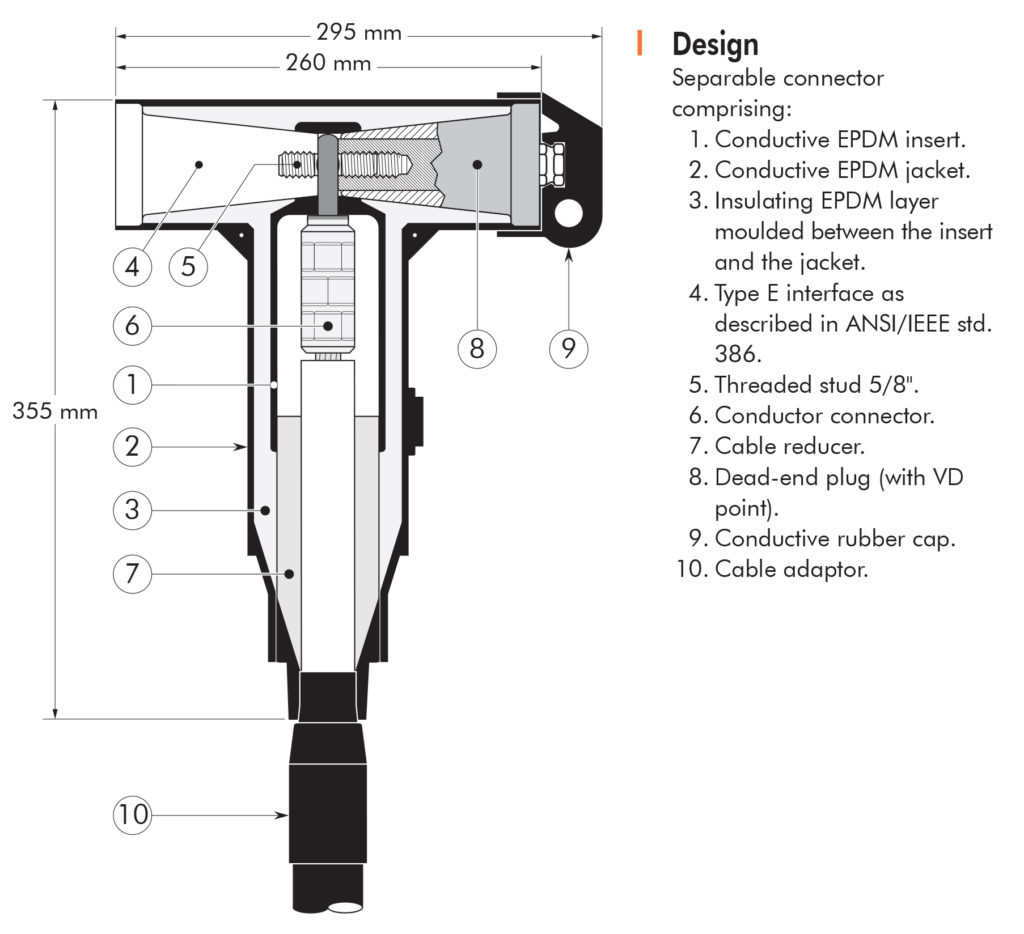

Separable tee connector (bolted 5/8″ type) designed to connect polymeric insulated cable to equipment (transformers, switchgear, motors). 750LR & 775LR connects cable to cable, using the appropriate mating part.

Characteristics

  • Technology Slip-on
  • Connector Shape T-shaped
  • Maximal partial discharge at 2Uo 36pC
  • Rated Voltage Uo/U (Um) – 18 / 30 (36) kV
  • Impulse Voltage – 170kV




High Voltage Substation Cable Accessories

Thorne & Derrick distribute LV, MV & HV Jointing, Earthing & Electrical Eqpt to enable the construction and maintenance of HV Substations – this includes cable cleats for short circuit retention and clamping of power cables and water/gas tight and fire resistant cable transits and duct seals for sealing power, control and instrumentation cables.

Complete range of Cold Shrink terminations and cable joints for indoor substation and overhead line connection of MV HV EHV cables at 11kV, 33kV, 66kV, 132kV and up to 400kV – for the jointing and termination of 33kV cables into gas insulated switchgear (GIS) the Pfisterer CONNEX range of HV plug-in cable connectors are specified for inner cone cable termination.

Substation earthing components comprising copper earth tapes, earth rods, earth bars and associated ancillaries – portable earthing kits provide protection to utility workers against electrocution from inadvertent energisation of power cables or overhead line conductors.
