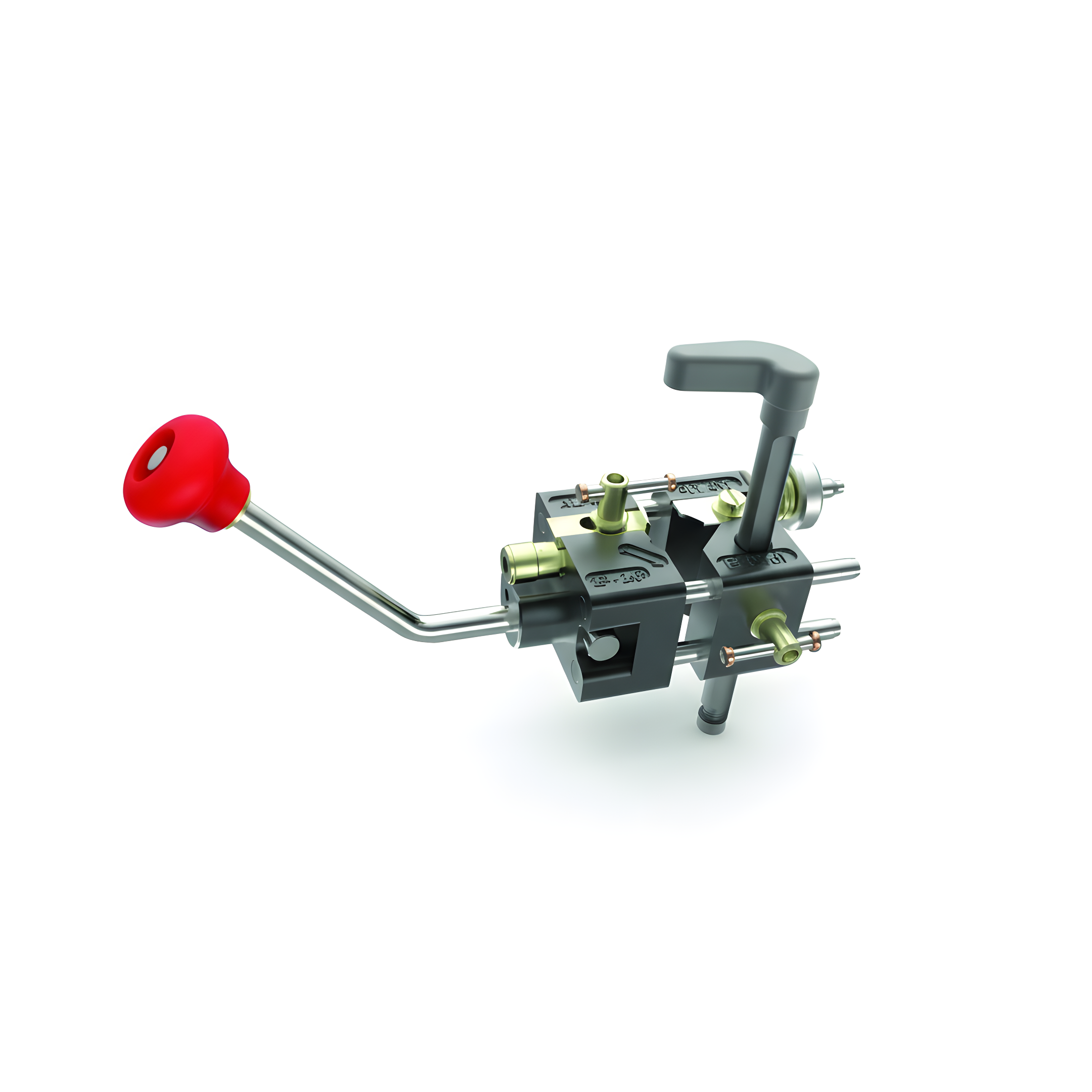

PENTA Alroc BRMRD1E MV & HV Cable Insulation Remover – XLPE 14–40mm



BRMRD1E XLPE INSULATION REMOVAL TOOL | PENTA ALROC

BRMRD1E XLPE INSULATION REMOVAL TOOL | PENTA ALROC

Penta Alroc

Product Code: BRMRD1E

The BRMRD1E is a precision medium voltage cable insulation removal tool engineered to support safe, accurate and efficient preparation of MV and HV power cables. Designed as part of the Alroc cable tool range distributed through PENTA, it enables professionals to define and strip primary cable insulation cleanly without damaging the underlying conductor. With compatibility across a wide range of cable diameters and insulating materials, the BRMRD1E enhances productivity and quality on demanding utility, industrial and infrastructure projects.


SEE TECHNICAL SPECIFICATIONS

Product Overview

Built for durability and dependable field performance, the BRMRD1E features an integrated thrust adjustment that allows the user to precisely set the length of insulation to be removed, delivering straight, neat cuts on medium voltage cables with insulation thicknesses up to 9 mm and diameters from 14 mm to 40 mm. Its ergonomic, compact design ensures comfortable handling during repetitive tasks, while the robust construction withstands the rigours of daily use on site or in workshop environments. Supplied complete with essential components and made to industry-trusted standards, this tool is ideal for professional installers, technicians and cable jointers seeking consistent results.

Whether preparing XLPE or other primary insulation types for termination, repair or connection, the BRMRD1E supports safer and more efficient medium voltage cable operations with minimal learning curve. Its precise insulation removal capability contributes to improved electrical performance and longer-term reliability of cable systems which is a vital advantage in power distribution, transmission and critical infrastructure applications where quality and safety cannot be compromised.

Contact our trusted experts – place an order or find out more about the BRMRD1E for your operations. Thorne & Derrick International, based in the UK, are the leading stockists and suppliers of Jointing Tools providing technical advice, quotations and fast worldwide delivery for both UK & export projects.

Contact Our Experts

Technical Specifications

brmrd1e – Technical Specifications

Product Range BRMRD1E – Medium Voltage Insulation Remover
Product Type Insulation remover for medium voltage (MV) cables
Application Cuts and removes primary insulation from MV cables with straight and precise finish
Cable Diameter Range 14 mm to 40 mm
Maximum Cut Depth 9 mm
Length Adjustment Integrated stop for controlled insulation removal length
Finish Quality Smooth, straight and clean insulation cut
Length 270 mm
Width 100 mm
Height 165 mm
Weight 1.1 kg
Packaging Supplied in carton box
Network Compatibility Medium voltage (MV / HTA) power cables
Typical Applications Cable preparation, jointing, termination and electrical maintenance
Industry Use Electrical distribution, substations, utilities and industrial installations
Spare Blade Reference LMF2 – Blade for outer sheath and primary insulation

SPARE PARTS FOR THE BRMRD1E

BR – Thrust to set the length of the XLPE insulation to be removed
VBB1 – Screw for locking the thrust of the Alroc BRMRD1E
PCR – Quick set up right angled 45° handle
VBL1 – Screw for locking the blade LMF2
LMF2 – Spare blade for primary insulation removal and stripping (XLPE)

Key Benefits

✔ Designed for precise removal of medium voltage (MV) cable insulation without damaging the conductor

✔ Adjustable cutting depth (up to 9 mm) ensures controlled, accurate insulation removal

✔ Integrated length stop enables straight, consistent and repeatable cutback preparation

✔ Suitable for cable diameters from 14 mm to 40 mm, offering flexibility across MV applications

✔ Produces a smooth, clean finish to improve jointing and termination quality

✔ Robust mechanical design withstands demanding site and substation environments

✔ Compact and ergonomic construction enhances control and reduces operator fatigue

✔ Improves installation efficiency by reducing preparation time on MV cables

✔ Compatible with industry-standard MV cable preparation processes

✔ Ideal for use in electrical distribution, substations, utilities and industrial installations

Applications

✔ Removal of primary insulation from medium voltage (MV) power cables during cable preparation

✔ Preparation of cables for installation of MV joints, terminations and connectors

✔ Cable jointing operations in electrical distribution and power network projects

✔ Maintenance and repair of medium voltage cable infrastructure

✔ Preparation of MV cables in substations and utility installations

✔ Use in industrial electrical systems requiring precise insulation removal

✔ Cable preparation for new electrical installations and network expansions

✔ Suitable for underground and overhead MV cable preparation tasks

✔ Ideal for use by cable jointers, utility engineers and electrical contractors

✔ Supports safe and accurate cable preparation in power generation, transmission and distribution environments

Certifications

✔ Manufactured to meet professional utility and electrical industry tool standards

✔ Designed for safe use on medium voltage (MV / HTA) power cables

✔ Supports compliant cable preparation for MV jointing and termination procedures

✔ Built using high-quality materials for reliable performance in electrical infrastructure environments

✔ Suitable for use in regulated industries including power distribution, substations and utilities

✔ Compatible with industry-approved cable preparation and installation practices

✔ Produced by a globally recognised manufacturer of professional electrical safety and cable preparation tools

✔ Enables safe and controlled insulation removal when used according to industry guidelines
