Alroc CMV-3F-NP

Ex Stock Alroc Tools | Alroc CMV-3F-NP

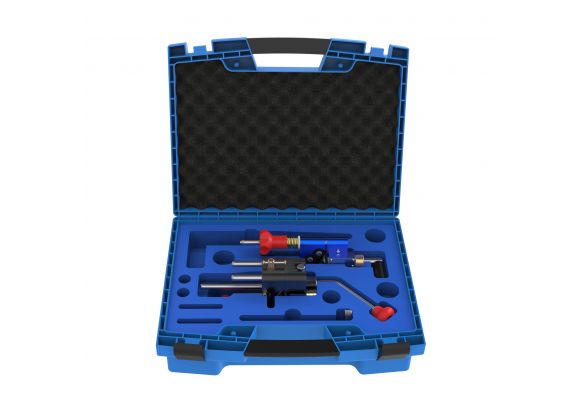

The Alroc CMV-3F-NP case contains the tools necessary to remove the outer sheath, work on the bonded semiconductor and strip the insulation of cables.

Tool Order Code | Alroc CMV-3F-NP
Tool Function | Remove the outer sheath | Remove the outer semi-conductor | Remove the insulation | Tool kits overview
Tool Diameter | ø18 – 58 mm | ø0.709 – 2.283 in
Availability | Contact Thorne & Derrick for Stocks
Outer Sheath | Yes
Semi – conductor | Bonded
Insulation | Yes

Alroc CMV-3F-NP Benefits

No silicon needed
Compact case
For further information, technical support or to check stock for Alroc CMV-3F-NP please contact Thorne & Derrick

Spare blades for use with tool reference Alroc CMV-3F-NP:

LCWB-FEP – Spare blade for bonded semiconductor with chamfer 13°
LMF2 – Spare blade for primary insulation

Tools for Jointing, Termination & Preparation of LV MV HV Cables manufactured by Alroc, from 660V to 66kV. Precision-engineered, highest-quality tools for all stages of the Cable Preparation procedure including Cable Sheath/Jacket Stripping, Insulation Removal (XLPE EPR) and Semicon Stripping Stripping (Bonded & Peelable). Thorne & Derrick stock and supply Jointing & Termination Tools and extensive range of Cutting & Crimping Tools from Cembre and Klauke.

Complementary Tools to Alroc CMV-3F-NP | Alroc BRMRD1E | Alroc PG3HTA/2530 | Alroc CWB/12-44

Thorne & Derrick distribute the most extensive range of MV HV Medium & High Voltage Cable Joints, Terminations & Connectors from manufacturers including 3M, Prysmian, Nexans Euromold, Elastimold, Pfisterer CONNEX & SEANEX and Shrink Polymer Systems.

Heat shrink, cold shrink, push-on and slip-over cable accessories enable the jointing, terminating and connection of 11kV-33kV and 66kV-132kV cables to oil, air or gas insulated switchgear, transformers, motors and overhead lines distributing electricity at medium/high voltages.

Thorne & Derrick hold large stocks of 11kV 33kV 66kV Joints & Terminations suitable for XLPE, PILC and EPR cables, in both heat shrink and Cold Shrink technologies, to service the medium/high voltage power cable accessory requirements of UK and international customers.
