Alroc KIT-AMSUD

Ex Stock Alroc Tools | Alroc KIT-AMSUD

The Alroc KIT-AMSUD enables the user to splice any medium voltage primary distribution underground power cables with peelable (easypeel) or bonded semi-con.

Tool Order Code | KIT-AMSUD
Tool Function | Remove the outer sheath | Work on the outer sheath |Remove / work on the shield | Remove the outer semi-conductor | Remove the insulation | Shape the insulation | Tool kits overview | Maintain / hang / fix cables
Tool Diameter | ø16 – 58 mm | ø0.630 – 2.283 in
Availability | Contact Thorne & Derrick for Stocks
Section According To Voltage Rating | 50 – 630sqmm

ALROC KIT-AMSUD BENEFITS

Work on a very extensive selection of cable
Very precise
For further information, technical support or to check stock for Alroc KIT-AMSUD please contact Thorne & Derrick

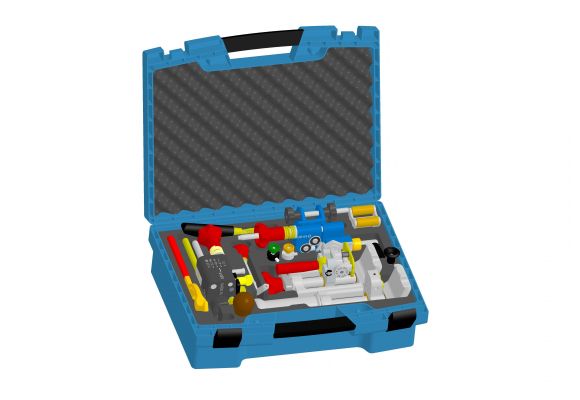

Cable Jointing Tool Kit Contents

MF3/60-C – Multifunction tool for sheath, peelable semiconductor with chamfer, insulation
SCH – Chamfering stylus for insulation
CWB/18-60-MVS – Remove bonded semiconductor with chamfer on the semiconductor cutback and stop
ROTO-TMG – Connector holder for bolted and clamping connections
GFE-TMG – Roller block for ROTO-TMG to tighten the outer sheath over screen connection
ALROC-FENTE – Tool to perform slits on cable’s outer sheath
EV/NPT – Tool to spread PE outer sheath with aluminium screen
LIGAREX – Clamping tool with return spring for straps

Complementary Tools to Alroc CMV-4F-PNP | Alroc CMV-3F-NP | Alroc J1R1 | Alroc CWB/12-44
