Alroc MF3/40-SRC – Strip Outer Sheath, Peelable Semicon & Insulation up to 40mm Diameter

Alroc MF3/40-SRC

Stocked & Supplied by Thorne & Derrick | Tools for Jointing, Termination & Preparation of MV HV Cables

Multifunction Tools

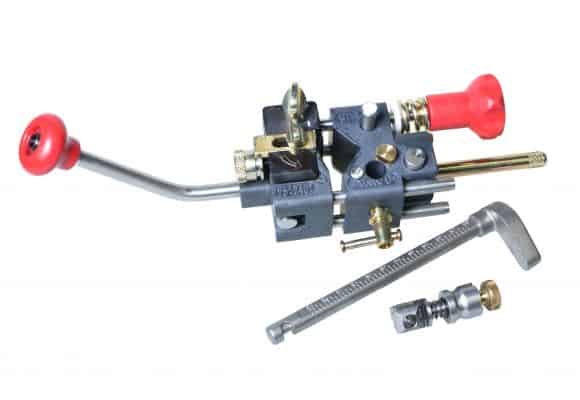

ALROC MF3/40-SRC

MF3/40-SRC multifunction cable tools are manufactured by Alroc and used by MV-HV jointers to remove the outer sheath (PE-PVC-PR) with a straight and neat cut, score the peelable semiconductor with a chamfer on the edge of the semiconductor cutback (with the SRC scoring stylus delivered with the tool), set the length to be removed and remove the insulation

The benefits of the Alroc MF3/40-SRC Cable Jointing & Preparation Tool include tuning of the pitch of the tool and embedded wear pads to protect the tool from the contact with the outer sheath of the medium/high voltage cable. The Alroc MF3/40-SRC multifunction tool is available with one of the following scoring stylus options;

SRC – Scoring stylus for peelable semiconductor with chamfer,
SCH – Chamfering stylus for insulation,
SR – Scoring stylus for peelable semiconductor.

Alroc Scoring Styluses For Use With Multifunction Cable Jointing Tools

Alroc Scoring Styluses For Use With Alroc Multifunction Cable Jointing Tools

Alroc MF3/40-SRC – Technical Specification

Alroc Part Number	Diameter	Tool Capacity			MF3/40-SRC Dimensions			Packaging
Alroc Part Number	Diameter	Peelable semiconductor thickness capacity	Insulation thickness capacity	Stylus included	Length	Width	Height	Packaging
MF3/40	16 – 40 mm 0.630 – 1.575 in	0.4 – 1.5 mm	7 mm	SR	305 mm 12.008 in	100 mm 3.937 in	165 mm 6.496 in	none
MF3/40-C	16 – 40 mm 0.630 – 1.575 in	0.4 – 1.5 mm	7 mm	SRC	305 mm 12.008 in	100 mm 3.937 in	165 mm 6.496 in	none
MF3/40-SR	16 – 40 mm 0.630 – 1.575 in	0.4 – 1.5 mm	11 mm	SR	305 mm 12.008 in	100 mm 3.937 in	165 mm 6.496 in	none
MF3/40-SRC	16 – 40 mm 0.630 – 1.575 in	0.4 – 1.5 mm	11 mm	SRC	305 mm 12.008 in	100 mm 3.937 in	165 mm 6.496 in	none
MF3/40-SSR	16 – 40 mm 0.630 – 1.575 in	Option	7 mm	None	305 mm 12.008 in	100 mm 3.937 in	165 mm 6.496 in	none

SPARE TOOL PARTS FOR USE WITH ALROC MF3/40-SRC

KIT-MF3/40 – Protective wear pads
LMF2-S – Spare blade for outer sheath and thick insulation
BR – Thrust to set the length of insulation to be remove
VBB1 – Screw for locking the thrust
PCR – Quick set up right angled 45° handle
196855 – Straight handle M10
108098 – Clamping knob for blade
SRC – Scoring stylus for peelable semiconductor with chamfer
LS-C – Spare blade for peelable semiconductor with chamfer

Tool Options

SCH – Chamfering stylus for insulation
SR – Scoring stylus for peelable semiconductor

Associated Preparation & Jointing Tools for MV HV Cables

ALROC-FENTE – Tool to perform slits on cable’s outer sheath
ROTO-TMG – Connector holder for bolted and clamping connections
DSP – Peelable semiconductor lifter
C-SR – Wrench to replace the semiconductor blade
