Alroc MF3/40-SSR – Strip Outer Sheath, Peelable Semicon & Insulation up to 40mm Diameter

Alroc MF3/40-SSR

Stocked & Supplied by Thorne & Derrick | Tools for Jointing, Termination & Preparation of MV HV Cables

Multifunction Tools

ALROC MF3/40-SSR

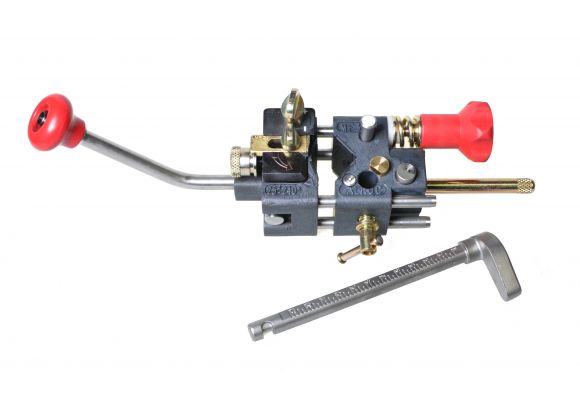

MF3/40-SSR multifunction cable tools are manufactured by Alroc and used by MV-HV jointers to remove the outer sheath (PE-PVC-PR) with a straight and neat cut and set the length to be removed and remove the insulation with a straight and neat cut.

The benefits of the Alroc MF3/40-SSR Cable Jointing & Preparation Tool include tuning of the pitch of the tool and embedded wear pads to protect the tool from the contact with the outer sheath of the medium/high voltage cable.

Alroc Scoring Styluses For Use With Multifunction Cable Jointing Tools

Alroc Scoring Styluses For Use With Alroc Multifunction Cable Jointing Tools

Alroc MF3/40-SSR – Technical Specification

Alroc Part Number	Diameter	Tool Capacity			MF3/40-SSR Dimensions			Packaging
Alroc Part Number	Diameter	Peelable semiconductor thickness capacity	Insulation thickness capacity	Stylus included	Length	Width	Height	Packaging
MF3/40	16 – 40 mm 0.630 – 1.575 in	0.4 – 1.5 mm	7 mm	SR	305 mm 12.008 in	100 mm 3.937 in	165 mm 6.496 in	none
MF3/40-C	16 – 40 mm 0.630 – 1.575 in	0.4 – 1.5 mm	7 mm	SRC	305 mm 12.008 in	100 mm 3.937 in	165 mm 6.496 in	none
MF3/40-SR	16 – 40 mm 0.630 – 1.575 in	0.4 – 1.5 mm	11 mm	SR	305 mm 12.008 in	100 mm 3.937 in	165 mm 6.496 in	none
MF3/40-SRC	16 – 40 mm 0.630 – 1.575 in	0.4 – 1.5 mm	11 mm	SRC	305 mm 12.008 in	100 mm 3.937 in	165 mm 6.496 in	none
MF3/40-SSR	16 – 40 mm 0.630 – 1.575 in	Option	7 mm	None	305 mm 12.008 in	100 mm 3.937 in	165 mm 6.496 in	none

SPARE TOOL PARTS FOR USE WITH ALROC MF3/40-SSR

KIT-MF3/40 – Protective wear pads
LMF2 – Spare blade for primary insulation
BR – Thrust to set the length of insulation to be remove
VBB1 – Screw for locking the thrust
PCR – Quick set up right angled 45° handle
196855 – Straight handle M10
108098 – Clamping knob for blade

Cable Jointing Tool Options

SR – Scoring stylus for peelable semiconductor
SRC – Scoring stylus for peelable semiconductor with chamfer
SCH – Chamfering stylus for insulation

Associated Preparation & Jointing Tools for MV HV Cables

ALROC-FENTE – Tool to perform slits on cable’s outer sheath
ROTO-TMG – Connector holder for bolted and clamping connections
DSP – Peelable semiconductor lifter
