Alroc PG3HTA/2020
Ex Stock Alroc Tools | Alroc PG3HTA/2020

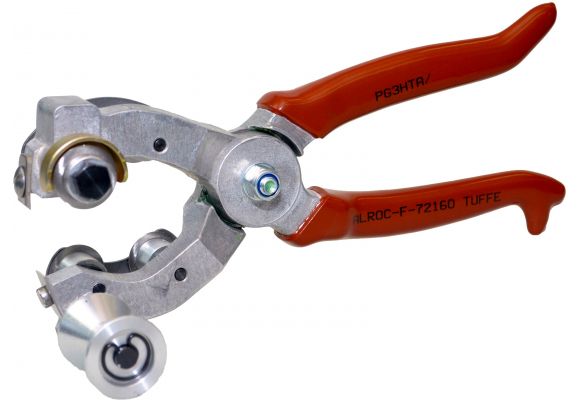

The Alroc PG3HTA/2020 enables the user to make a circular and longitudinal cut in order to remove cable’s outer sheath.
- Tool Order Code | Alroc PG3HTA/2020
- Tool Function | Remove the outer sheath
- Tool Diameter | ø26 – 52 mm | ø1.024 – 2.047 in
- Availability | Contact Thorne & Derrick for Stocks
- Thickness Capacity | 2,0 mm / 0,079 in
ALROC PG3HTA/2020 BENEFITS
- Quick, light and easy to use
- For further information, technical support or to check stock for Alroc PG3HTA/2020 please contact Thorne & Derrick
Spare blades for use with tool reference Alroc PG3HTA/2020:
MTC3/20 – Spare blade for circular cutting 2,0 mm / 0,079 in (x4)
MTL3/20 – Spare blade for longitudinal cutting 2,0 mm / 0,079 in
Tools for Jointing, Termination & Preparation of LV MV HV Cables manufactured by Alroc, from 660V to 66kV. Precision-engineered, highest-quality tools for all stages of the Cable Preparation procedure including Cable Sheath/Jacket Stripping, Insulation Removal (XLPE EPR) and Semicon Stripping Stripping (Bonded & Peelable). Thorne & Derrick stock and supply Jointing & Termination Tools and extensive range of Cutting & Crimping Tools from Cembre and Klauke.
Complementary Tools to Alroc PG3HTA/2020 | Alroc J1R1 | Alroc PG3EC/2020 |Alroc KIT-AMSUD
Thorne & Derrick distribute the most extensive range of MV HV Medium & High Voltage Cable Joints, Terminations & Connectors from manufacturers including 3M, Prysmian, Nexans Euromold, Elastimold, Pfisterer CONNEX & SEANEX and Shrink Polymer Systems.
Heat shrink, cold shrink, push-on and slip-over cable accessories enable the jointing, terminating and connection of 11kV-33kV and 66kV-132kV cables to oil, air or gas insulated switchgear, transformers, motors and overhead lines distributing electricity at medium/high voltages.
Thorne & Derrick hold large stocks of 11kV 33kV 66kV Joints & Terminations suitable for XLPE, PILC and EPR cables, in both heat shrink and Cold Shrink technologies, to service the medium/high voltage power cable accessory requirements of UK and international customers.
MV HV High Voltage Cable Joints | Cable Terminations | Cable Connectors | Distributed from Stock | UK & Export Sales
PG3HTA/2020 Alroc ToolsDownload
