Cable Sheath Stripping Pliers

Alroc PG4 HTA

Alroc PG4 tool is a cable stripping tool for the clean and precise removal of the outersheath of cables with a 47-75mm range – the PG range of tools provide a “ring and circle” cut to the cable sheath and remove the risk of site accidents associated with “open-blade” type tools or standard electrician knives.

PG4 HTA cable tools manufactured by Alroc are used by LV-MV-HV jointers to remove the outer sheath to prepare the cable ready for the installation of joints, terminations or connectors – the cable preparation tools are quick, light to hold and easy to use by the Jointer when stripping jacket/sheath from LV (Low), Medium (MV) and (HV) High Voltage Cables.

The PG4 HTA, manufactured by Alroc and supplied by Thorne & Derrick, enables the jointer to make a circular and longitudinal cut to the cable in order to remove cable’s outer sheath. All cutting depth ranging from 0,5 mm / 0,019 in to 5 mm / 0,196 in are available on demand. Contact T&D for more information.

Alroc cable tools are used by LV MV HV cable jointers to remove cable sheath and jackets to provide excellent cable preparation prior to the installation of joints, terminations or connectors using cold shrink, heat shrink or push-on type technology.

Alroc - Cable Jointing Tools

ALROC PG4

Cable pliers

TECHNICAL SPECIFICATION

How to build your customised PG4 cable stripping pliers:

ALROC PG4HTA/yyzz

yy = Circular cutting depth e.g : 30 = 3,0 mm / 0,118 in

zz = Longitudinal cutting depth e.g : 33 = 3,3 mm / 0,130 in

ALROC PG4 Spare Tool Part

MTC4/30 – Spare blade for circular cutting 3,0 mm / 0,118 in (x4)
MTL4/35 – Spare blade for longitudinal cutting 3,5 mm / 0,138 in

Associated tool

LH2 – Monofunction tool for insulation
LHM2R30/60 – Monofunction tool for peelable semiconductor

Alroc tools are precision engineered for the critical preparation and removal of all types of cable sheath including XLPE, PE, PVC, LLPE, PUR and rubber types.

Alroc PG4 HTA Tool

Technical Specification

Cable Tool Part Number	PG4 Diameter	Alroc PG4 Tool Capacity		Tool Dimensions			Packaging
		Circular cutting thickness capacity	Longitudinal cutting thickness capacity	Length	Width	Height
Alroc PG4HTA/3033	47 – 75 mm 1,850 – 2,953 in	3,0 mm / 0,118 in	3,3 mm / 0,130 in	300 mm 11,811 in	110 mm 4,331 in	105 mm 4,134 in	None
Alroc PG4HTA/3035			3,5 mm / 0,138 in				Carton/Box

Associated Manufacturers

COMPLEMENTARY TOOLS for the Jointing & Termination of Cables

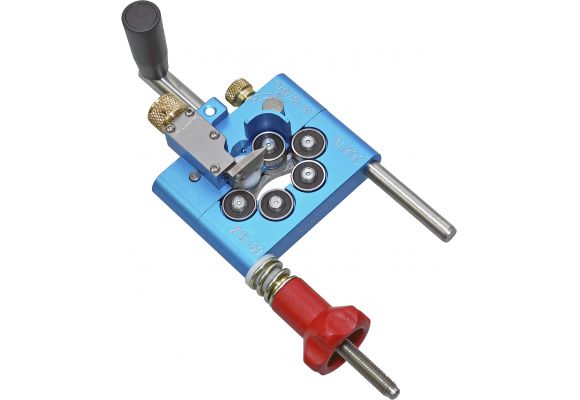

Alroc CWB/18-60 – Semiconductor Screen Stripping Tool	Alroc LH3 – HV Cable Insulation Stripping Tool (60-80mm)
