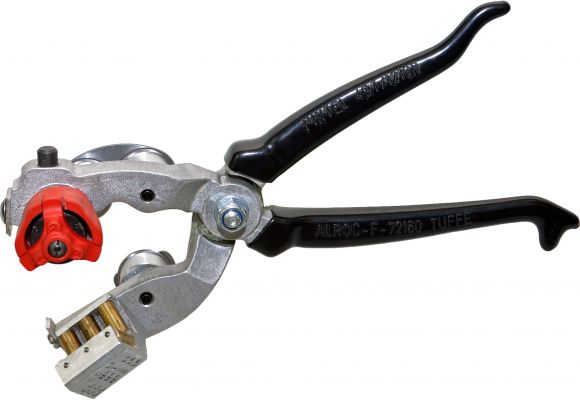

Alroc PINTEL4BT/1216-R

Ex Stock Alroc Tools | Alroc PINTEL4BT/1216-R

The Alroc PINTEL4BT/1216-R removes the outer sheath for power off working. Cutting depths are adapted to others connection cable.

Tool Order Code | Alroc PINTEL4BT/1216-R
Tool Function | Remove the outer sheath
Tool Diameter | ø10 – 30 mm | ø0.394 – 1.181 in
Availability | Contact Thorne & Derrick for Stocks
Thickness Capacity (Circular Cutting) | 1,8 mm / 0,071 in
Thickness Capacity (Longitudinal Cutting) | 1,2 – 1,6 – 1,8 mm / 0,047 – 0,063 – 0,070 in
Certifications | Approved by ENEDIS

ALROC PINTEL4BT/1216-R BENEFITS

Oscillating cable support for a better guidance
Stripping of sectoral phases of network cable
Longitudinal head with 3 penetrations to adapt to different thickness of sheath
Interchangeable longitudinal heads for a better versatility
For further information, technical support or to check stock for Alroc PINTEL4BT/1216-R please contact Thorne & Derrick

Spare blades for use with tool reference Alroc PINTEL4BT/1216-R:

MTCP4/12 – Spare blade for circular cutting 1,2 mm / 0,047 in (x3)
TRL/12-16-18 – Spare interchangeable longitudinal cutting head

Tools for Jointing, Termination & Preparation of LV MV HV Cables manufactured by Alroc, from 660V to 66kV. Precision-engineered, highest-quality tools for all stages of the Cable Preparation procedure including Cable Sheath/Jacket Stripping, Insulation Removal (XLPE EPR) and Semicon Stripping Stripping (Bonded & Peelable). Thorne & Derrick stock and supply Jointing & Termination Tools and extensive range of Cutting & Crimping Tools from Cembre and Klauke.
