Alroc PRG3/C22-L222833

Alroc PRG3 C22-L222833 | Large Stocks | Competitive Prices | Tools

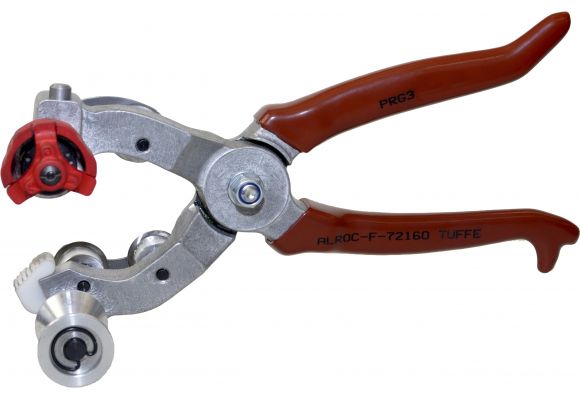

Alroc PRG3 Pliers

The Alroc PRG3/C22-L222833 pliers enable the user to make a circular and longitudinal cut in order to remove cable’s outer sheath.

Tool Order Code | Alroc PRG3/C22-L222833
Tool Function | Remove the outer sheath
Tool Diameter |ø26 – 52 mm | ø1.024 – 2.047 in
Availability | Contact Thorne & Derrick for Stocks
Thickness Capacity (Circular Cutting) | 2,2 mm / 0,087 in
Thickness Capacity (Longitudinal Cutting) | 2,2-2,8-3,3 mm / 0,087-0,110-0,130 in

ALROC PRG3/C22-L222833 BENEFITS

3 different longitudinal cutting depth in one interchangeable cutting head
Quick set up of the cutting head
The interchangeable cutting head fit on PR4, PRG3, PRG4
For further information, technical support or to check stock for Alroc PRG3/C22-L222833 please contact Thorne & Derrick

Spare blades for use with tool reference Alroc PRG3/C22-L222833:

MTC3/22 – Spare blade for circular cutting 2,2 mm / 0,087 in(x4)
TRL/22-28-33 – Spare interchangeable longitudinal cutting head

The following video provides a tutorial demonstration of the Alroc PRG3 & Alroc PRG4 pliers in use, featuring a circular and longitudinal cut in order to remove the outer sheath of a power cable.

Alroc Cable Jointing, Termination & Preparation Tools

Tools for Jointing, Termination & Preparation of LV MV HV Cables manufactured by Alroc, from 660V to 66kV. Precision-engineered, highest-quality tools for all stages of the Cable Preparation procedure including Cable Sheath/Jacket Stripping, Insulation Removal (XLPE EPR) and Semicon Stripping Stripping (Bonded & Peelable). Thorne & Derrick stock and supply Jointing & Termination Tools and extensive range of Cutting & Crimping Tools from Cembre and Klauke.

Complementary Tools to Alroc PRG3/C22-L222833 | Alroc BRMRD1E | Alroc PG3HTA/2530 | Alroc PR4/C18-L10-12-20 | Alroc KIT-AMSUD

Thorne & Derrick | Cable Joints, Terminations & Connectors

Thorne & Derrick distribute the most extensive range of MV HV Medium & High Voltage Cable Joints, Terminations & Connectors from manufacturers including 3M, Prysmian, Nexans Euromold, Elastimold, Pfisterer CONNEX & SEANEX and Shrink Polymer Systems.

Heat shrink, cold shrink, push-on and slip-over cable accessories enable the jointing, terminating and connection of 11kV-33kV and 66kV-132kV cables to oil, air or gas insulated switchgear, transformers, motors and overhead lines distributing electricity at medium/high voltages.

Thorne & Derrick hold large stocks of 11kV 33kV 66kV Joints & Terminations suitable for XLPE, PILC and EPR cables, in both heat shrink and Cold Shrink technologies, to service the medium/high voltage power cable accessory requirements of UK and international customers.
