Switching Suits LV MV HV | Arc Flash Clothing Kit 25 Cal

Arc Flash Clothing Kit 25 Cal | Switching Suits PPE

Switching Suits

Arc Flash Clothing Kit 25 Cal

STRATA SKU – SFX251 Arc Flash Clothing Kit (25 cal/cm²) is a comfortable, lightweight arc flash jacket and protective coverall kit, or switching suit, typically used by Service Engineers and SAP’s working on LV MV HV switching operations – the switching suits are generally used to provide personal protection to workers undertaking maintenance, repair and operations on Low & High Voltage Power Systems in accordance with the site calculated arc flash risk.

25 cal/cm² refers to the units of incident energy that the PPE and arc flash suits can withstand – should you require guidance on selection and use of an Arc Flash Calculator please call Thorne & Derrick.

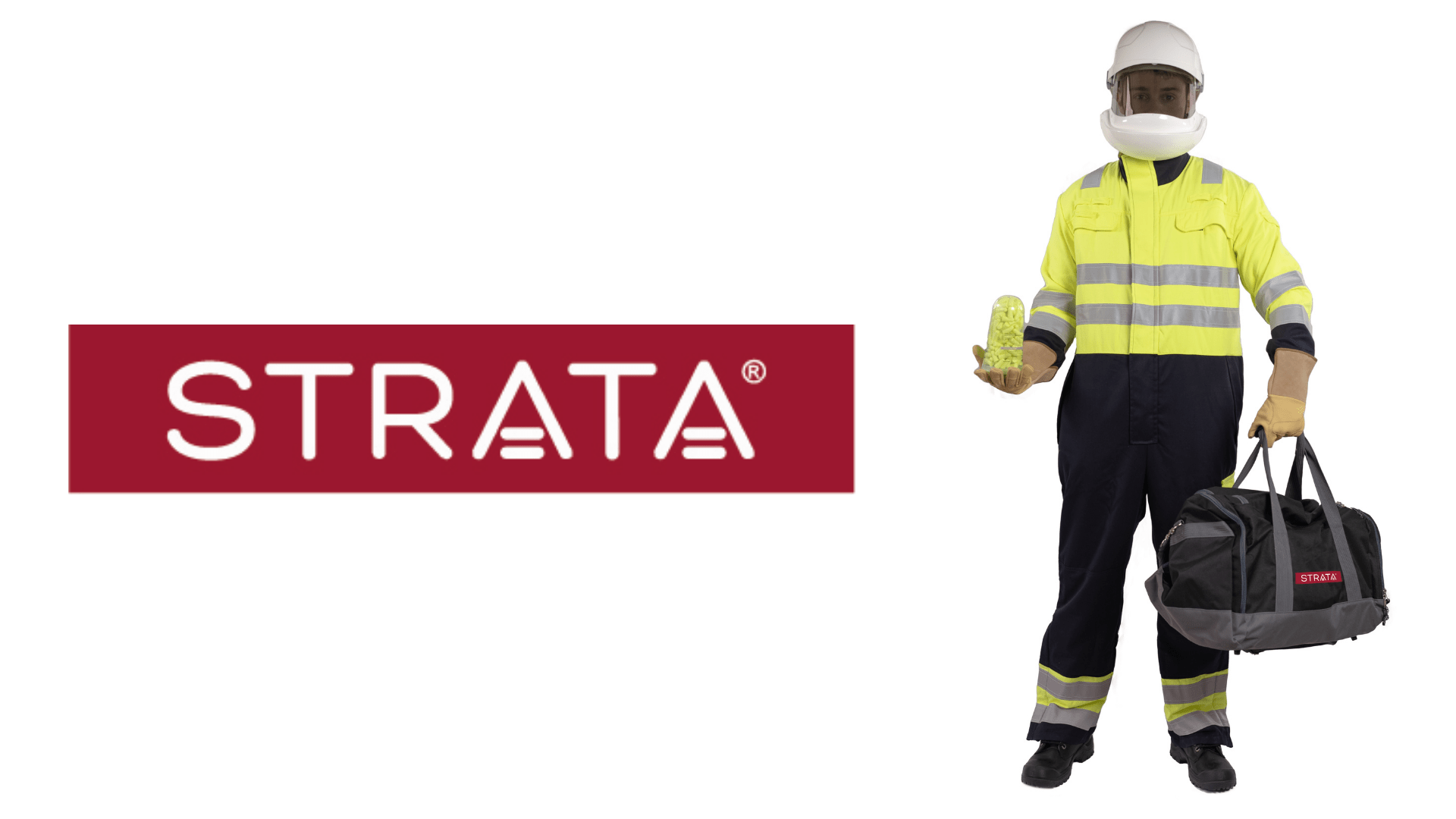

Arc Flash Switching Suit & Clothing Kit (25 cal/cm²) kit consists of:

1-piece Hi-Viz Overall | With reflex striping, plenty of pockets, concealed zip fastening and zip up to collar for safety
1-piece Arc Flash Helmet | Retractable Truecolour® visor real view vision (no discoloration)
1-piece Arc Goatskin Leather Gauntlets
1-piece Container of disposable ear plugs SNR37
1-piece Storage Bag |with pockets and shoulder strap for easy transport and storage

View complete range of arc flash clothing.

STRATA SFX251 Classic 25.6cal Arc Flash Protection & Switching Suit (Class 2 | ARC Category 3 | ATPV 25.6cal) – complete range of full certified PPE outfits to provide total protection against arc flash risks for wearers working on or near live electricity (energised), at LV, MV HV power systems. Thorne & Derrick are the UK’s leading Specialist Distributor of Electrical Safety Equipment to clients working in the Power Transmission & Distribution industry in the onshore and offshore wind, solar, rail, oil/gas, data centre, battery storage and utility sectors.

Arc Flash Clothing Kit 25 Cal

STRATA Arc Flash Clothing Kit (25 cal/cm²)

Technical Specification

STRATA Part Code: SKU – SFX251
ATPV 25.6 cal/cm2
Class 2 Category 3

Arc Flash Kit Composition

Fabric: 54% Modacrylic, 44% Cotton, 2% Antistatic
Switching Suit Weight: 200gm / 5.9 oz
Colour: Hi-Viz Yellow/Navy
Sizes: XS – 4XL (Short, Regular, Tall)

Arc Flash Standards

EN61482-l-l 25.6cal (ARC Category 3)
EN11612 Al+A2, Bl, Cl, Fl (Flame Resistant)
EN13034 Type 6 (Chemical Resistant)
EN1149-5 (Anti-static)
EN20471 Class 3 (Hi-Visibility)
DIN EN 166:2001
DIN EN 170:2002
ASTM F2178- ATPV 25cal
NFPA 70E

Arc Flash Overalls Sizing Guide

When measuring for our arc flash overalls, ensure you use both of the size charts to work out the waist size and leg size you will need.

Overalls/Coveralls
Nordic Sizes	C42 – C45	C46 – C50	C50 – C54	C56 – C58	C58 – C62	C62 – C66	C66 – C70	C70 – C74
Global Sizes	XS	S	M	L	XL	2XL	3XL	4XL
Chest Size (cm)	84 – 92	92 – 100	100 – 108	108 – 116	116 – 124	124 – 132	132 – 140	140 – 152
Chest Size (inch)	33 – 36	36 – 39	39 – 42	42 – 47	47 – 49	49 – 52	52 – 55	55 – 60

Leg Length
Short	70 – 75 (cm)	27.5 – 29.5 (inches)
Regular	75 – 80 (cm)	29.5 – 31.5 (inches)
Large	80 – 85 (cm)	31.5 – 33.5 (inches)

Arc Flash Garment Care

Make your garments last longer by doing the following:

Arc flash clothing should be cleaned regularly.
Professional laundering is recommended by a STRATA approved launderette.
Wash separately from non-FR garments.
A label with appropriate cleaning instructions is affixed within your garment.
Never use a heavily soiled garment.
Garments with reflective tape should be washed and dried at a lower temperature

When not in use store arc flash clothing in a dry area away from direct sunlight.

Guide To Measure Gloves

Step 1: Measure across the bridge of your knuckles on the front of your hand – see also arc flash gloves and insulating gloves.

Step 2: Pass the tape measure around the palm of your hand as one complete measurement – this measurement represents your glove size e.g. some gloves 8″ represents size 8). Please refer to Size Chart below:
