Cable Drum Trailers Up To 3200mm Diameter Drums – SEB CD140S

Cable Drum Trailers

Mobile Safe Transportation of Cable Drums for Pulling & Laying of Low & High Voltage Power Cables

SEB CD140S is a cable drum trailer suitable for use “off road” with the ability to handle up to 3200mm diameter drums – cable drum trailers ensure safe loading, transportation and unreeling of LV, MV, HV or EHV cable from drums with a payload up to 7000Kgs.

The CD140S cable drum trailer is available from the standard product range – if there is not a trailer listed to accommodate your cable drum size and weight please do not hesitate to contact us customised engineered solutions to support your cable pulling installations up to 400kV.

CABLE DRUM TRAILER

TECHNICAL SPECIFICATION

SEB CD140S

This table provides the specification details for the CD140S drum trailer manufactured by SEB – should you require any technical guidance or advice in the selection of the most suitable cable drum trailer from our range of pulling/laying equipment for Low, Medium & High Voltage (LV MV HV) applications please do not hesitate to contact us;

SEB Part Number	Axle Type	Payload (Approx)	Gross Vehicle Weight	Max Drum Width	Drum Dia max/min	Spindle Dia	Tow Eye/Coupling Height Unladen	Trailer Width	Towing Speed	Tyres	Brake System
CD140S	Single	7000kgs	8600kgs	1730mm	3200/2000mm	89mm	76/810	2550mm	25Kmh	11.00×22.5	Overrun

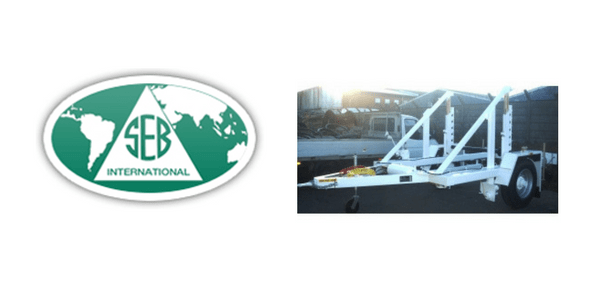

SEB CD140S Cable Drum Trailer
