Cable Drum Trailers

Drum Trailers | Safe & Reliable Mobility for Cable Drum Handling up to 400kV

Drum Trailers

Mobile Safe Trailer Transportation of Cable Drums for Pulling & Laying of Low & High Voltage Power Cables | UK & Export Sales

➡ View our complete range of Cable Drum Trailers for either road or site use with single, twin or multi axles. The Highways and Site ranges of cable drum trailers are conformant with EEC Directives featuring braking and lighting for safe highways and road transportation of cable drums. See also Cable Drum Lifting Jacks.

Cable Drum Trailers | Site Range

Designed and supplied specifically for “Off Road Use”, the Site range of cable trailers are all fitted with some form of brake system, hand parking facility and basic vehicle lights. Although not built to conform with EEC braking/lighting directives certain Non EEC countries have operated these units on the highway under the proviso that towing speeds indicated must not be exceeded at full rated payload. All units incorporate the same drum handling features and in some cases additional options as the Highway Range.

As drums of cable get larger and heavier to reduce the number of cable joints in the cable, the SEB range of site trailers has expanded to accommodate drum sizes of up to 2800mm wide and 5000mm diameter with a maximum payload of 48,000Kgs. All drum widths stated are with drum locking collars fitted to spindles.

These trailers constitute our standard range. However if there is not a trailer listed to accommodate your drum size and weight please do not hesitate to contact us for a customised engineered solution. See also the complete range of cable winches to support the transport and installation of power cables systems, LV MV HV.

Trailers & Winches | Thorne & Derrick are experts in arranging manufacturing and supply of cable laying and handling equipment, from drum trailers to duct equipment for LV (1000 Volts), MV (11kV 33kV), HV (66kV) and EHV (132kV-400kV).

Multi Drum Cabling Trailers | drum this trailer is capable of carrying 3 cable drums at a time at 500Kgs per drum and fitted with drum brakes for control of cable payout.

Cable Drum Trailers | EWVTA Highways Range

Cable drum trailers that are part of the EWVTA Highways Range are equipped with braking and road lighting systems conforming to ECC Directives – the cable drum trailers are designed specifically to comply with road speeds indicated on the UK Highway and most other European Countries. Different options can be offered to meet the requirements of individual countries.

For safe and easy drum handling, all cable drum trailers are fitted with hydraulic hand pump operated lift/lower systems as standard. When the drum is fully raised mechanical locks ensure drum security in transit (further information available on request).

SEB Part Number	Cable Drum Trailer	Payload (Approx)	Gross Vehicle Weight	Max Drum Width	Drum Dia max/min	Spindle Dia	Tow Eye/Coupling Height Unladen	Trailer Width	Towing Speed	Tyres	Brake System
CD20		830kg	1110kg	1075mm	1070/570	50mm	50/690	1925mm	100Kmh	155/80R-13	Overrun Auto reverse
CD32		1200kg	1600kg	1375mm	2100/700	50mm	50/600	2310mm	100Kmh	175×14	Overrun Auto reverse
CD40		1500kg	2000kg	1250mm	2200/750	50mm	50/600	2200mm	100Kmh	195×14	Overrun Auto reverse
CD60		2430kg	3150kg	1280mm	2500/1060	76mm	50/600	2285mm	100Kmh	215/75R17.5	Overrun Auto reverse
CD70		2770kg	3500kg	1280mm	2500/1060	76mm	50/600	2285mm	100Kmh	215/75R17.5	Overrun Auto reverse

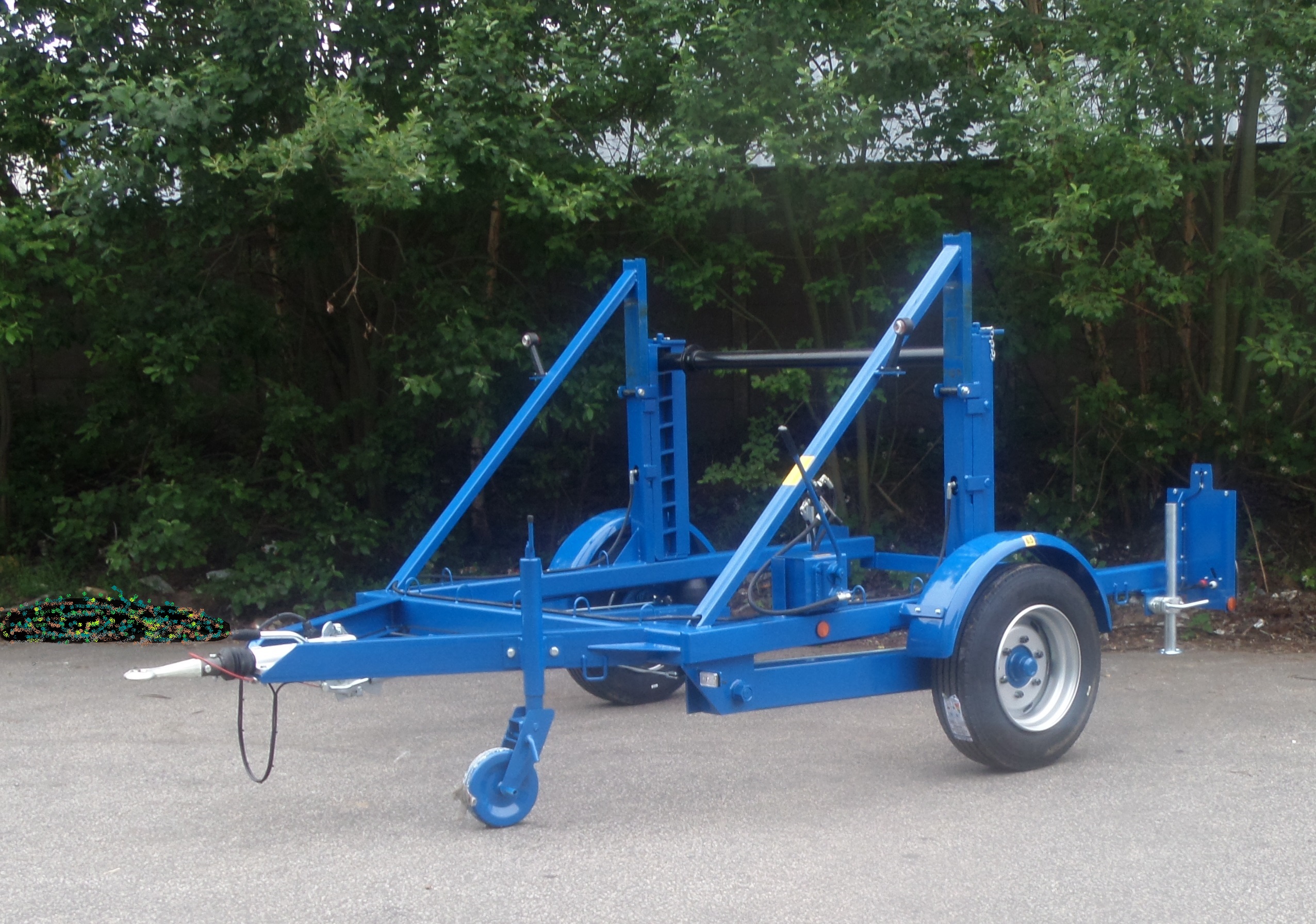

PT60		2300kg	3100kg	1710mm	3200/1420	76mm	50/705	2520mm	100Kmh	215/75R17.5	Overrun Auto reverse
PT70		2720kg	3500kg	1600mm	3200/1420	76mm	50/705	2545mm	100Kmh	215/75R17.5	Overrun Auto reverse
CD130		5350kg	6650kg	1470mm	2860/1360	76mm	76/730	2550mm	100Kmh	11.00×22.5	2 Line Air / Mech. C/W ABS

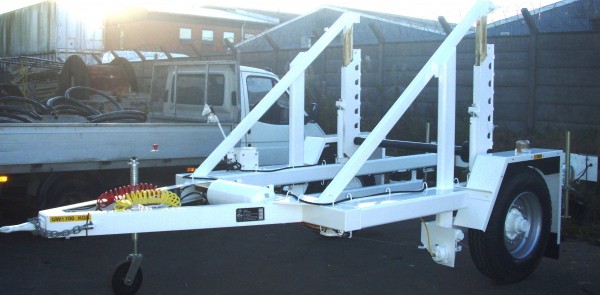

CD140		5085kg	6650kg	1600mm	3800/2000	89mm	76/730	2550mm	100Kmh	11.00×22.5	2 Line Air / Mech. C/W ABS

Cable Pulling & Laying Products lv mv hv

Complete range of LV, MV and HV cable pulling products for lifting and transportation of cable drums – cable laying equipment to support installation of cables into trench or duct including LV, 11kV/33kV medium voltage (MV), 66kV/132kV high voltage (HV) and EHV transmission and distribution cables up to 400kV.

Thorne & Derrick International distribute the most extensive range of Cable Pulling & Cable Laying Equipment to enable the installation of low, medium and high voltage power cables into underground trench or duct – products also supplied for fibre optic blowing, subsea trenching, offshore umbilical installations and pulling armoured cables onto cable tray.

Cable Rollers | Drum Lifting Jacks | Duct Rods | Cable Socks | Lubricant | Duct Seals
