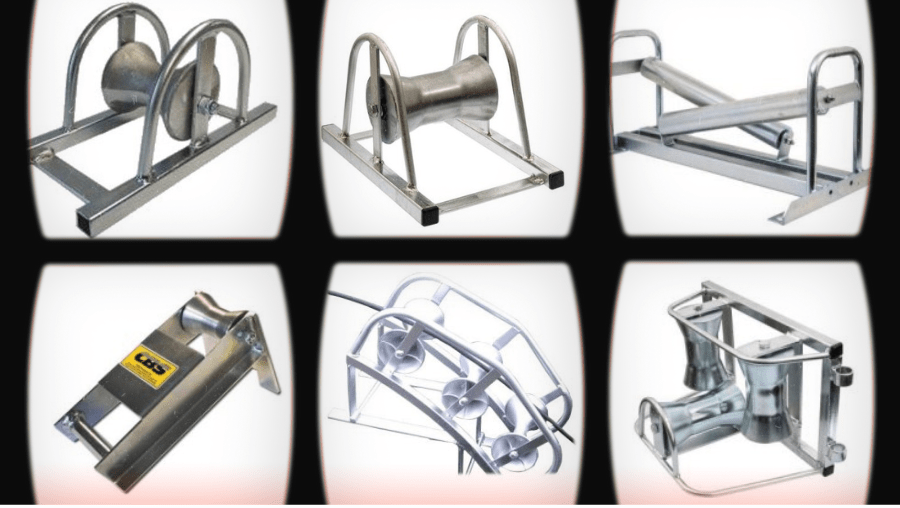

CBS cable rollers are specialised equipment used in the telecommunications and utility industries for the efficient installation of cable systems, including fiber optics and power cables. These rollers help guide and protect cables during the laying process, minimising damage and ensuring smooth deployment.
Thorne & Derrick International distribute the most extensive range of Cable Pulling & Cable Laying Equipment to enable the installation of low, medium and high voltage power cables into underground trench or duct.
Heavy Duty Cable Roller | CBS D-196-01-F
All Zinc plated heavy duty assembly suitable for cables up to 125mm dia. Steel frame fitted large waisted steel roller running on sealed ball bearings.
Specifications
Dimensions 350 x 230mm
Weight 4kg
Ordering Information
D-196-01-F Heavy Duty Cable Roller
NARROW CABLE ROLLER | CBS D-196-02
Designed for use in narrow trenches. Lightweight assembly suitable for cables up to 76mm dia. Zinc plated steel frame fitted with large waisted solid aluminium roller running on low friction sintered bushes.
Specifications
Dimensions 320 x 145mm
Weight 2.75kg
Ordering Information
D-196-02-F Narrow Cable Roller
Bridge Cable Roller | CBS D-196-04
All Zinc plated heavy duty assembly as per the D-196-01, a cable roller designed to bridge existing cables up to 90mm dia.
Specifications
Dimensions 320 x 230mm
Weight 4.5kg
Ordering Information
D-196-04-F Bridge Roller
V FRAME GUIDE SET | CBS D-194
Positioned in front of drum to guide cable into a trench or duct.
Specifications
Dimensions 825 x 500 x 415mm
Weight 19.45kg
Ordering Information
D-194 V Frame Guide Set
TRENCH FEED ROLLER SET | CBS D-195
Guides cables into trench, adjustable vertical guide rollers.
Specifications
Dimensions 1000 x 200 x 250mm
Weight 22kg
Ordering Information
D-195 Trench Feed Roller Set
LEAD ROLLER | CBS D-439
A horizontal roller to protect cable feeding from drum, fitted with end guides.
Specifications
Dimensions 1000 x 300 x 180mm
Weight 11kg
Ordering Information
D-439 Lead Roller
Manhole Entry Roller | CBS D-1041-001
This roller is used to guide draw rope into and out of manhole openings.
Specifications
Dimensions 260 x 150 x 160mm
Weight 2.4kg
Ordering Information
D-1041-001 Manhole Entry Roller
Triple Corner Roller | CBS D-1047-001
All zinc plated finish and using two vertical and one horizontal steel roller for taking the heaviest cables round difficult corners.
Specifications
Dimensions 295 x 290 x 540mm
Weight 12kg
Ordering Information
D-1047-001 Triple Corner Roller
Manhole Quadrant Roller | CBS D-1048-001-F
Designed for placing at the end of the manhole or pit entrance to ease the cable in. Triple Aluminium Roller on tubular steel frame. Zinc Plated.
Specifications
Dimensions 500 x 290 x 630mm
Weight 14kg
Ordering Information
D-1048-001-F Manhole Quadrant Roller
CBS Cable Roller
