Cable Rollers Up To 75mm – Skid Rollers For Cable Trench
Cable Rollers – CR2
♦ Power Cables ♦ Subsea Umbilicals ♦ Fibre Optics
Medium Voltage MV ♦ High Voltage HV
Cable Rollers Up To 75mm
Skid Cable Roller
SEB cr2

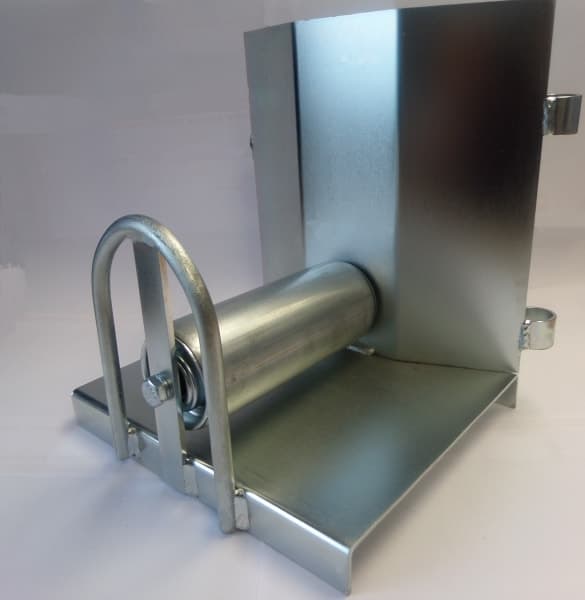

CR2 cable roller can be used singly or linked together with stake pins provided to form a continuous run – suitable for pulling cables up to 75mm diameter incorporating horizontal roller – including LV-HV power cables (11kV-33kV) – see the complete range of cable rollers for trench or duct.
- Height: 300mm
- Width: 230mm
- Length: 330mm
- Cable Roller Weight: 8kgs
Straight, bend, corner and bridge cable rollers are also available for cable installations into trench and Conduit Duct Rods for push-feeding and laying cables into duct.
Complete range of Cable Pulling Equipment for laying MV-HV underground 11kV and 33kV cables into trench or cable duct including cable drum jacks, cable socks, winches and trailers.
T&D, The Cable Pulling & Cable Laying Equipment Suppliers – power transmission products to enable installation of EHV onshore and offshore (inter-array and submarine) 66kV, 132kV, 275kV and 400kV cables
Cable Pulling & Laying Equipment
LV HV 11kV-33kV Cables
T&D also supply from stock Underground Cable Protection for LV-HV cables, this includes Centriforce Stokbord (33kV) and Tapetile (11kV) and Socomore cable lubricants for pulling and blowing power and fibre cables.
➡ See also: Cable Jointing & Terminating MV-HV Cables
