TND6-70 Mechanical Cable Crimping ToolÂ
Cembre TND6-70 TN Mechanical Crimping Tool is a professional crimping tool, designed for the compression of uninsulated terminals and electrical connectors for conductor sizes 6 – 70 mm² conductor.
The Cembre TND6-70 crimp tool is equipped with rotating dies with hexagonal imprint. It is compliant with DIN 480863 suitable to crimp copper lugs according to DIN 46235 and through connectors according to DIN 46267 T.1.
Cembre’s TND mechanical crimping tools are reliable with a guaranteed consistent, crimping operation and can be ordered from Thorne & Derrick – contact us for further information about crimping, jointing and termination of all types of LV MV HV cables.

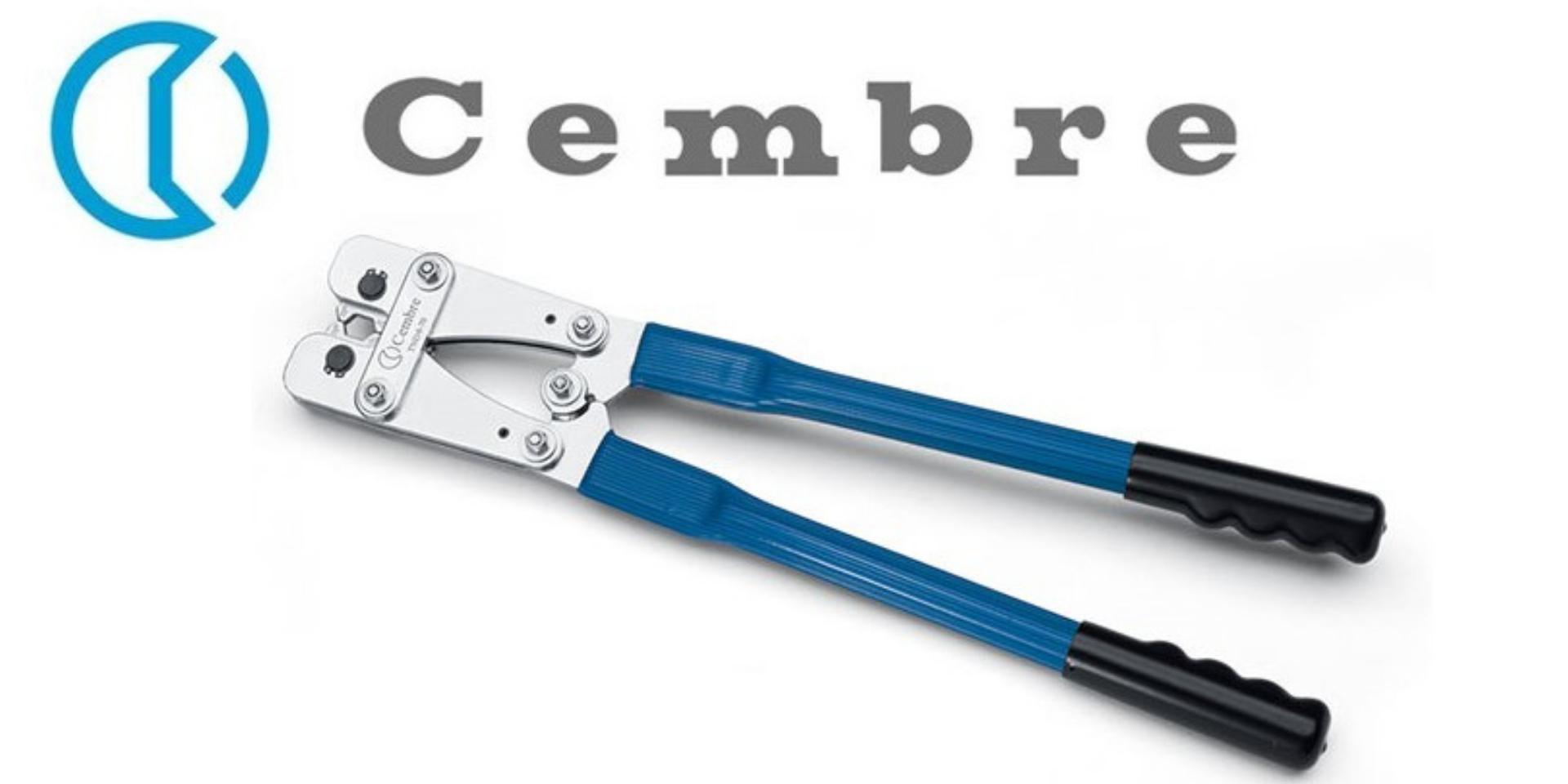

Cembre TND6-70 Tool
Technical Features
| Cembre Part Number | TND6-70 |
| Crimp Style |
 |
| Cable Crimping Range | Uninsulated terminals and connectors according to DIN46235 & DIN46267 T.1 for conductor sizes 6 to 70 sqmm. |
| Tool Length | 515mm |
| Tool Width | 132mm |
| Tool Height | 46mm |
| Tool Weight | 2kg |
The die positioning of the tool is easily adjustable by knurled screw and Vernier scale for reference.
Cembre TND6-70 & Cembre TND10-120
Cembre TND6-70 LV-HV Crimping Applications
The TND6-70 manual mechanical crimping tool is suitable for crimping Cembre copper lugs (A-M range) and non-insulated connectors (L-M and L-P ranges).
- A-M Copper Cable Lugs | rated up to 11kV for dry indoor applications
- L-M Copper Connectors | rated up to 11kV for dry indoor applications
*crimp lugs should be installed using suitably calibrated Cembre crimping tools
 For Cembre electrical connections, see Cable Crimps, Lugs & Connectors
Contact T&D to discuss crimping cables at MV-HV, including 11kV-33kV, to ensure correct Cembre tool, lug/splice and die set selection – visit battery crimping tools for repetitive crimping of cables without strain injury or worker fatigue.
