Cembre TNN70 Crimping Tools
LV-HV Cable Crimping Tools

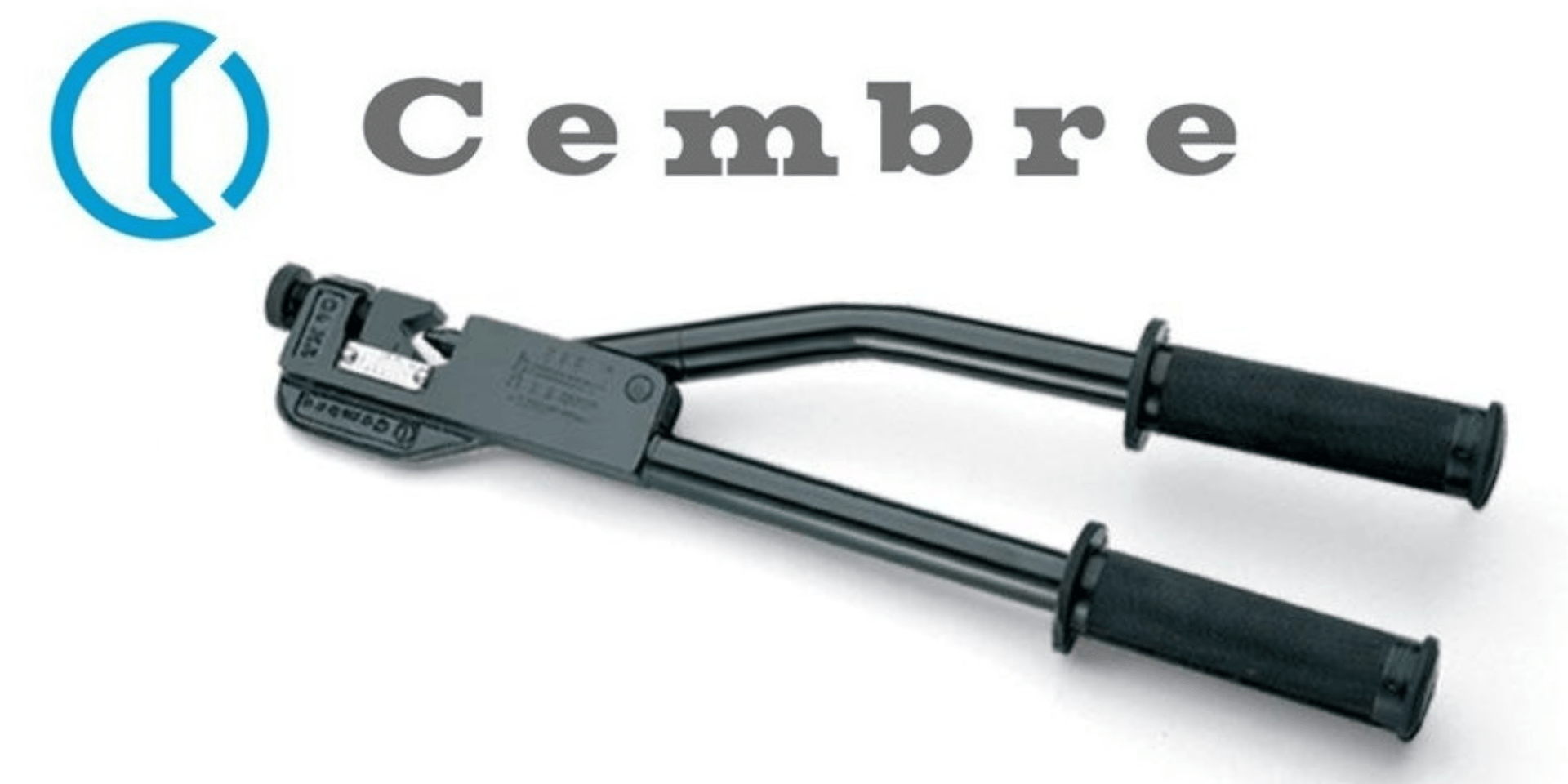

TNN70 Mechanical Cable Crimping ToolÂ
Cembre TNN70 TN Mechanical Crimping Tool is a professional crimping tool, designed for the compression of insulated terminals and electrical connectors for conductor sizes 10 – 70 mm². The Cembre TNN70 crimp tool is suitable for crimping wire terminals and PA 6.6 insulated connectors.
The Cembre TNN70 is constructed from high quality hardened steel with plastic grips for ease of operation and heat treated steel crimp jaws. TNN70 handles are made from anti-slip plastic with hilt for easy use.
Crimping tools with a versatile die enable the crimping of stranded copper conductors without resorting to the electrical contractor carrying multiple die sets. The die of the tool head is manually adjustable to suit the cable lug or splice size and crimping is complete with a single stroke manual action.
Cembre’s TN mechanical crimping tools are reliable with a guaranteed consistent, crimping operation and can be ordered from Thorne & Derrick – contact us for further information about crimping, jointing and termination of all types of LV MV HV cables.

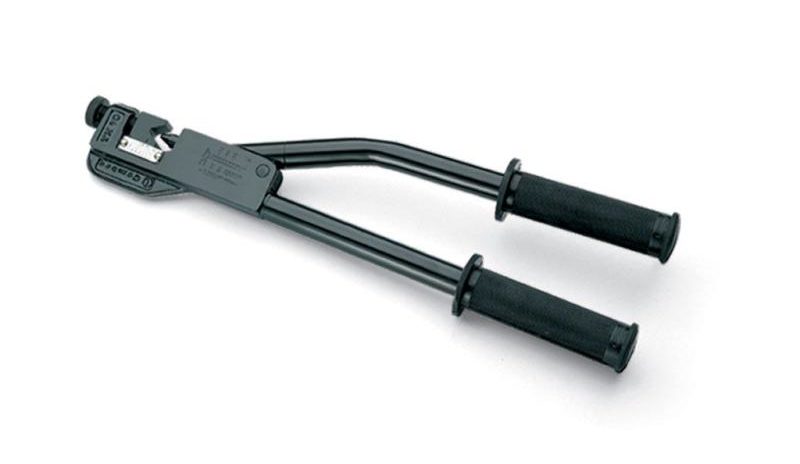

Cembre TNN70 Tool
Technical Features
| Cembre Part Number | TNN70 |
| Crimp Style |
 |
| Cable Crimping Range | insulated terminals and connectors for conductor sizes 10 F to 70 F sqmm |
| Tool Length | 450mm |
| Tool Width | 127mm |
| Tool Height | 47mm |
| Tool Weight | 2kg |
*F= Flexible Conductor
The die positioning of the tool is easily adjustable by knurled screw and Vernier scale for reference.
Material (body) – hardened steel
Material (moulded) – plastic grips
Cembre TNN70 LV-HV Crimping Applications
The TNN70 manual mechanical crimping tool is suitable for the crimping of wire terminals and PA 6.6 insulated connectors.
- KF-M Fully Reinforced PA 6.6 Insulated | Male Connectors
- KF-FM Fully Reinforced PA 6.6 Insulated | Male/Female Connectors
- KF-BM & KF-BF Reinforced PA 6.6 Insulated | Bullet & Socket Connectors
*crimp lugs should be installed using suitably calibrated Cembre crimping tools
 For Cembre electrical connections, see Cable Crimps, Lugs & Connectors
Contact T&D to discuss crimping cables at MV-HV, including 11kV-33kV, to ensure correct Cembre tool, lug/splice and die set selection – visit battery crimping tools for repetitive crimping of cables without strain injury or worker fatigue.
