CMP A2F100 Zone 2 Hazardous Area ATEX Cable Gland Ex e, Ex nR, Ex ta

CMP A2F100 Zone 2 Hazardous Area ATEX Cable Gland Ex e, Ex nR, Ex ta

CMP A2F100 Cable Gland

CMP A2F100 cable gland for terminating all types of unarmoured and braid type cables located in Zone 2 hazardous areas.

CMP A2F100 Cable Glands

  • Complies 100% with IEC 60079-0 cable retention requirements
  • No external cable clamping required
  • No special conditions for safe use
  • Displacement type flameproof seal
  • Deluge protected cable gland
  • -60ËšC to +130ËšC
  • Globally marked – hazardous area certified to IECEx & ATEX
  • Order Code: CMP A2F100** (Brass) Cable Gland

Hazardous Area Cable Glands

CMP A2F100 cable glands are certified by ATEX for safe glanding of cables in Zone 2 potentially explosive atmospheres according to the following hazardous area classification:

  • II 2G, II 1D Ex db IIC Gb, Ex eb IIC Gb, Ex ta IIIC Da
  • II 3G Ex nRc IIC Gc, I M2 Ex db I Mb, Ex eb I Mb

➡ See full range of CMP ATEX Cable Glands for unarmoured and braided cables- to view the complete range of CMP glands for Zone 1 & Zone 2 cable termination please visit Hazardous Area Cable Glands Zone 1 & Zone 2 locations.

cmp A2F100 Cable Glands specification

CMP A2F100 Cable Gland Material: Brass, Electroless Nickel Plated Brass, Aluminium, Stainless Steel

Cable Gland Design Specification: BS6121: Part 1: 1989, IEC 62444, EN 62444

The following table enables the selection of CMP A2F100 cable glands – should you need to discuss a specific application for hazardous area or high voltage cable applications please call T&D.

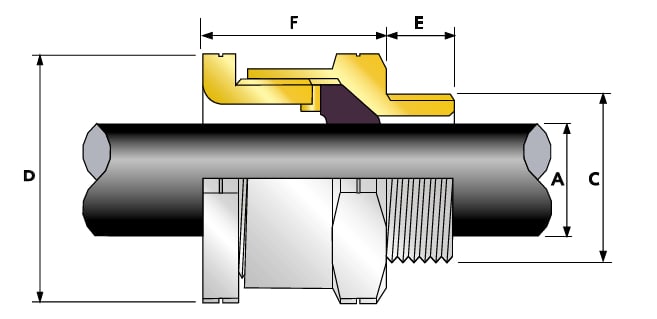

CMP Cable Gland Size Available Entry Threads “C” (Alternative Metric Thread Lengths Available Overall Cable Diameter “A” Across Flats “D” Across Corners “D” Protrusion Length “F” Combined Ordering Reference (Brass Metric) Cable Gland Shroud Cable Gland Weight (kgs)
Standard Option
Metric Thread Length (Metric) “E” NPT Thread Length (NPT) “E” NPT Min Max Max Max Max Size Type Ordering Suffix
A2F10016 M16 15.0 – – – 3.2 8.0 24.0 26.4 34.9 16 A2F100 1RA PVC04 0.07
A2F10020s16 M20 15.0 1/2″ 19.9 3/4″ 3.2 8.0 24.0 26.4 30.4 20S16 A2F100 1RA PVC04 0.08
A2F10020S M20 15.0 1/2″ 19.9 3/4″ 6.5 11.2 24.0 26.4 31.9 20S A2F100 1RA PVC04 0.07
A2F10020 M20 15.0 1/2″ 19.9 3/4″ 7.0 13.5 27.0 29.7 35.8 20 A2F100 1RA PVC05 0.08
A2F10020L M20 15.0 1/2″ 19.9 3/4″ 8.7 14.0 27.0 29.7 34.3 20L A2F100 1RA PVC05 0.08
A2F10025 M25 15.0 3/4″ 20.2 1″ 11.5 19.5 36.0 39.6 40.4 25 A2F100 1RA PVC09 0.16
A2F10025L M25 15.0 3/4″ 20.2 1″ 14.0 20.0 36.0 39.6 39.9 25L A2F100 1RA PVC09 0.16
A2F10032 M32 15.0 1″ 25.0 1 1/4″ 19.0 25.5 41.0 45.1 38.5 32 A2F100 1RA PVC10 0.19
A2F10032L M32 15.0 1″ 25.0 1 1/4″ 20.2 26.3 41.0 45.1 35.5 32L A2F100 1RA PVC10 0.19
A2F10040 M40 15.0 1 1/4″ 25.6 1 1/2″ 25.0 32.2 50.0 55.0 38.8 40 A2F100 1RA PVC13 0.25
A2F10050S M50 15.0 1 1/2″ 26.1 2″ 31.0 38.2 55.0 60.5 41.4 50S A2F100 1RA PVC15 0.33
A2F10050 M50 15.0 2″ 26.9 2 1/2″ 35.6 44.0 60.0 66.0 45.8 50 A2F100 1RA PVC18 0.35
A2F10063S M63 15.0 2″ 26.9 2 1/2″ 41.5 49.9 70.5 77.6 43.3 63S A2F100 1RA PVC21 0.56
A2F10063 M63 15.0 2 1/2″ 39.9 3″ 48.2 54.9 75.0 82.5 43.6 63 A2F100 1RA PVC23 0.55
A2F10075S M75 15.0 2 1/2″ 39.9 3″ 54.0 61.9 84.0 92.4 45.4 75S A2F100 1RA PVC24 0.73
A2F10075 M75 15.0 3″ 41.5 3 1/2″ 61.1 67.9 84.0 92.4 49.0 75 A2F100 1RA PVC26 0.58
A2F10090 M90 24.0 3 1/2″ 42.8 4″ 66.6 79.9 108.0 118.8 66.0 90 A2F100 1RA PVC31 1.71
A2F100100 M100 24.0 3 1/2″ 42.8 4″ 76.0 89.0 123.0 135.3 72.2 100 A2F100 1RA LSF33 2.26
A2F100115 M115 24.0 4″ 44.0 5″ 86.0 97.9 133.4 146.7 67.9 115 A2F100 1RA LSF34 2.74
A2F100130 M130 24.0 5″ 46.8 – 97.0 114.9 152.4 167.6 81.1 130 A2F100 1RA LSF35 4.07

CMP A2F100 Cable Gland

CMP A2F100 Zone 2 Hazardous Area ATEX Cable Gland Ex e, Ex nR, Ex ta

A2f100 Cable Glands CMP

CMP Cable Glands

CMP Cable Glands – cable terminations for Industrial, High Voltage, Hazardous Area Explosive Atmospheres (ATEX & IECEx) & Group 1 Mining Cables  – including CIEL High Fault Current, SOLO Low Smoke Zero Halogen, ZEN Insulated & RapidEx Barrier Cable glands
