CMP A2FRC Zone 2 Hazardous Area ATEX Cable Gland Ex e, Ex d, Ex nR, Ex ta

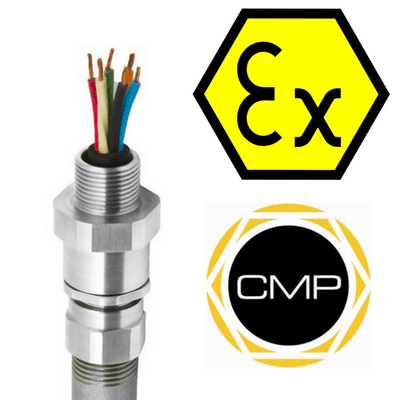

CMP A2FRC Cable Gland

CMP A2FRC cable gland for terminating all types of unarmoured and braid type cables housed in conduit located in Zone 2 hazardous areas.

CMP A2FRC Cable Glands

Designed for rigid & flexible conduits
Easy install running coupler design
Displacement type flameproof seal
-60˚C to +130˚C
Globally marked – hazardous area certified to IECEx & ATEX & CSA
Order Code: CMP A2FRC** (Brass) Cable Gland

Hazardous Area Cable Glands

CMP A2FRC cable glands are certified by ATEX for safe glanding of cables in Zone 2 potentially explosive atmospheres according to the following hazardous area classification:

II 2G II 1D Ex d IIC Gb, Ex e IIC Gb, Ex ta IIIC Da , II 3G Ex nR IIC Gc

➡ See full range of CMP ATEX Cable Glands for unarmoured and braided cables- to view the complete range of CMP glands for Zone 1 & Zone 2 cable termination please visit Hazardous Area Cable Glands Zone 1 & Zone 2 locations.

cmp A2fRC Cable Glands specification

CMP A2FRC Cable Gland Material: Brass, Electroless Nickel Plated Brass, Aluminium, Stainless Steel

Cable Gland Design Specification: BS6121: Part 1: 1989, IEC 62444, EN 62444

The following table enables the selection of CMP A2FRC cable glands – should you need to discuss a specific application for hazardous area or high voltage cable applications please call T&D.

CMP Cable Gland Size	Available Entry Threads “C” (Alternative Metric Thread Lengths Available					Standard Female Connection Thread “G”	Overall Cable Diameter “A”		Across Flats “D”	Across Corners “D”	Protrusion Length “F”	Combined Ordering Reference (Brass Metric)			Cable Gland Shroud	Cable Gland Weight (kgs)
	Standard				Option		Overall Cable Diameter “A”		Across Flats “D”	Across Corners “D”	Protrusion Length “F”	Combined Ordering Reference (Brass Metric)
	Metric	Thread Length (Metric) “E”	NPT	Thread Length (NPT) “E”	NPT		Min	Max	Max	Max	Max	Size	Type	Ordering Suffix
A2FRC20s16	M20	15.0	1/2″	19.9	3/4″	M20	3.2	8.7	24.0	26.4	46.9	20S16	A2FRC	1RA	PVC04	0.11
A2FRC20S	M20	15.0	1/2″	19.9	3/4″	M20	6.1	11.7	24.0	26.4	46.1	20S	A2FRC	1RA	PVC04	0.11
A2FRC20	M20	15.0	1/2″	19.9	3/4″	M20	6.5	14.0	27.0	29.7	47.9	20	A2FRC	1RA	PVC05	0.11
A2FRC25	M25	15.0	3/4″	20.2	1″	M25	11.1	20.0	36.0	39.6	56.1	25	A2FRC	1RA	PVC09	0.20
A2FRC32	M32	15.0	1″	25.0	1 1/4″	M32	17.0	26.3	41.0	45.1	55.5	32	A2FRC	1RA	PVC10	0.24
A2FRC40	M40	15.0	1 1/4″	25.6	1 1/2″	M40	23.5	32.2	50.0	55.0	57.7	40	A2FRC	1RA	PVC13	0.33
A2FRC50S	M50	15.0	1 1/2″	26.1	2″	M50	31.0	38.2	55.0	60.5	59.1	50S	A2FRC	1RA	PVC15	0.43
A2FRC50	M50	15.0	2″	26.9	2 1/2″	M50	35.6	44.0	60.0	66.0	64.3	50	A2FRC	1RA	PVC18	0.44
A2FRC63S	M63	15.0	2″	26.9	2 1/2″	M63	41.5	49.9	70.5	77.6	61.6	63S	A2FRC	1RA	PVC21	0.72
A2FRC63	M63	15.0	2 1/2″	39.9	3″	M63	47.2	55.9	75.0	82.5	71.0	63	A2FRC	1RA	PVC23	0.64
A2FRC75S	M75	15.0	2 1/2″	39.9	3″	M75	54.0	61.9	84.0	92.4	70.1	75S	A2FRC	1RA	PVC24	0.96
A2FRC75	M75	15.0	3″	41.5	3 1/2″	M75	61.1	67.9	84.0	92.4	73.2	75	A2FRC	1RA	PVC26	0.86
A2FRC90	M90	24.0	3 1/2″	42.8	4″	M90	66.6	79.9	108.0	118.8	106.3	90	A2FRC	1RA	PVC31	2.25
A2FRC100	M100	24.0	3 1/2″	42.8	4″	M100	76.0	91.0	123.0	135.3	115.8	100	A2FRC	1RA	LSF33	3.86
A2FRC115	M115	24.0	4″	44.0	5″	M115	86.0	97.9	133.4	146.7	67.3	115	A2FRC	1RA	LSF34	4.50
A2FRC130	M130	24.0	5″	46.8	–	M130	97.0	114.9	152.4	167.6	74.7	130	A2FRC	1RA	LSF35	4.77

CMP A2FRC Cable Gland

A2FRC Cable Glands CMP

CMP Cable Glands – cable terminations for Industrial, High Voltage, Hazardous Area Explosive Atmospheres (ATEX & IECEx) & Group 1 Mining Cables – including CIEL High Fault Current, SOLO Low Smoke Zero Halogen, ZEN Insulated & RapidEx Barrier Cable glands
